Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Washer Fluid Level Switch

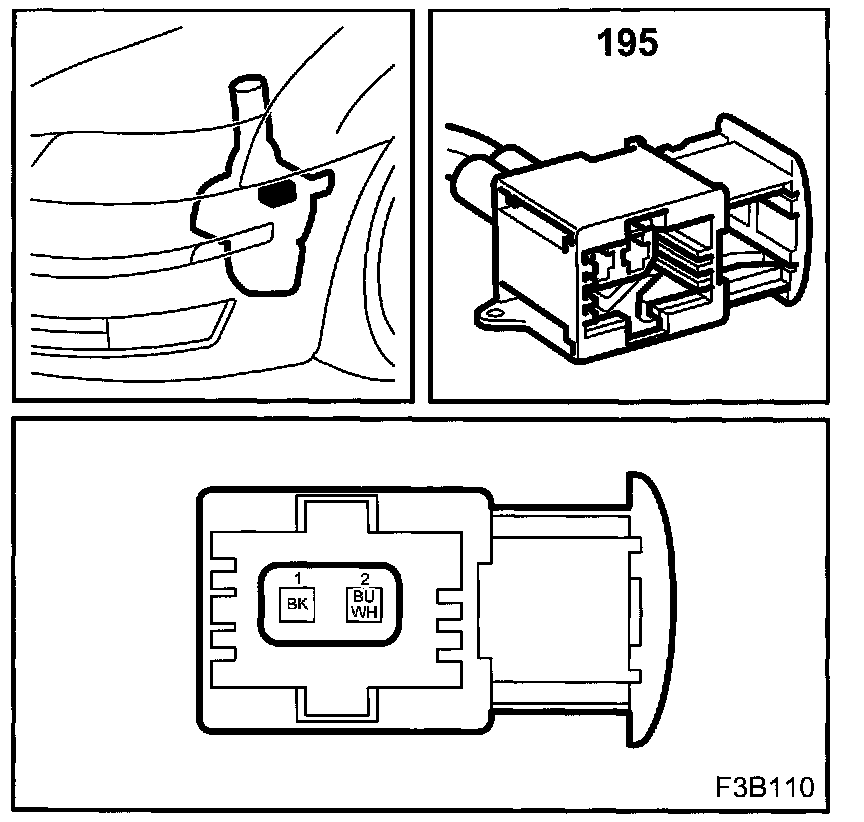

Washer Fluid Level Switch



Location: on washer fluid reservoir in the left wheel housing


Washer Fluid Level Switch (195):
