9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk / Liftgate
>>
Power Trunk / Liftgate Lock Actuator
>>

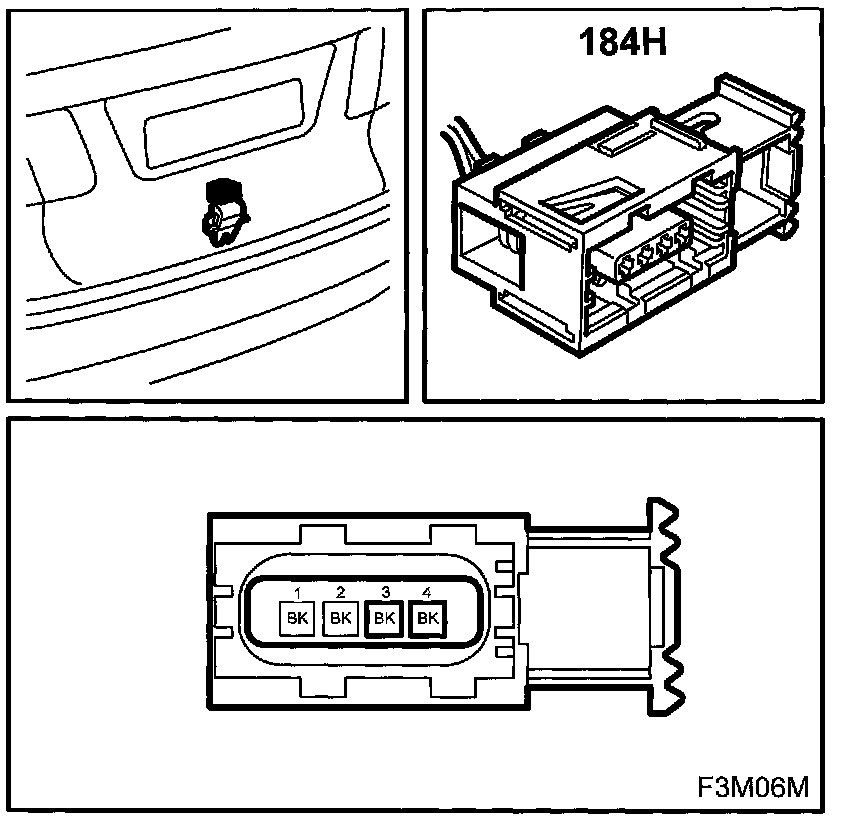

Bootlid Central Locking System Motor (184H)
Bootlid Central Locking System Motor (184H)
Location:
in the central locking system
Bootlid Central Locking System Motor (184H):
