Seat Connectors In Numeric Order
>>
357a
>>
Sedan
Sedan
Location:
in the seat under the
seat cushion

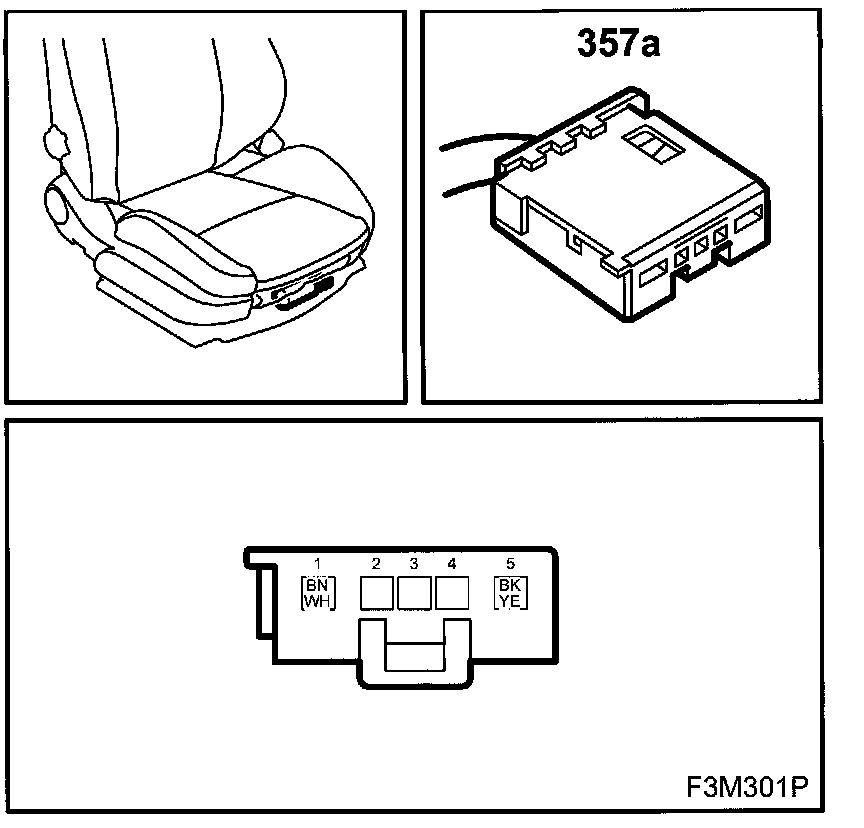

4D LH
Motor, Length Adjustment, Electrically Operated Seat (357a):

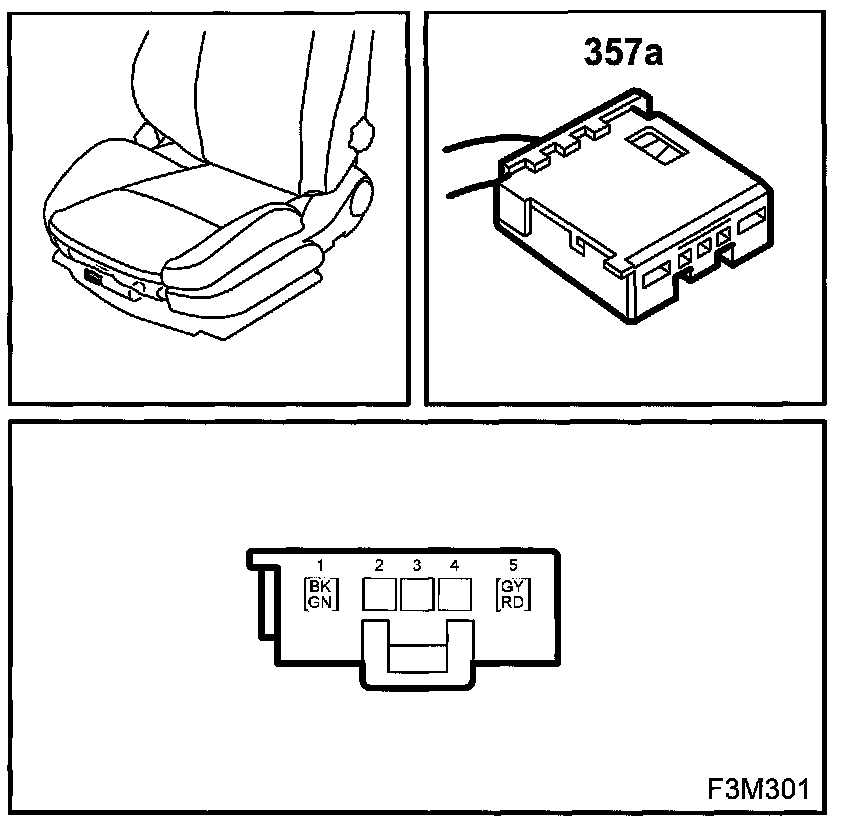

4D RH
Motor, Length Adjustment, Electrically Operated Seat (357a):
