9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
System Diagram
>>
Seat Connectors In Numeric Order
>>
357Df
>>
Convertible
Convertible
Location:
on the motor shaft

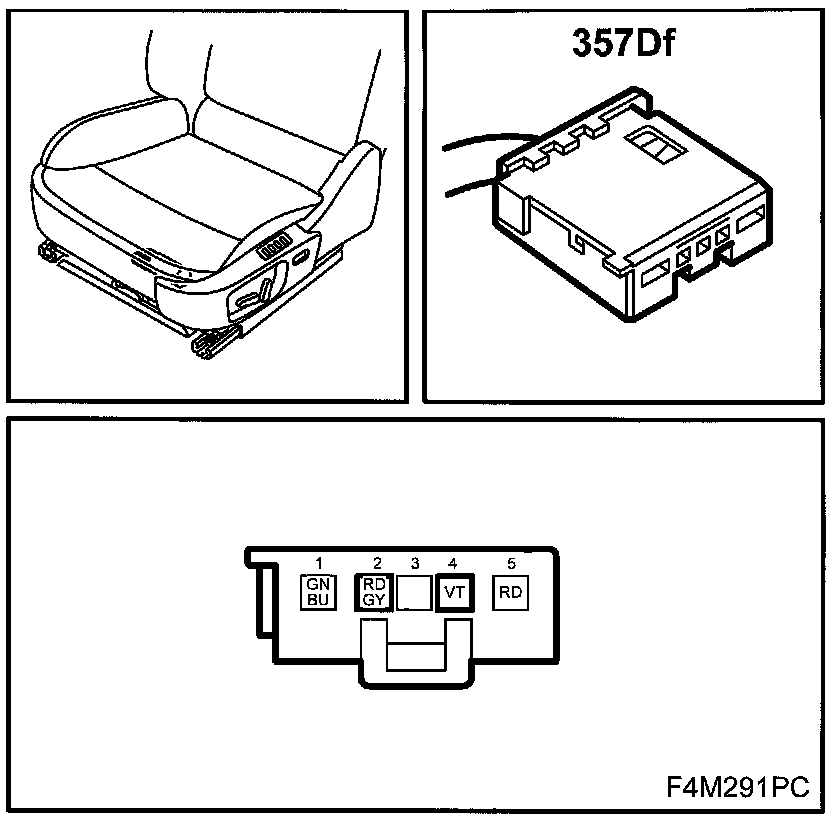

CV LH
Position Sensor, Rake Adjustment, Electrically Operated Driver's Seat With Memory (357Df):

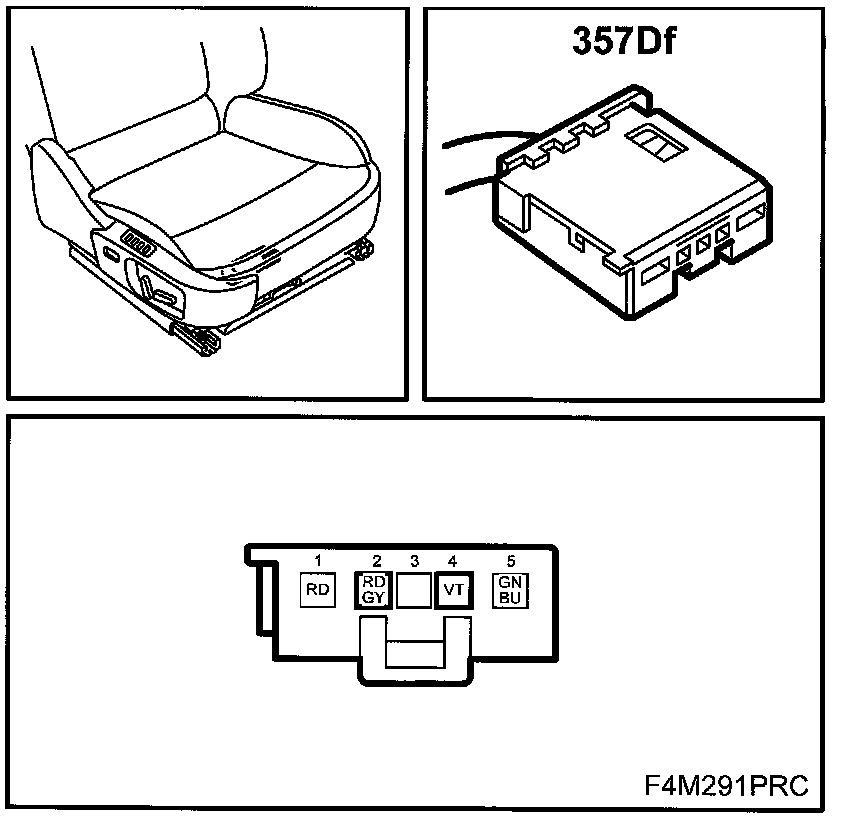

CV RH
Position Sensor, Rake Adjustment, Electrically Operated Driver's Seat With Memory (357Df):
