9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
System Diagram
>>
Driver's Side Without Memory
>>
Power Seat Switch
>>
Convertible
Convertible
Location:
on the outside of the seat towards the door

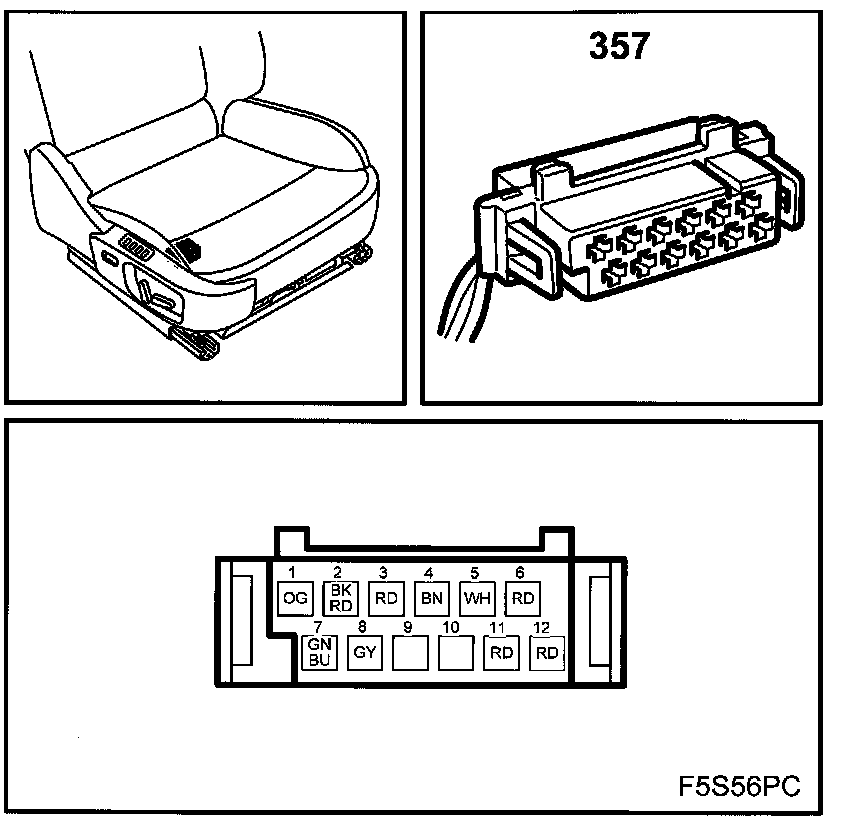

CV LH
Switch, Power Seat (357):

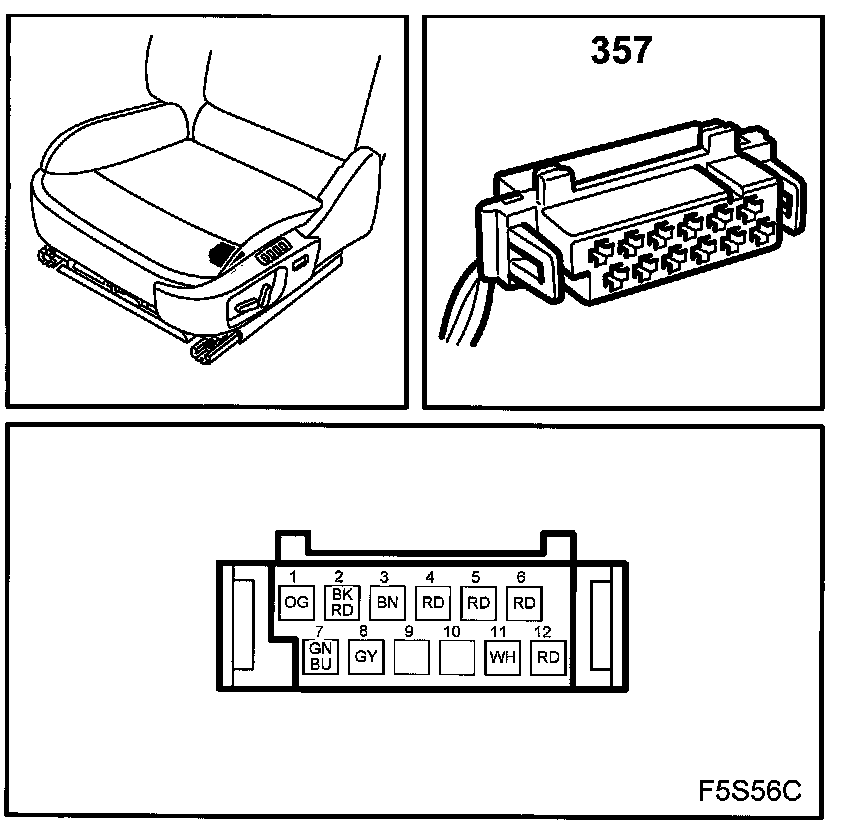

CV RH
Switch, Power Seat (357):
