Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Switch >> Switch, Electrically Adjustable Driver's Seat With Memory (357D)

Switch, Electrically Adjustable Driver's Seat With Memory (357D)



Switch, Electrically Adjustable Driver's Seat With Memory (357D)

Location: on the outside of the seat towards the door

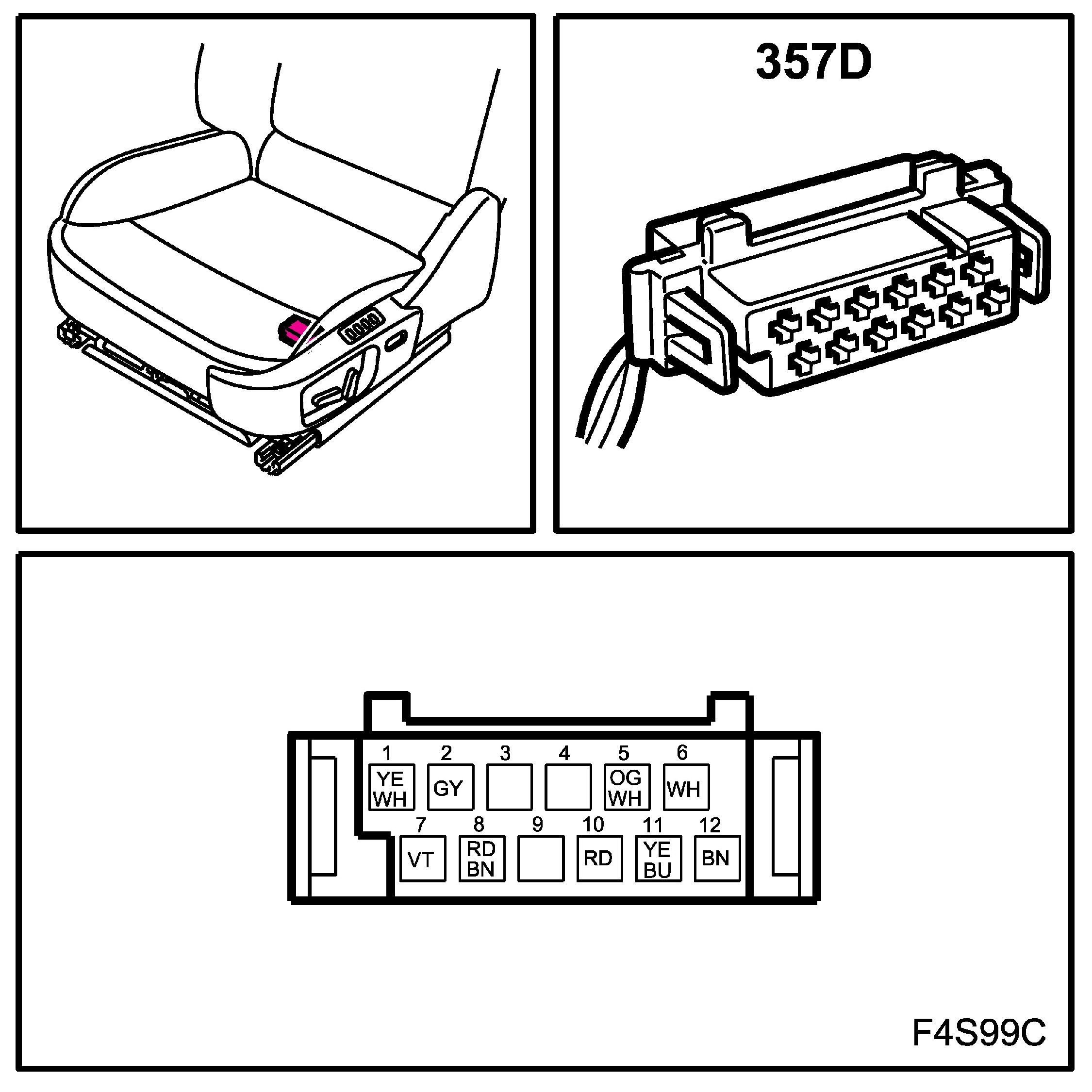

4D LH

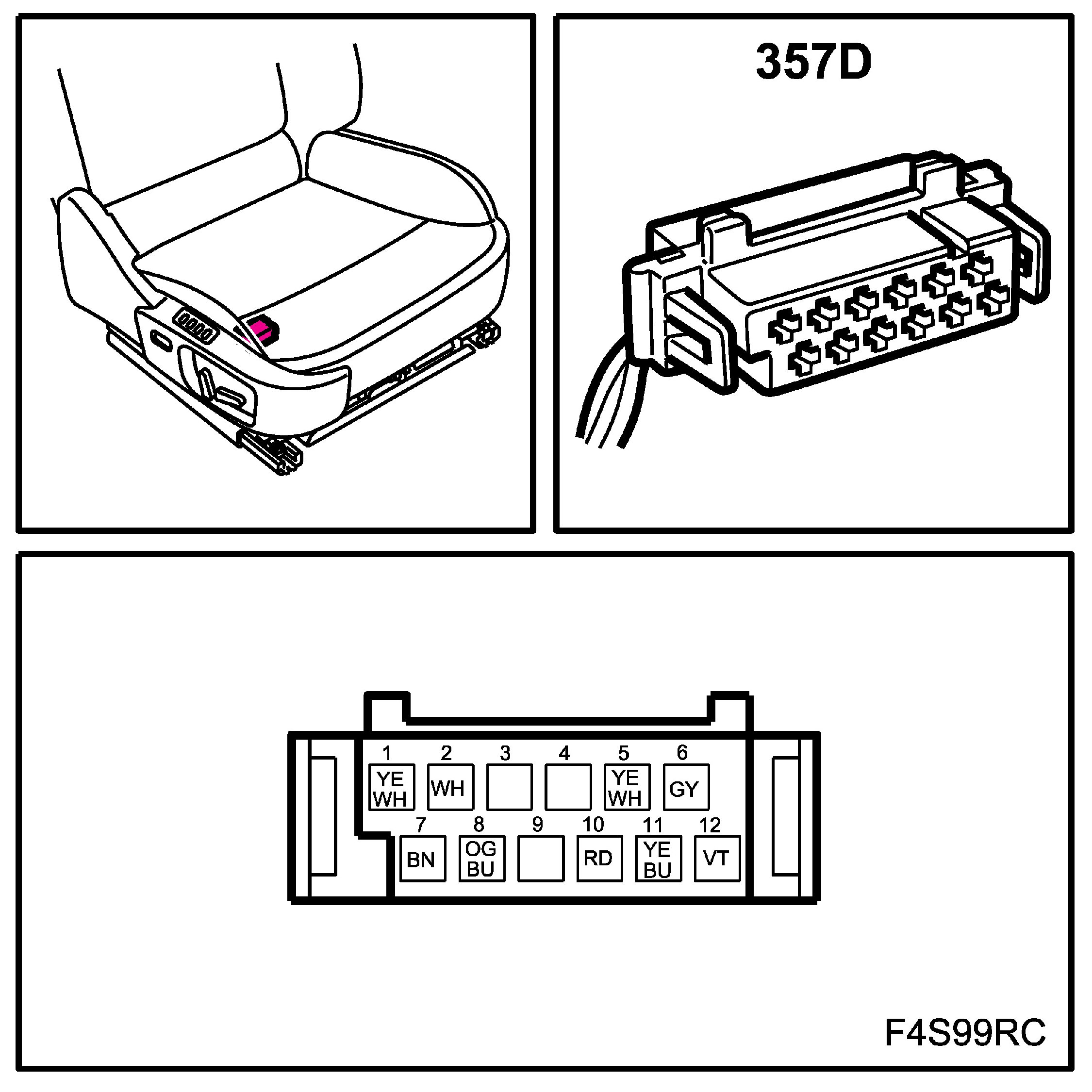

4D RH

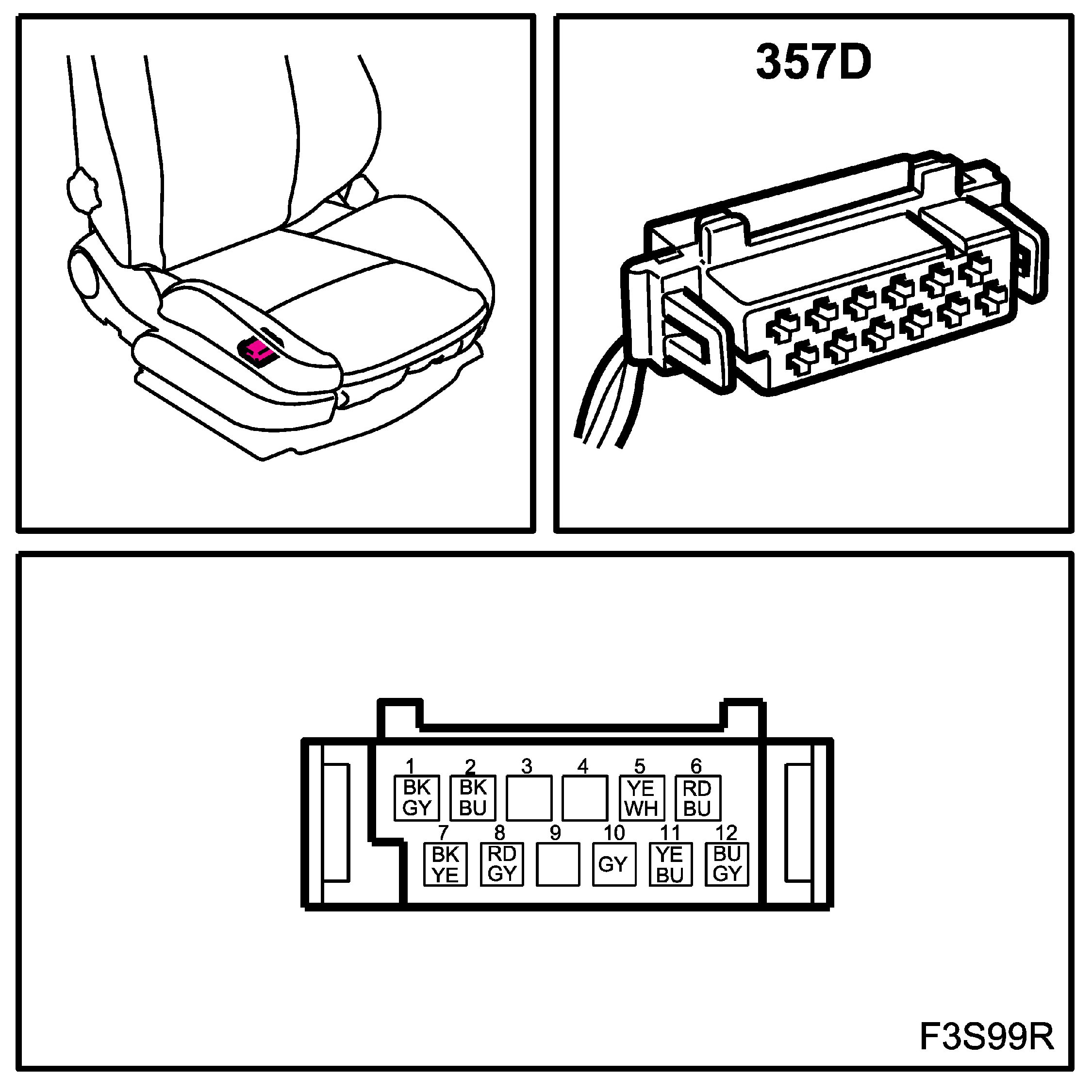

CV LH







CV RH
