Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Switch >> Memory Switch, Electrically Operated Driver's Seat With Memory (357Dj)

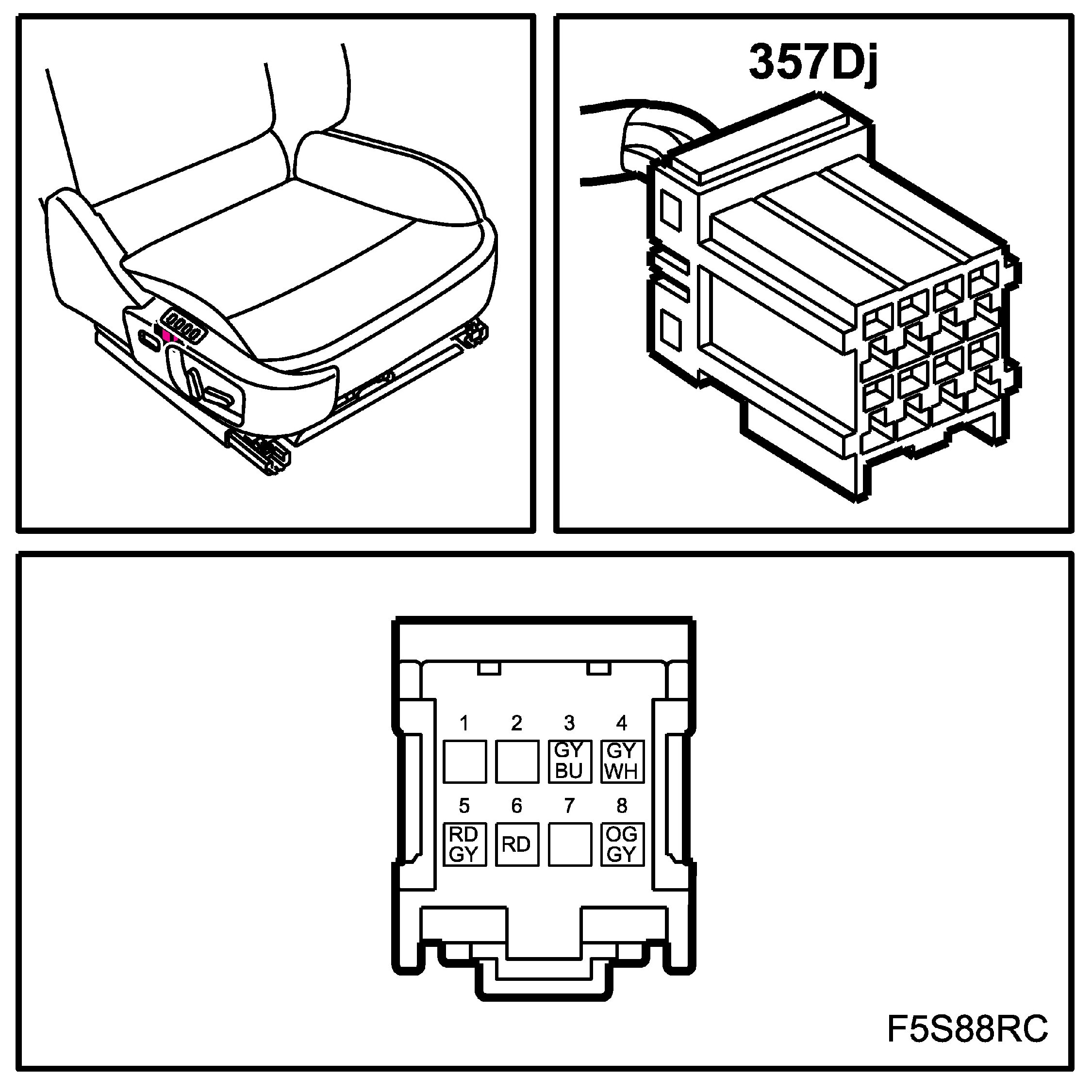

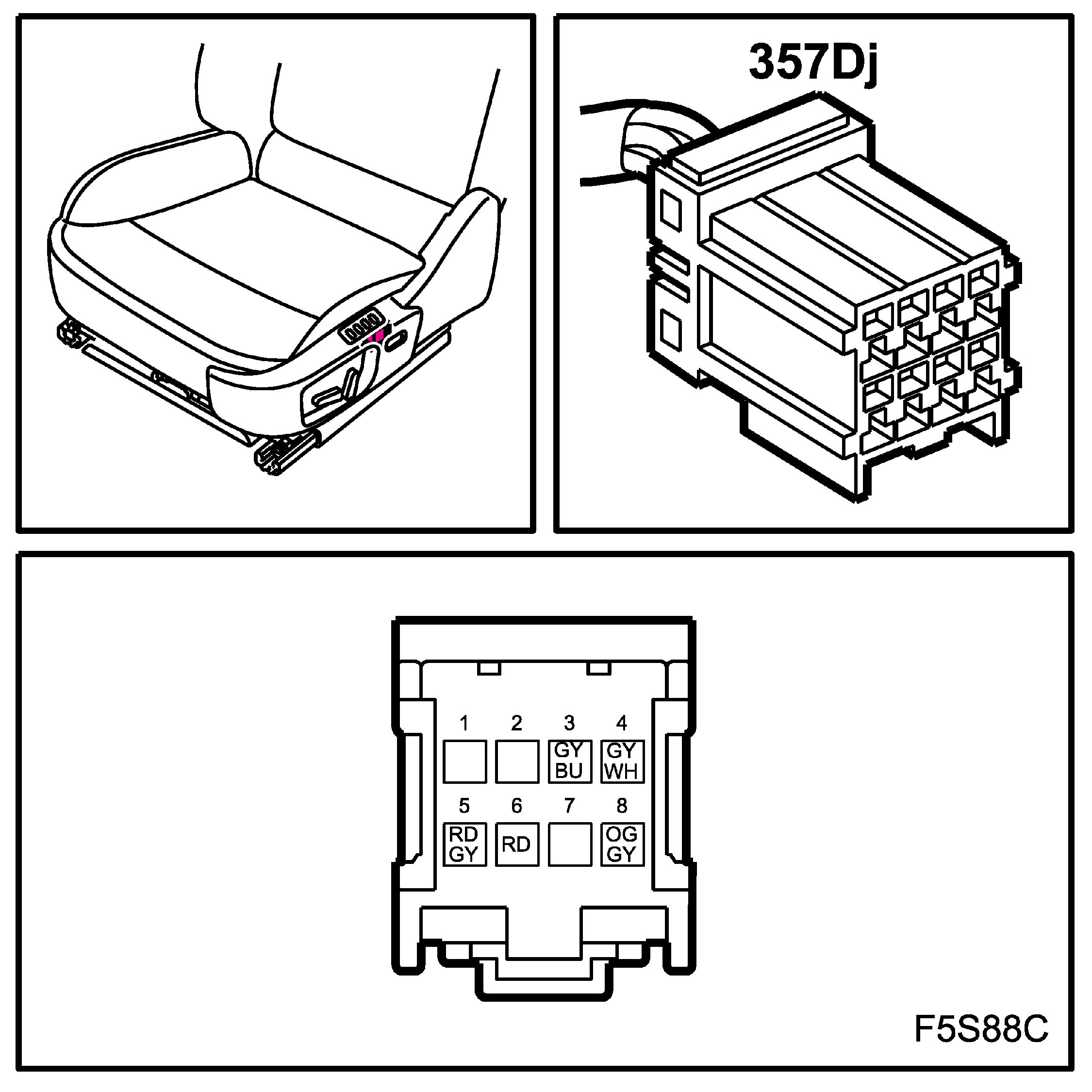

Memory Switch, Electrically Operated Driver's Seat With Memory (357Dj)



Memory Switch, Electrically Operated Driver's Seat With Memory (357Dj)

Location: on the outside of the seat towards the door

4D LH







4D RH







CV LH







CV RH
