Motor, Length Adjustment, Electrically Operated Driver's Seat With Memory (357Da)



Motor, Length Adjustment, Electrically Operated Driver's Seat With Memory (357Da)

Location: in the seat under the seat cushion

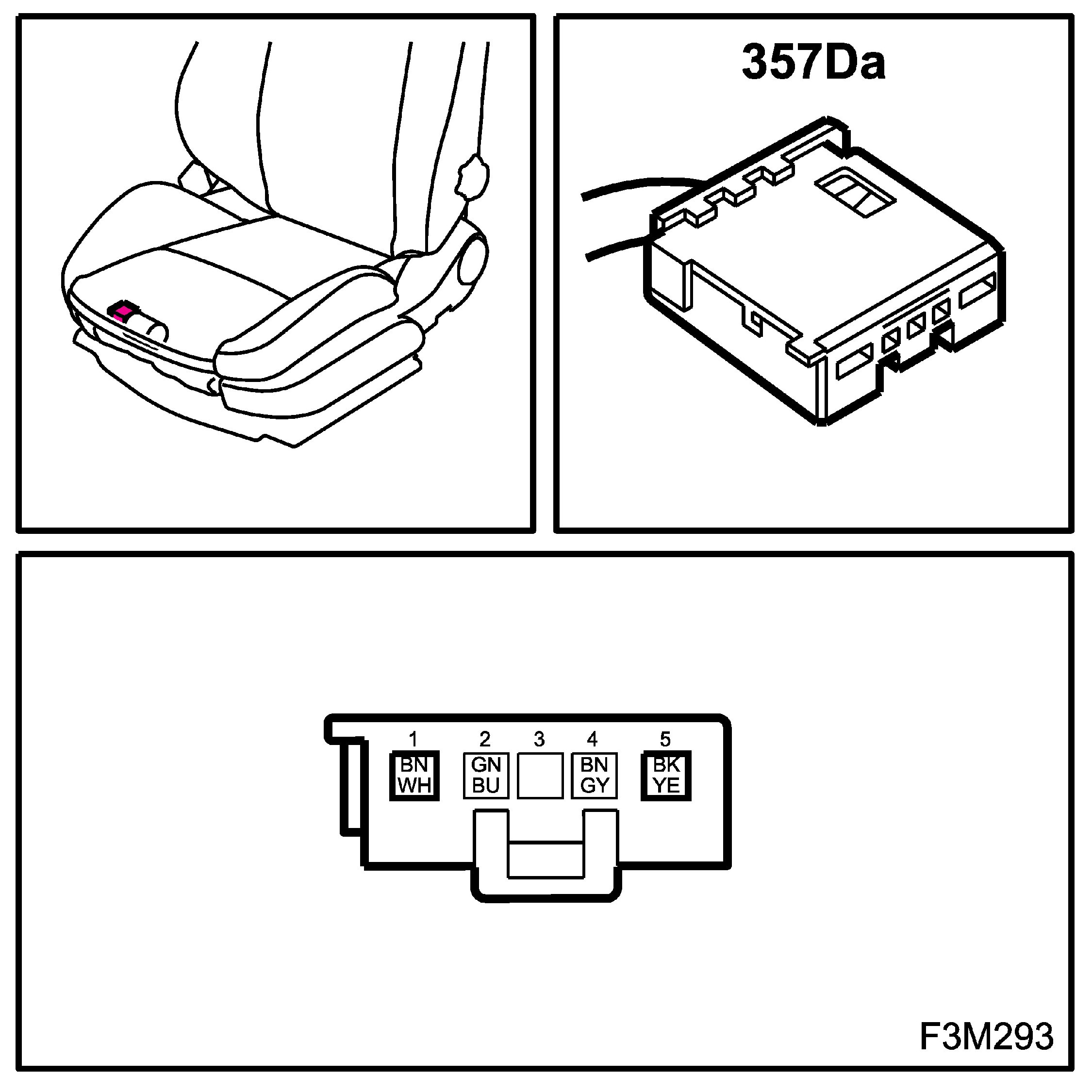

4D LH

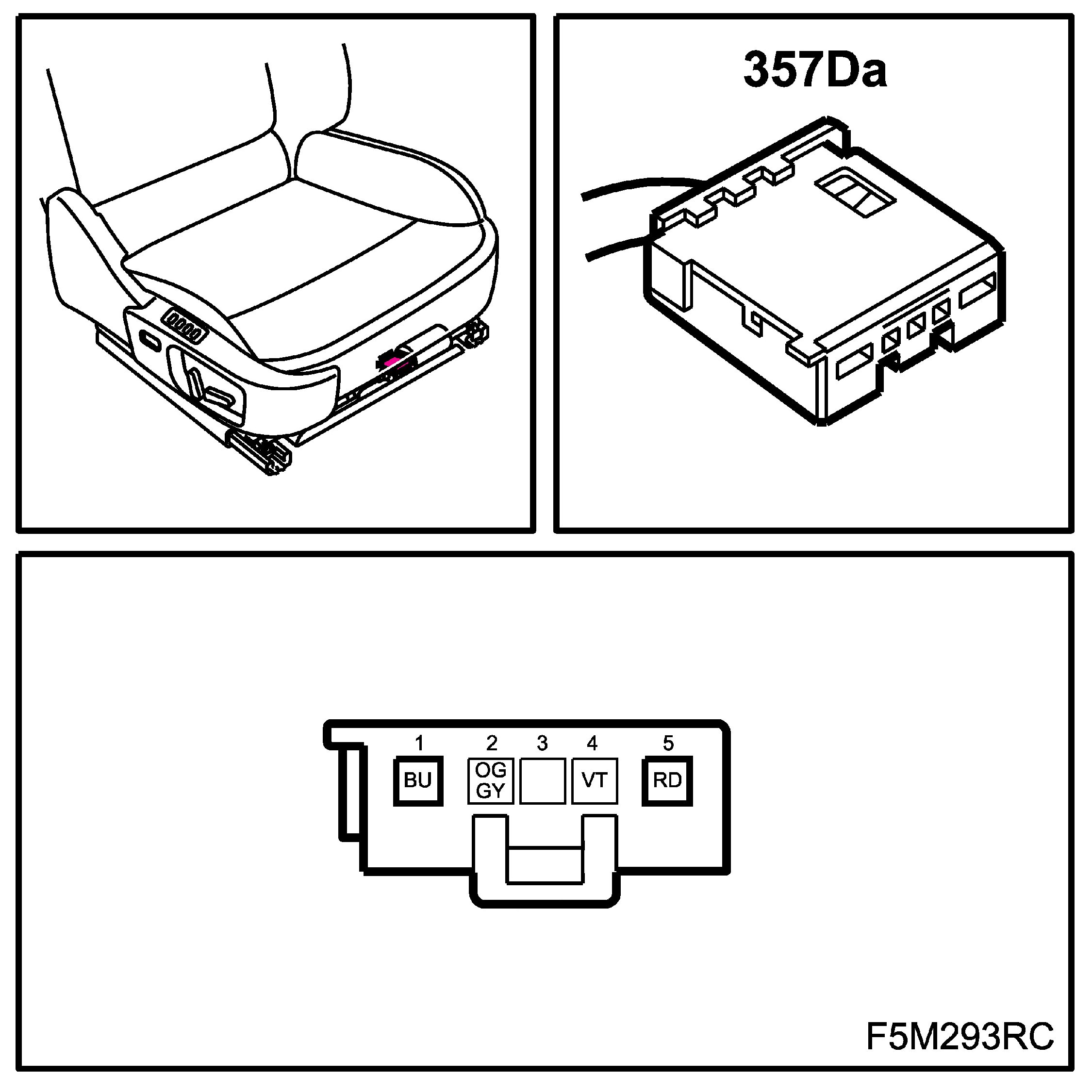

4D RH

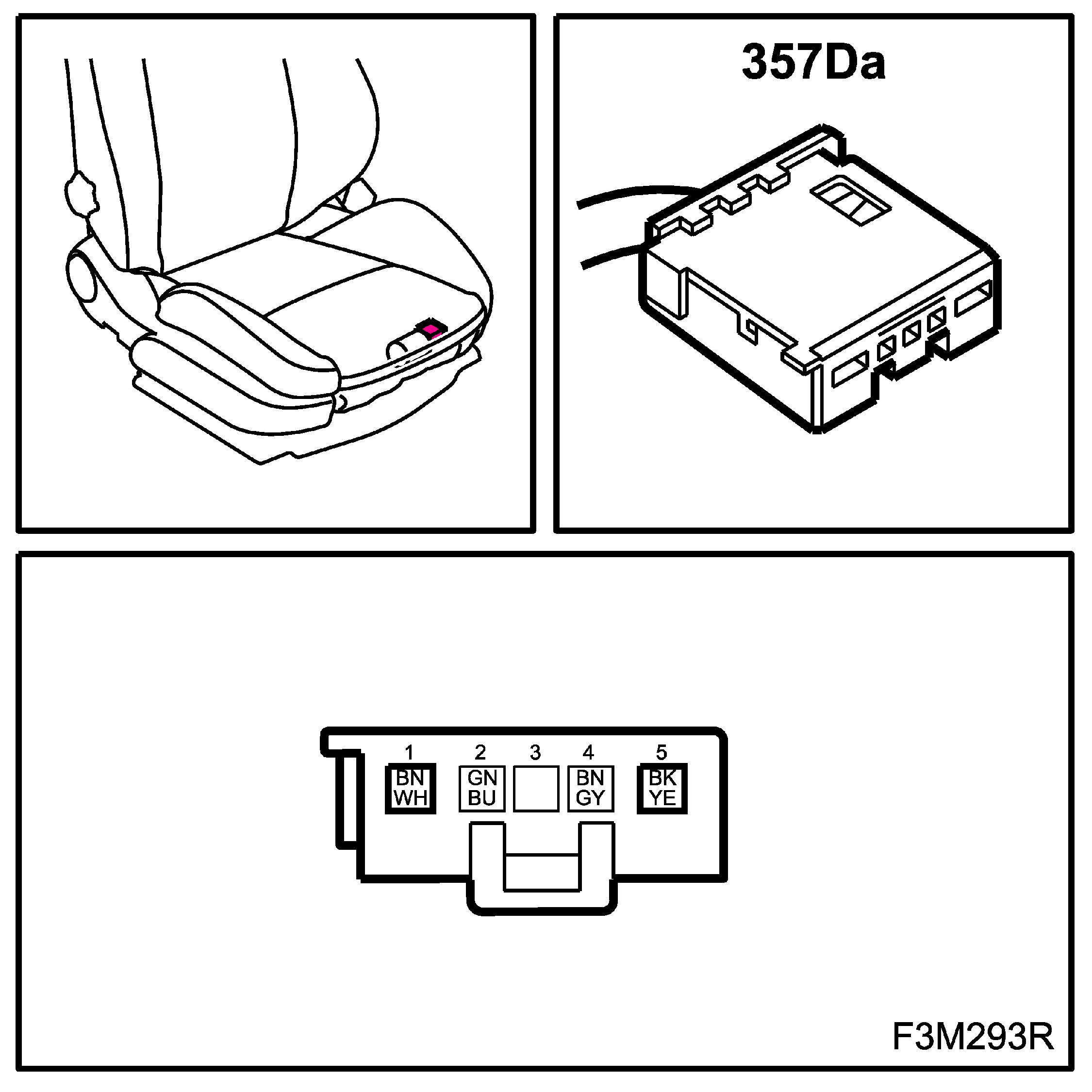

CV LH

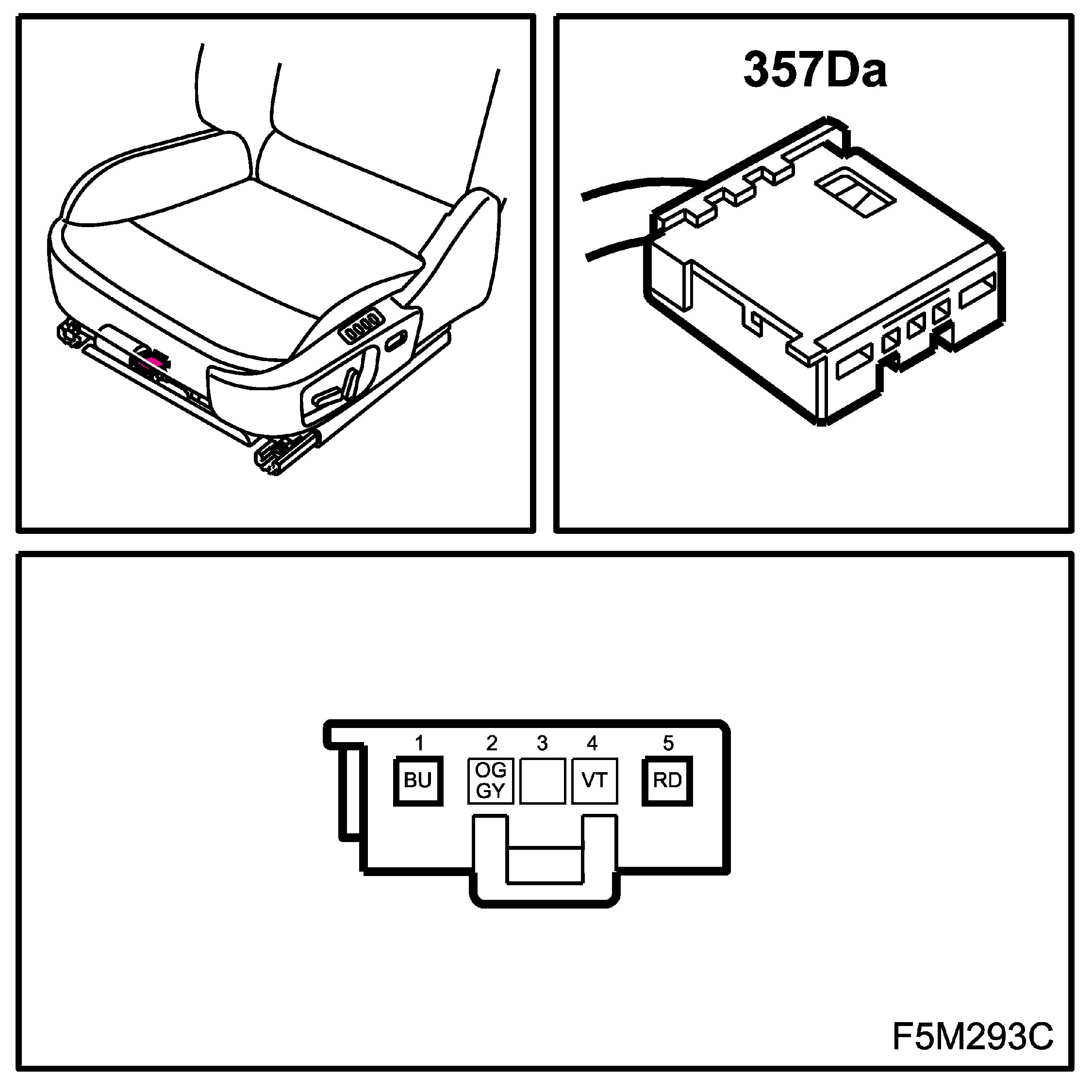

CV RH
