Saab
>>
2005
>>
9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Speaker
>>

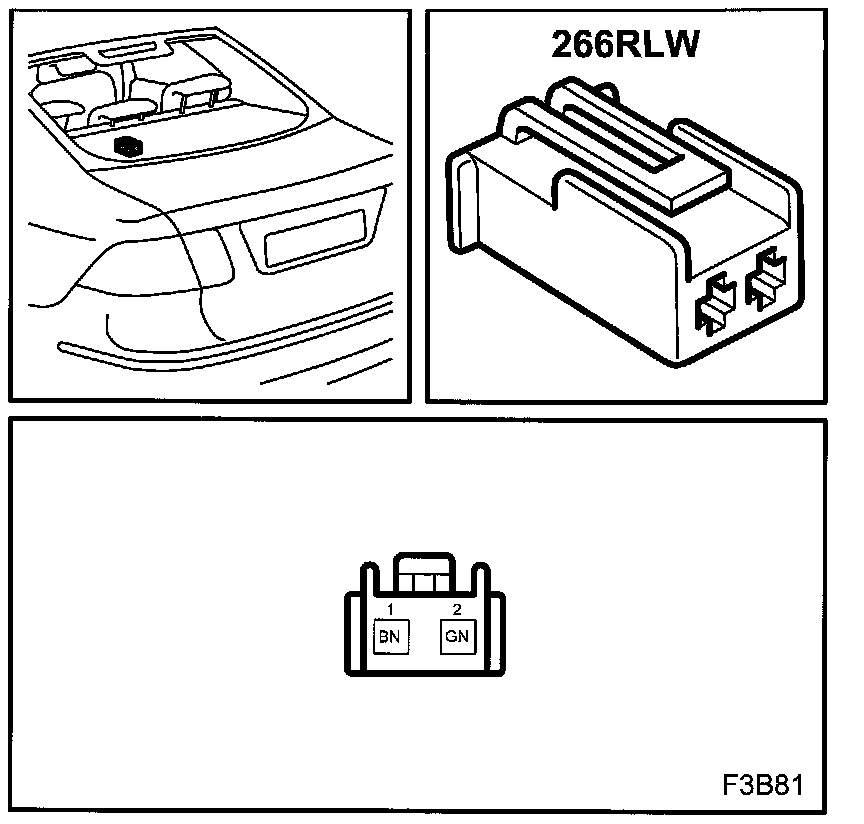

Speaker, Woofer, Rear, LH (266RLW)
>>
Sedan
Sedan
Location:
to the left in the parcel shelf
4D
Speaker, Woofer, Rear, LH (266RLW):
