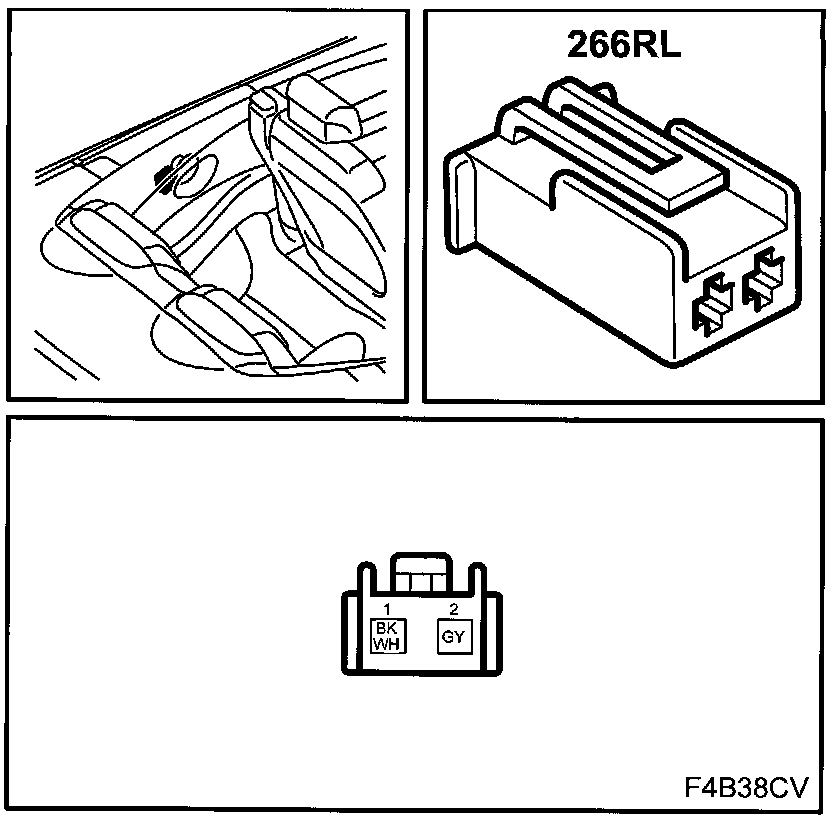

Speaker, Rear, LH (266RL)
>>
Convertible
Convertible
Location:
to the left in the parcel shelf
CV
Speaker, Rear, LH (266RL):
