9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Compact Disc Player (CD)
>>
System Diagram
System Diagram

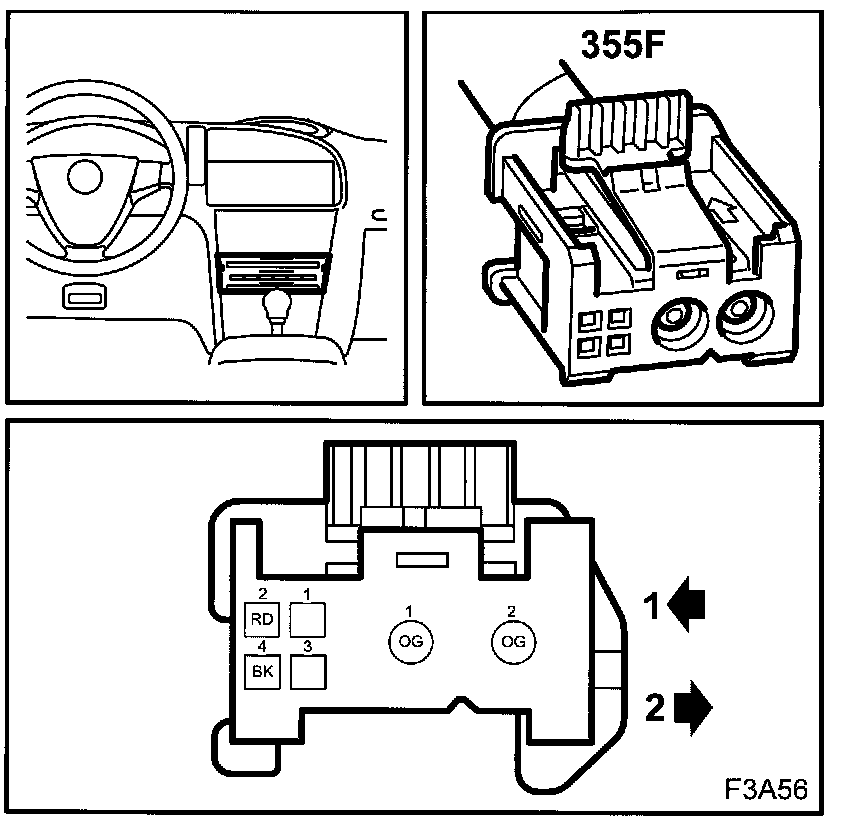

Location:
lowest in the centre of the dashboard
Front CD Player/changer (355F):
