Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> Amplifier, Sound System >> Amplifier, Front Speaker (354F) >> Convertible

Convertible



Location: under the LH seat

CV

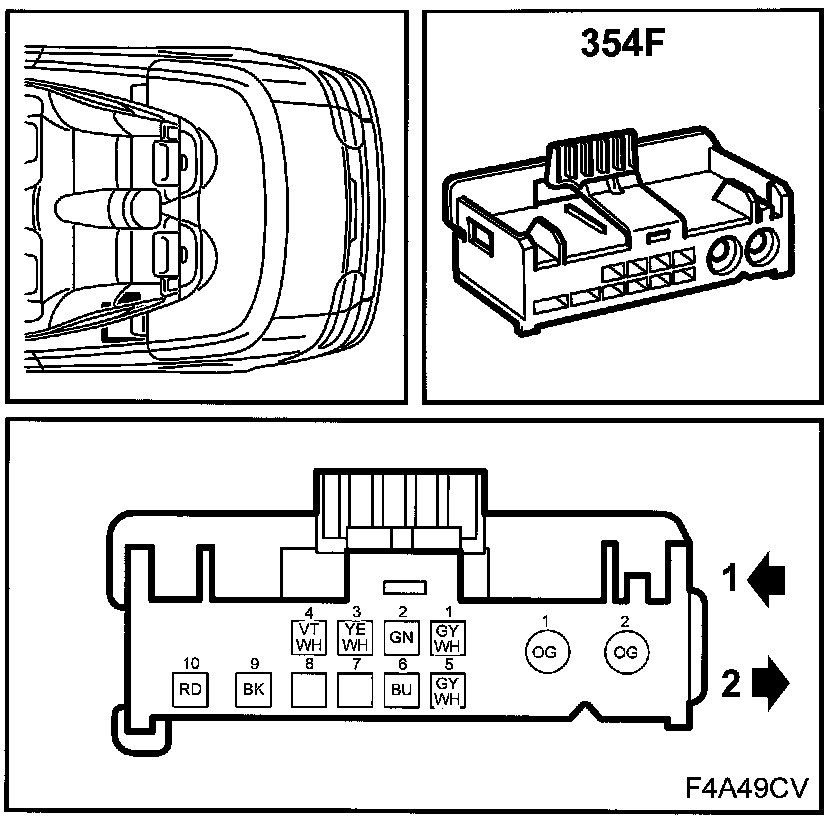

Amplifier, Front Speaker (354F):
