Saab
>>
2005
>>
9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
>>
System Diagram
>>

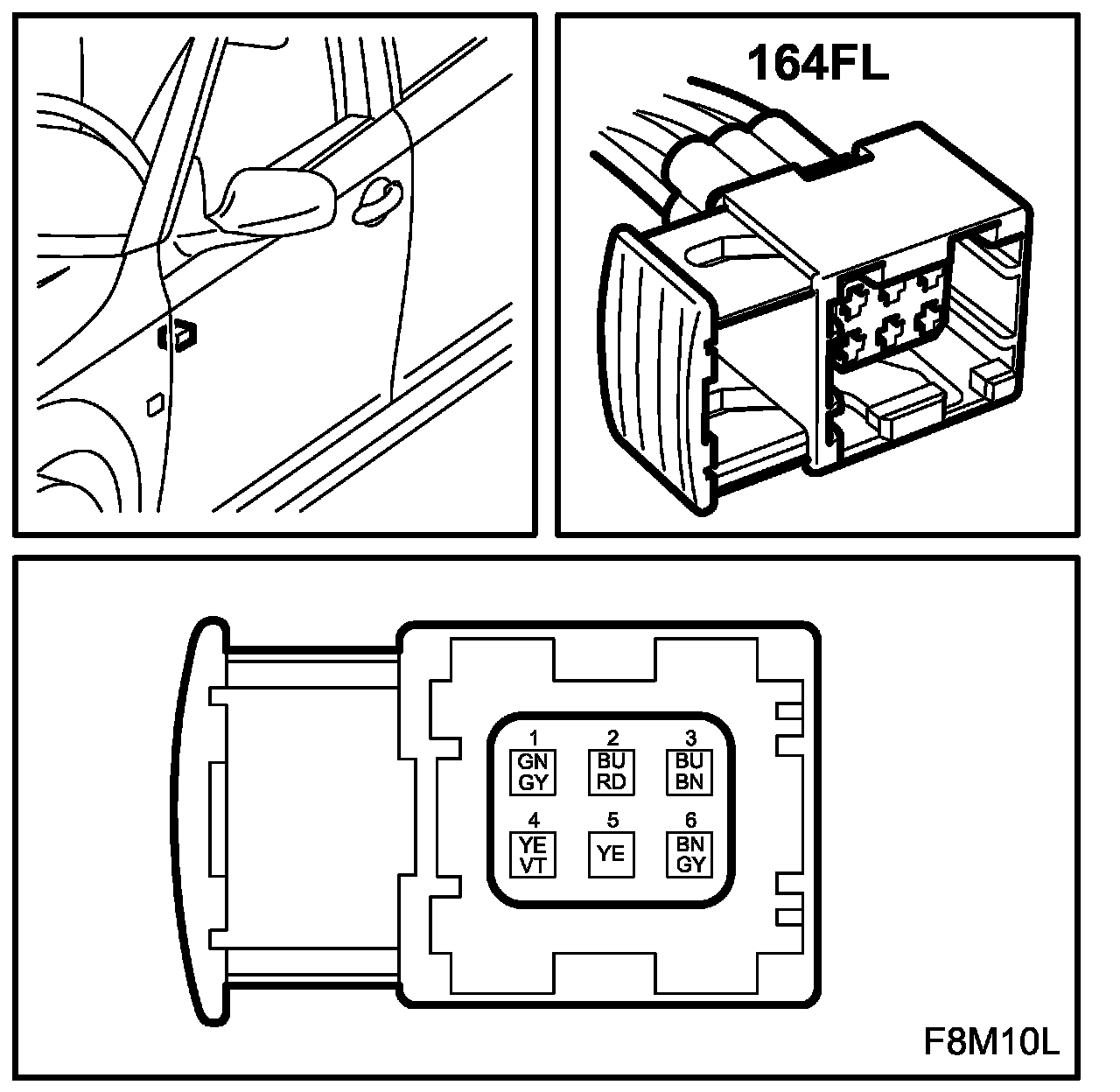

Motor, Electrically Operated Window Lift, Front, Left-Hand (164FL)
Motor, Electrically Operated Window Lift, Front, Left-Hand (164FL)
Location:
In the door With pinch protection
Motor, Electrically Operated Window Lift, Front, Left-hand (164FL):
