9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Control Module
>>
Control Module, Rear Left Door (702RL)
Control Module, Rear Left Door (702RL)
Location:
in door

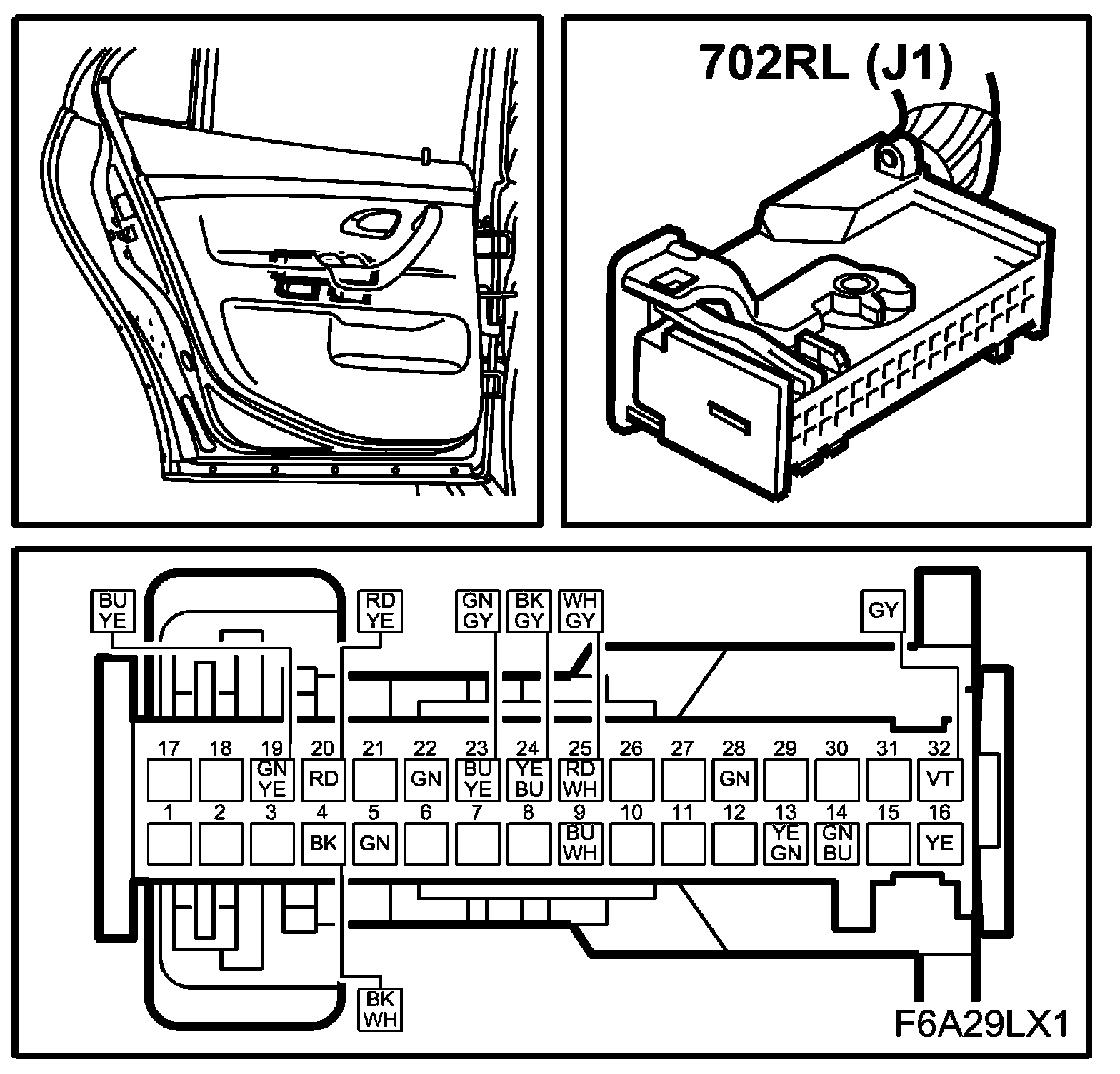

J1
Control Module, Rear Left Door (702RL):

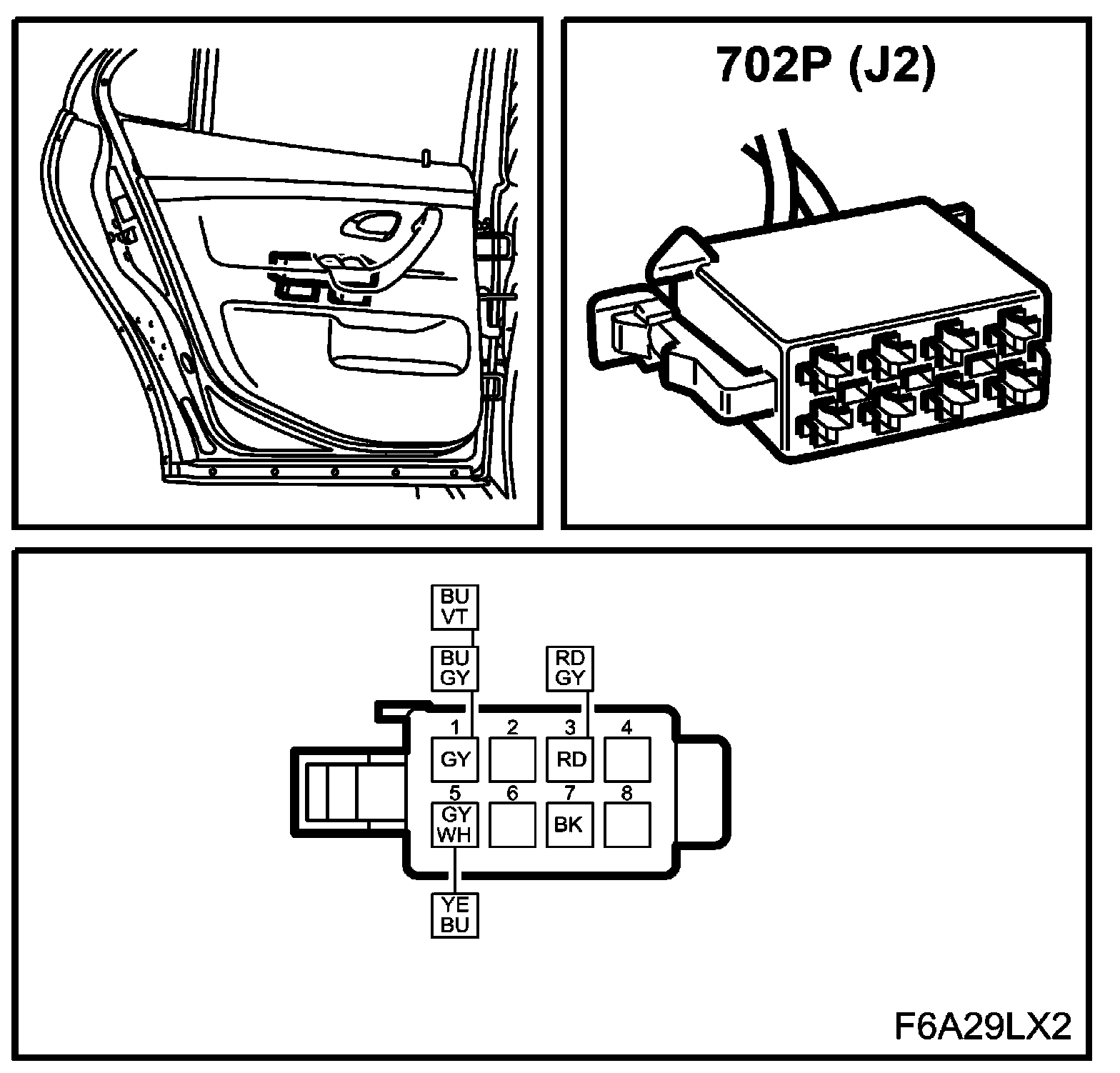

J2
Control Module, Rear Left Door (702RL):
