Power Door Lock Control Module
>>
Control Module, Door, Front, Left (702FL)
Control Module, Door, Front, Left (702FL)
Location:
in the door

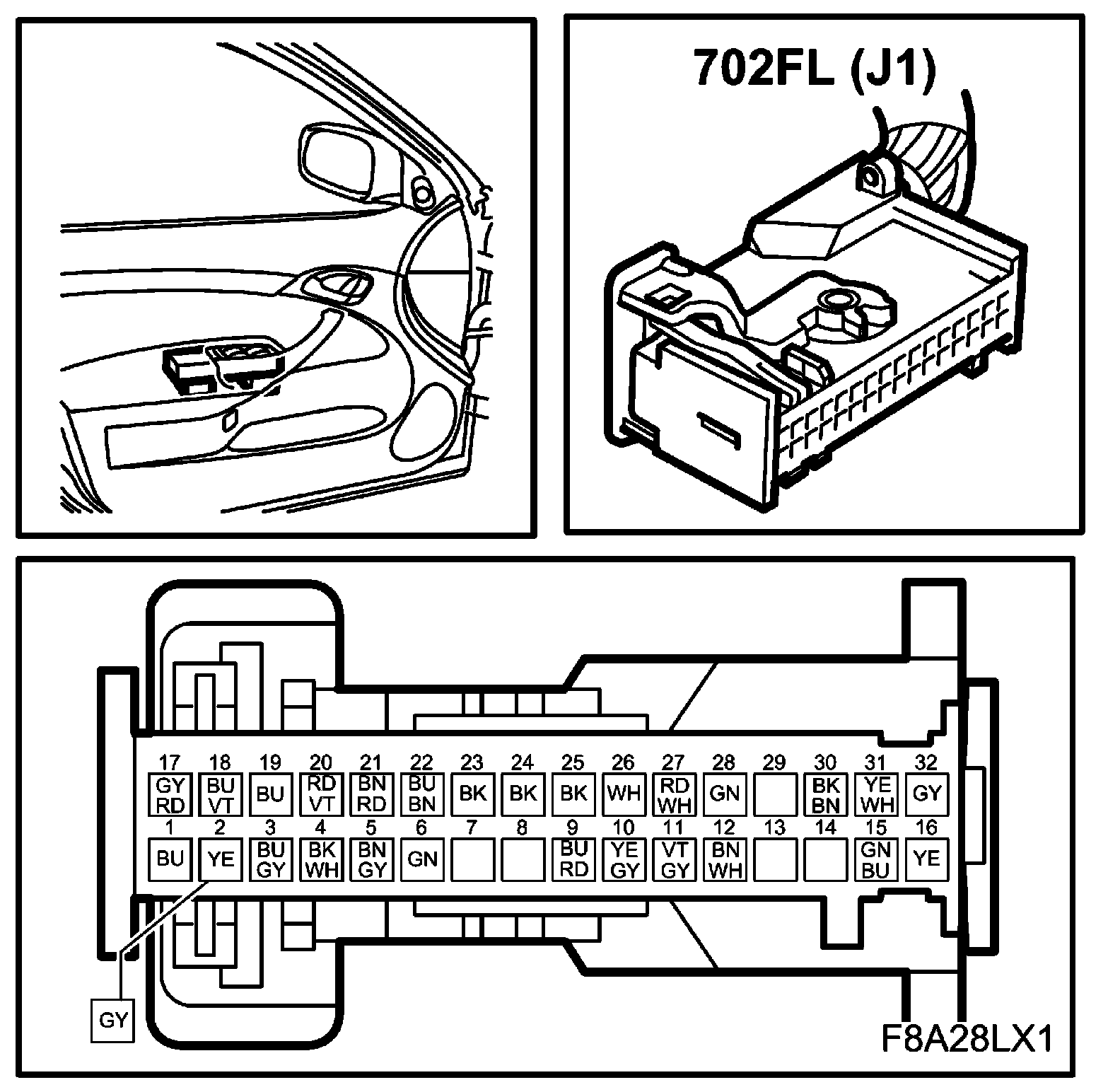

J1
Control Module, Door, Front, Left (702FL):
J2
Control Module, Door, Front, Left (702FL):
