Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Actuator >> Unit, Central Locking System, Right Rear Door (687RR)

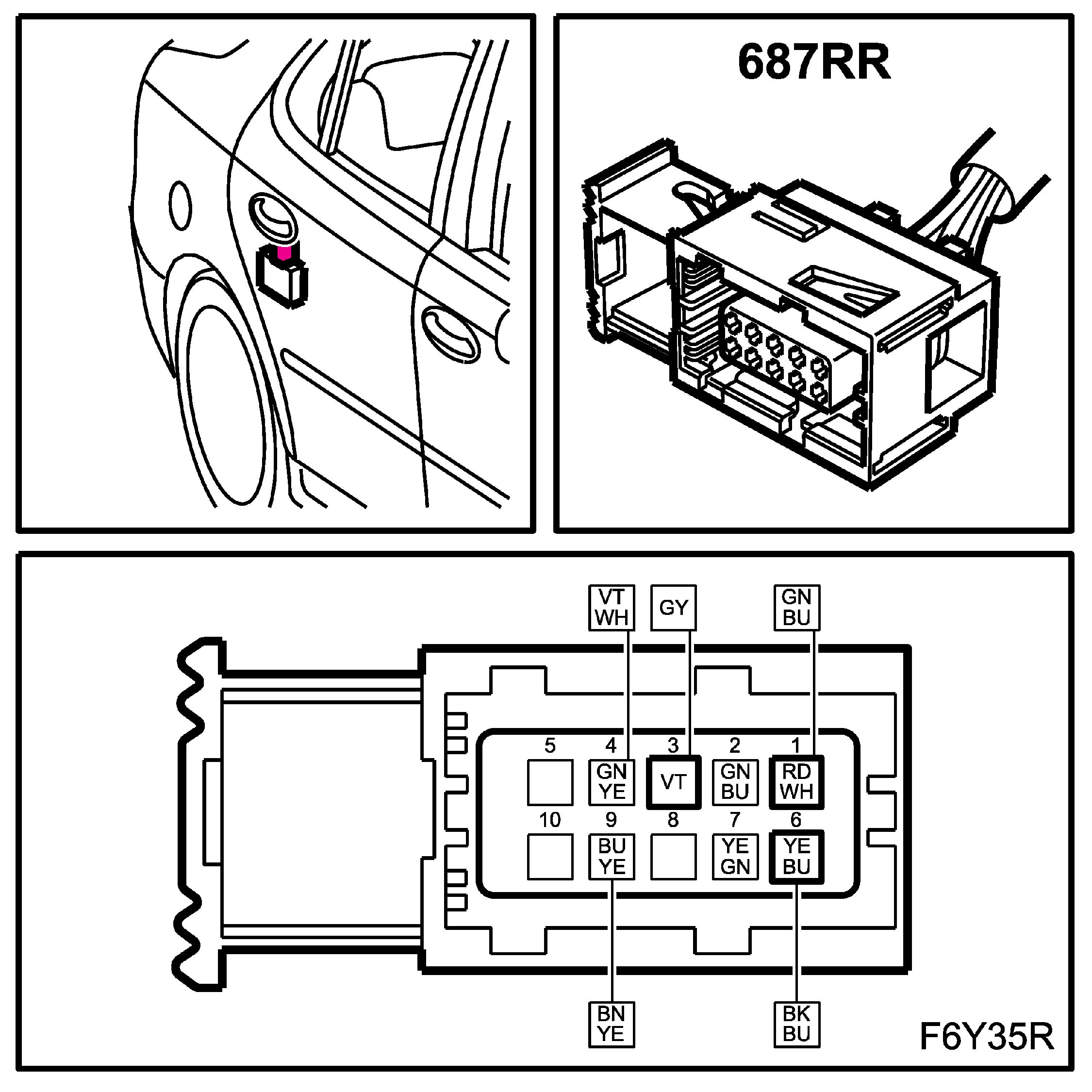

Unit, Central Locking System, Right Rear Door (687RR)



Unit, Central Locking System, Right Rear Door (687RR)

Location: in the door

Unit, Central Locking System, Right Rear Door (687RR):
