Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Assist Control Module >> Convertible

Convertible



SPA Control Module (630)

Location: Under Rear Electrical Centre.

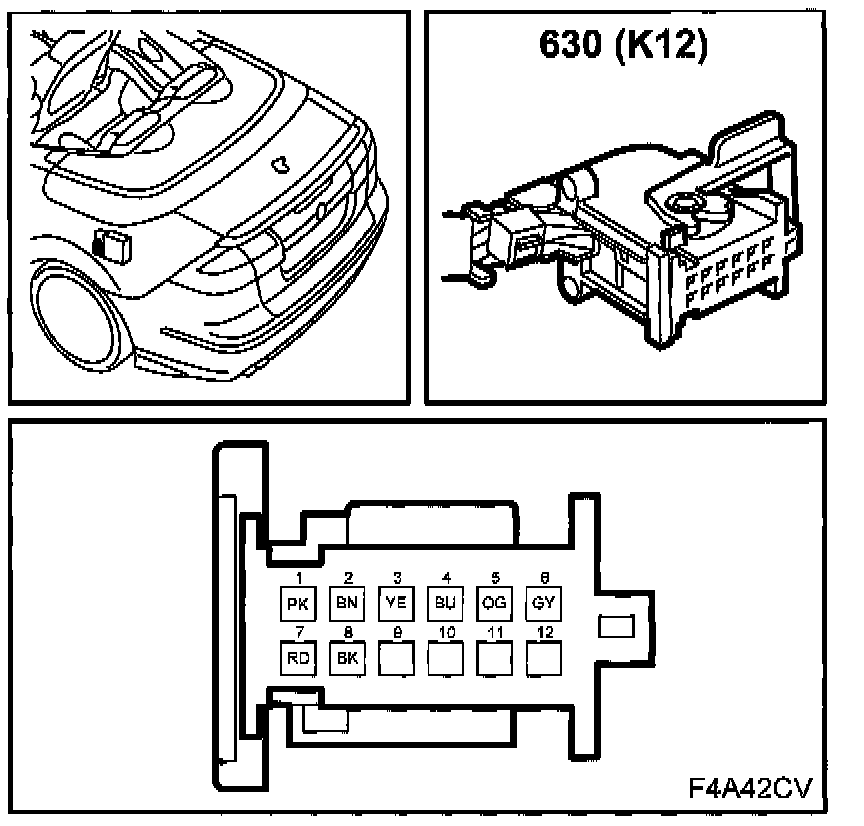

K12

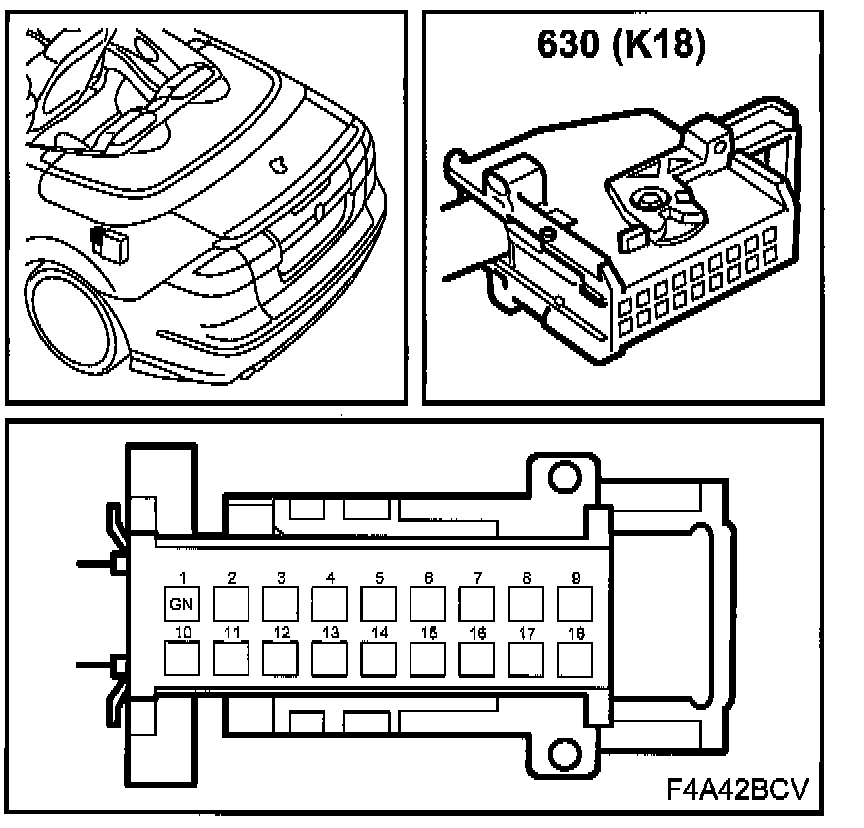

K18
