Heating Element, Oxygen Sensor (271)



Location: integrated in the oxygen sensor

T8

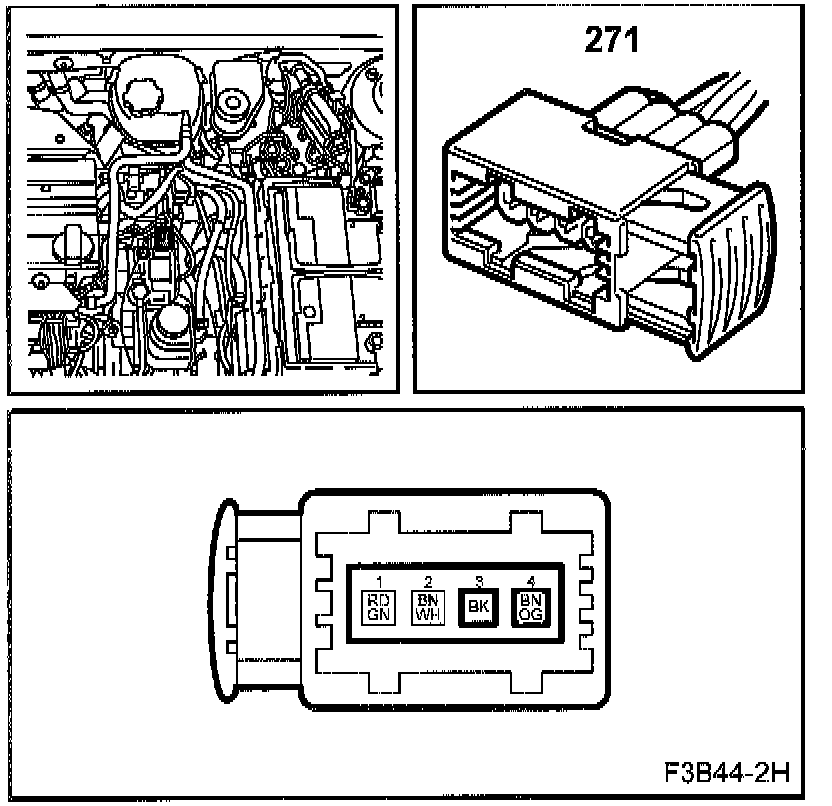

Front Heated Oxygen Sensor

Heated Oxygen Sensor Element (271) (Front):

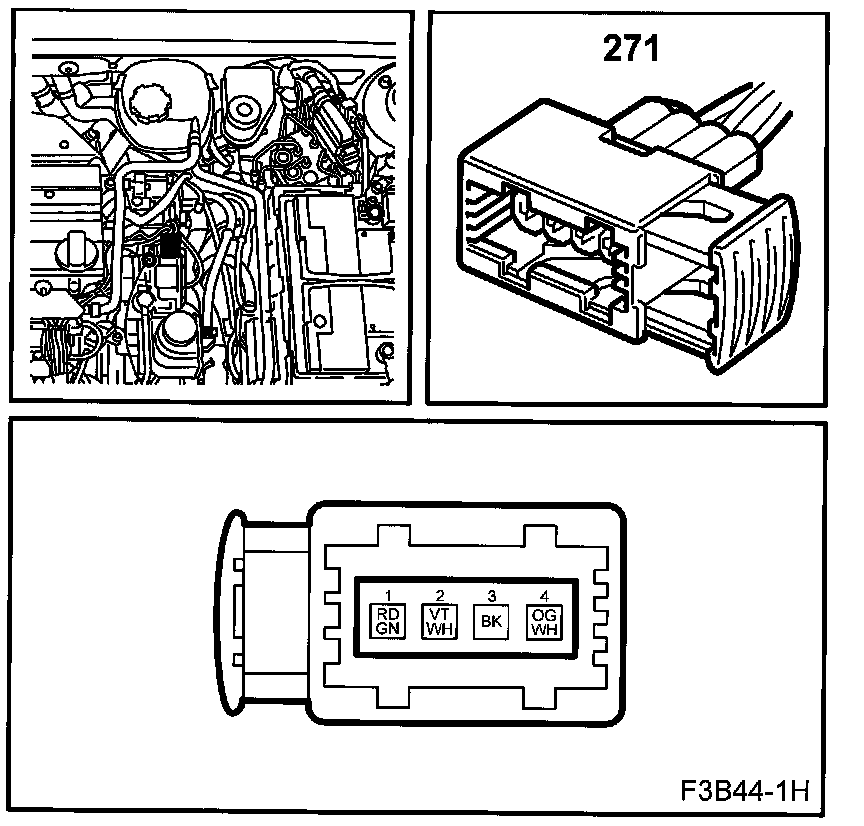

Rear Heated Oxygen Sensor

Heated Oxygen Sensor Element (271) (Rear):
