Oxygen Sensor Relay
Oxygen Sensor Relay

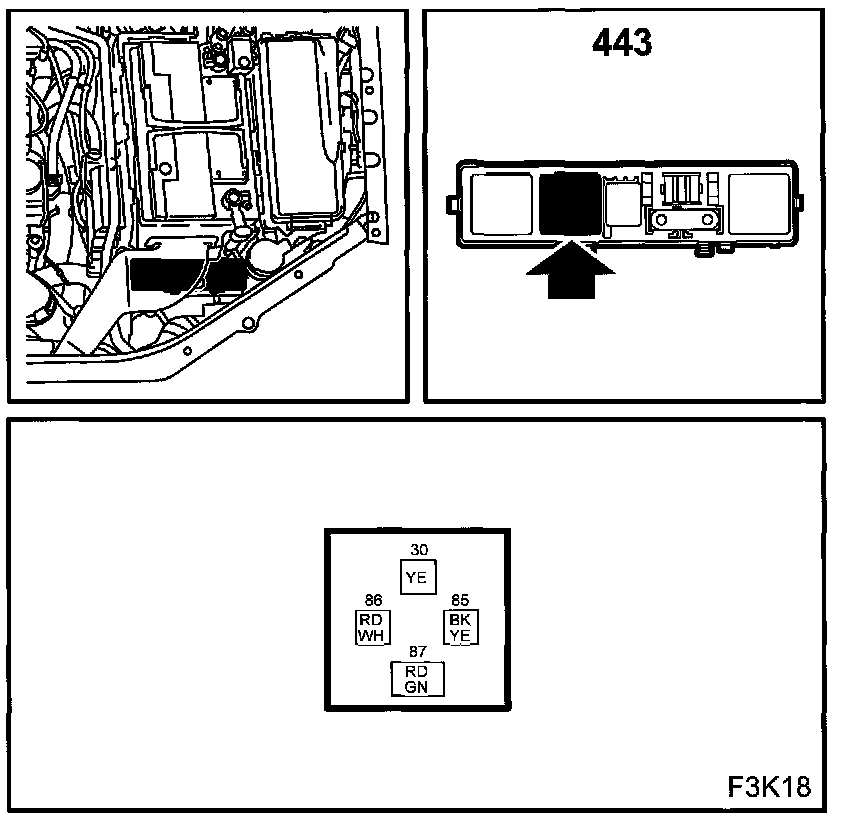

Location:
in the main fuse box in front of battery
Heated Oxygen Sensor Relay (443):
