Electro-Chromatic Layer, Door Mirrors (639)



Electro-chromatic Layer, Door Mirrors (639)

Location: on the inside of the mirror glass

LH

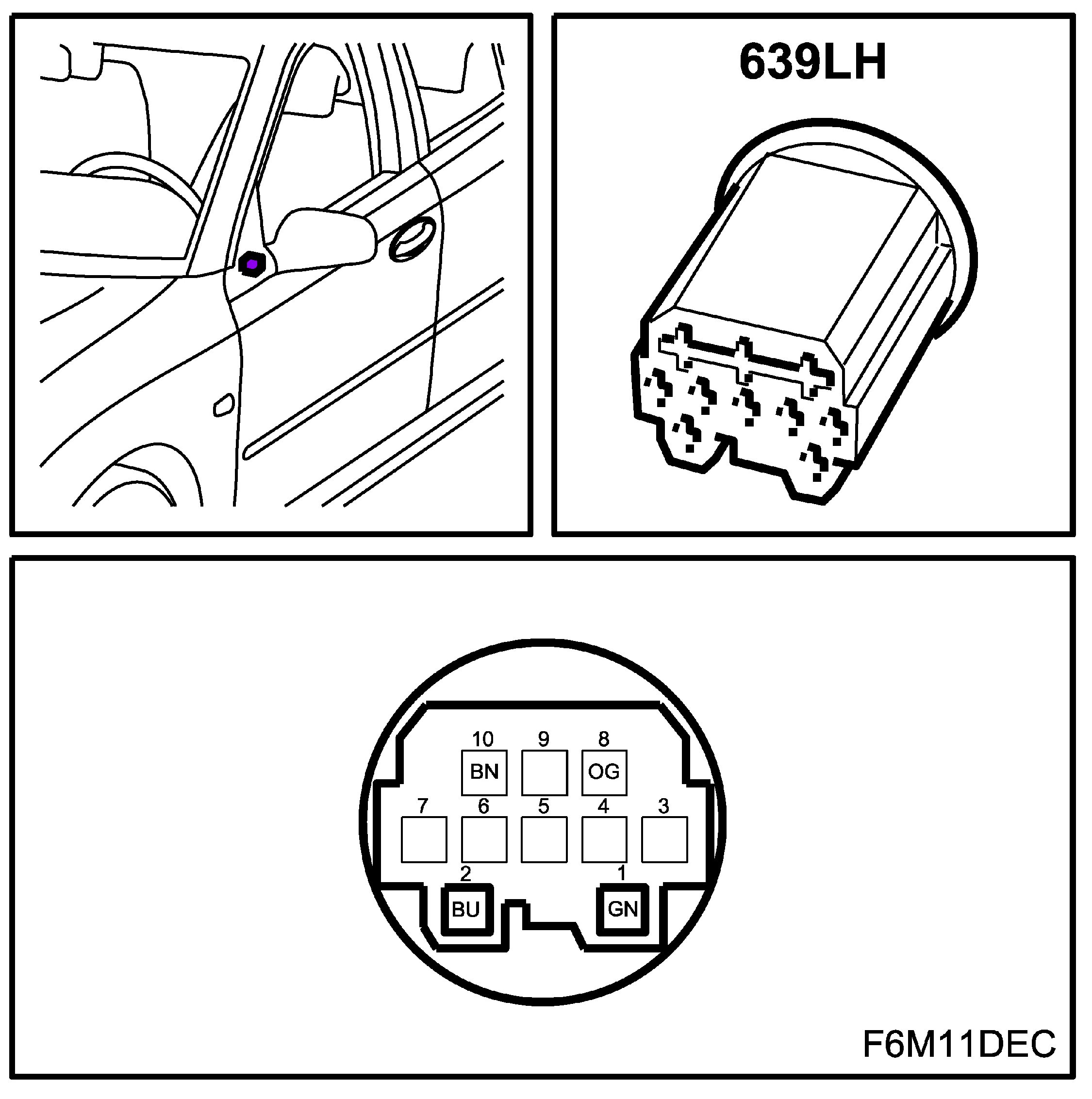

Electro-chromatic Layer, Door Mirrors (639), LH:





RH

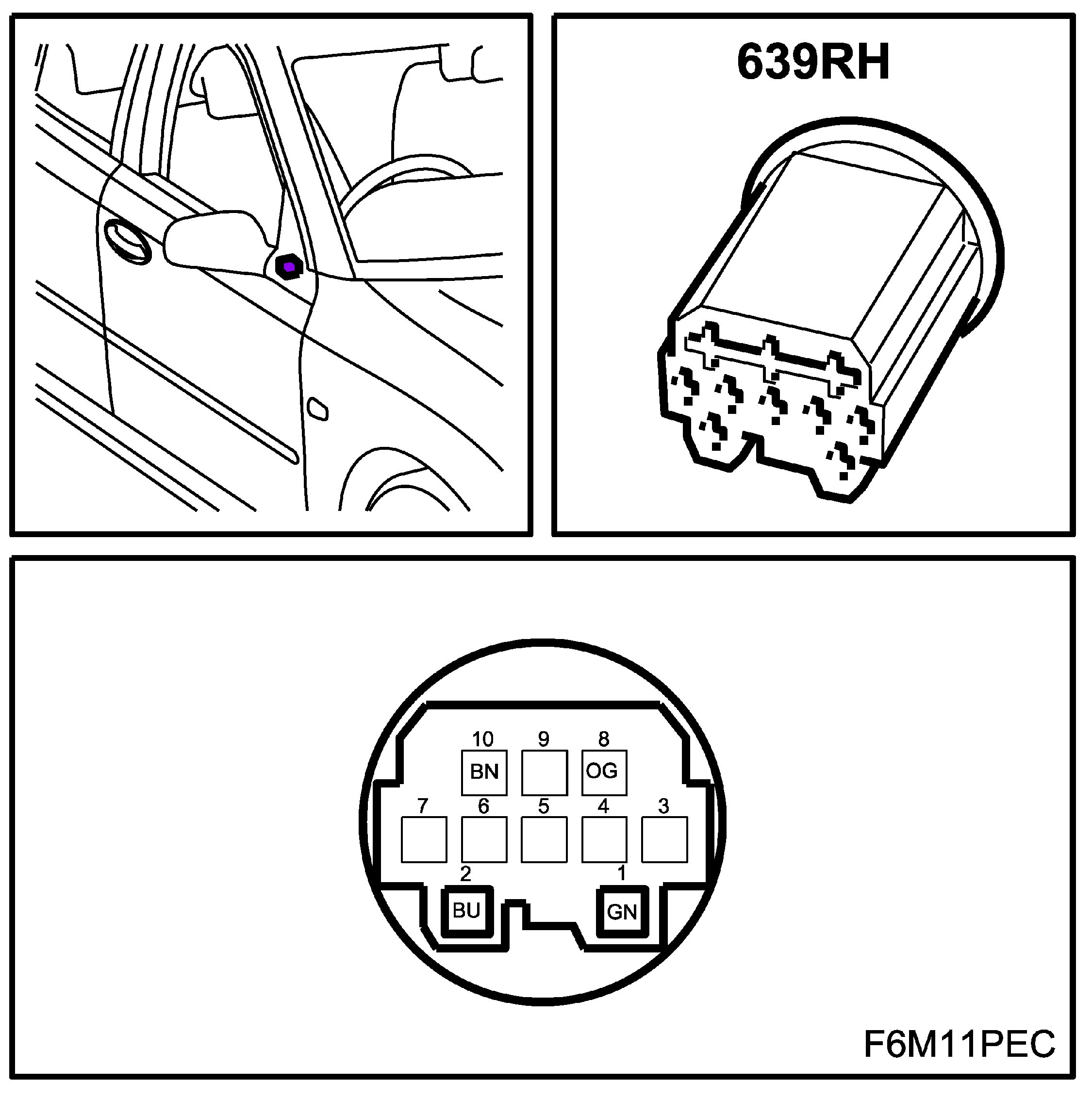

Electro-chromatic Layer, Door Mirrors (639), RH:
