Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Map Light >> Front Reading Lamp (225F) >> Convertible

Convertible



Location: in the front roof console

CV

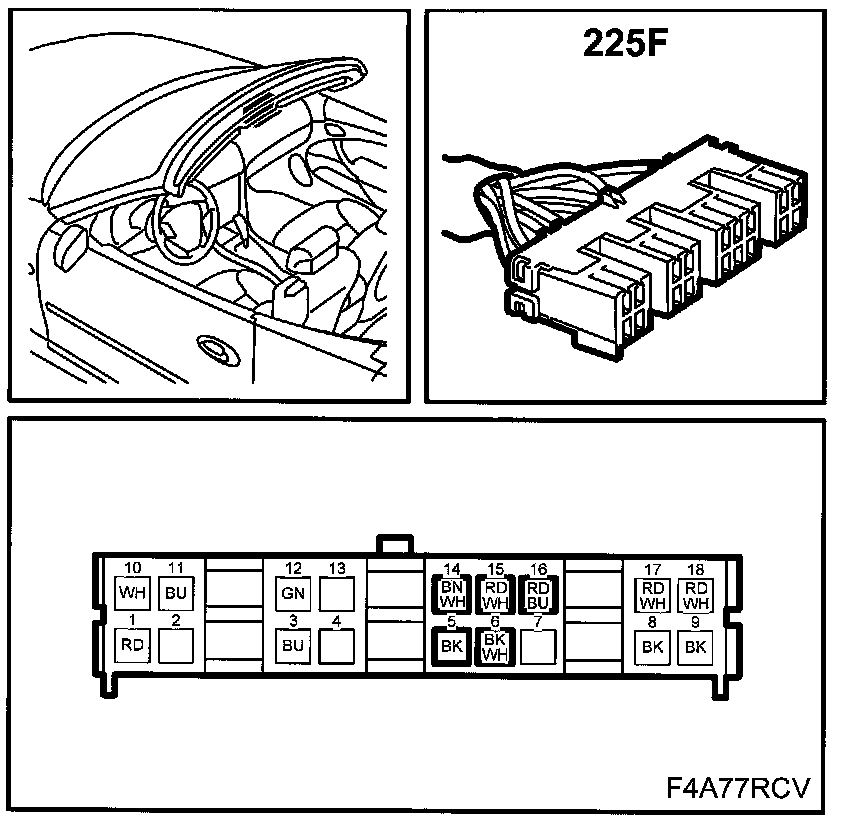

Front Reading Lamp (225F):
