Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Horn >> System Diagram >> Left Horn (40LH)

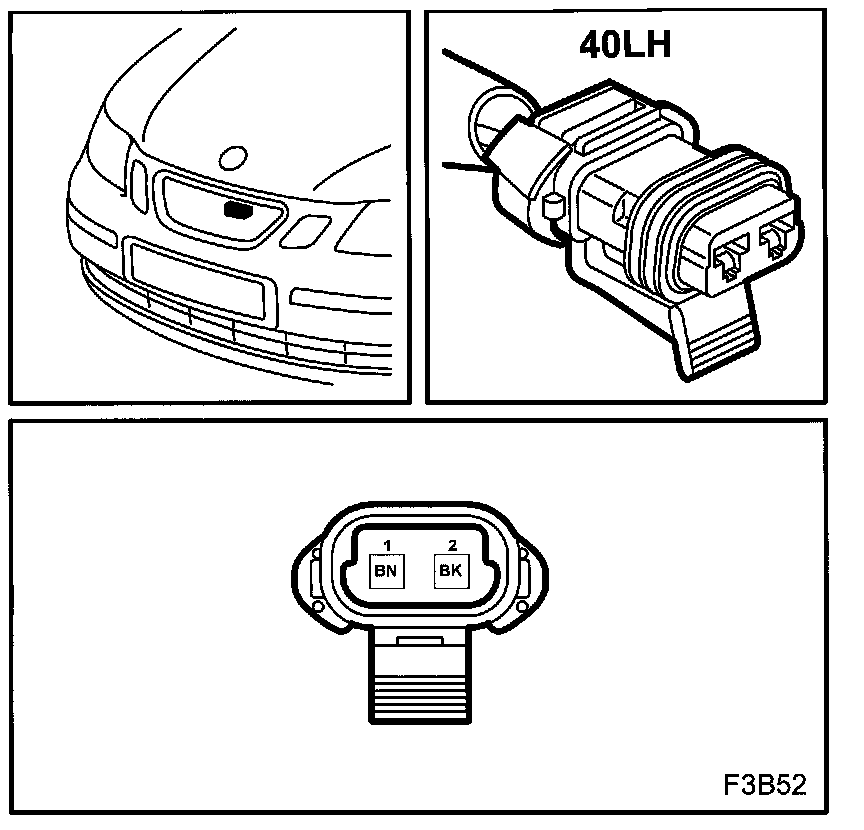

Left Horn (40LH)



Location: On left behind grille


Left Horn (40LH):
