Headlamp
>>
System Diagram
>>

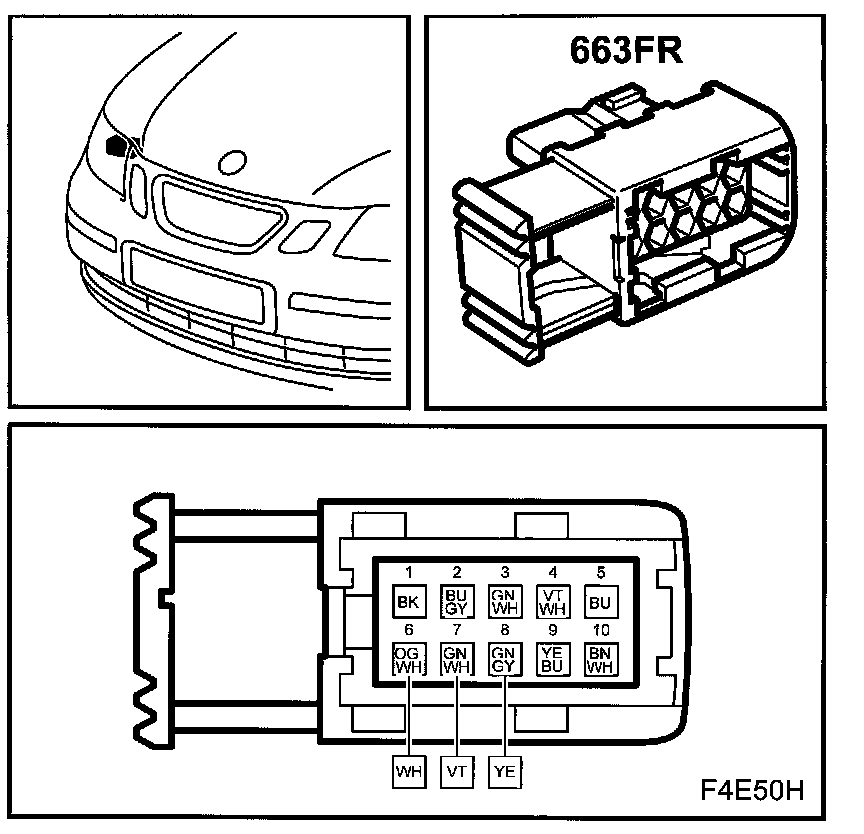

Right Headlamp (663FR)
Right Headlamp (663FR)
Location:
by the right side of the radiator
Right Headlamp (663FR):
