Home
>>
Saab
>>
2005
>>
9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Headlamp
>>
Headlamp Alignment Actuator
>>
Right-Hand Headlamp Levelling Motor (280FR)
Right-Hand Headlamp Levelling Motor (280FR)
Location:
in the headlamp module

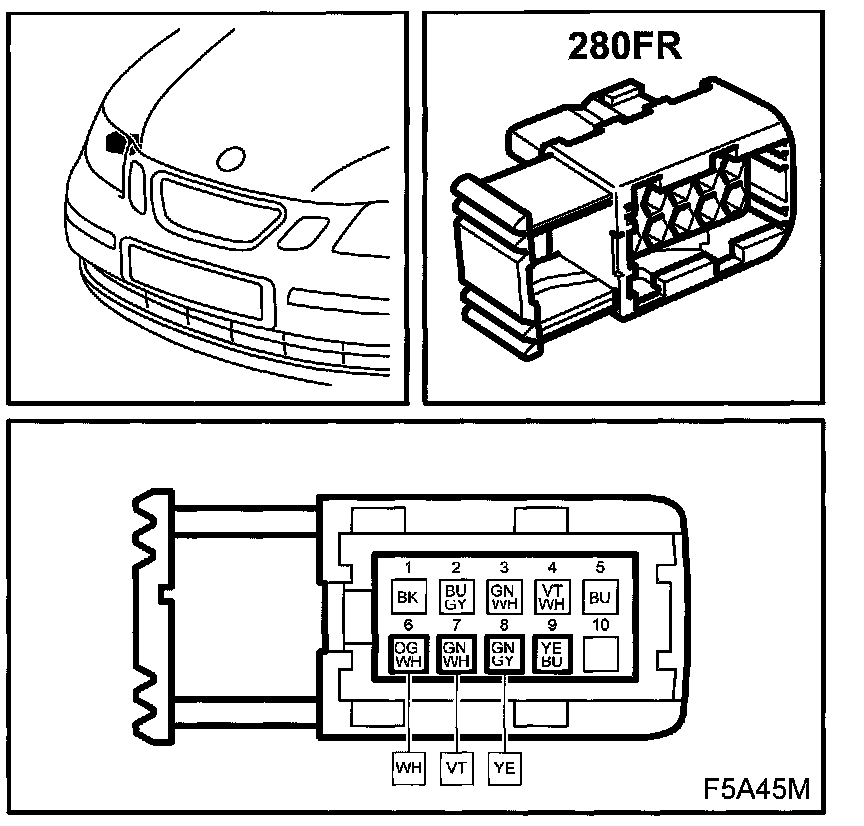

Manual
Right-hand Headlamp Levelling Motor (280FR):

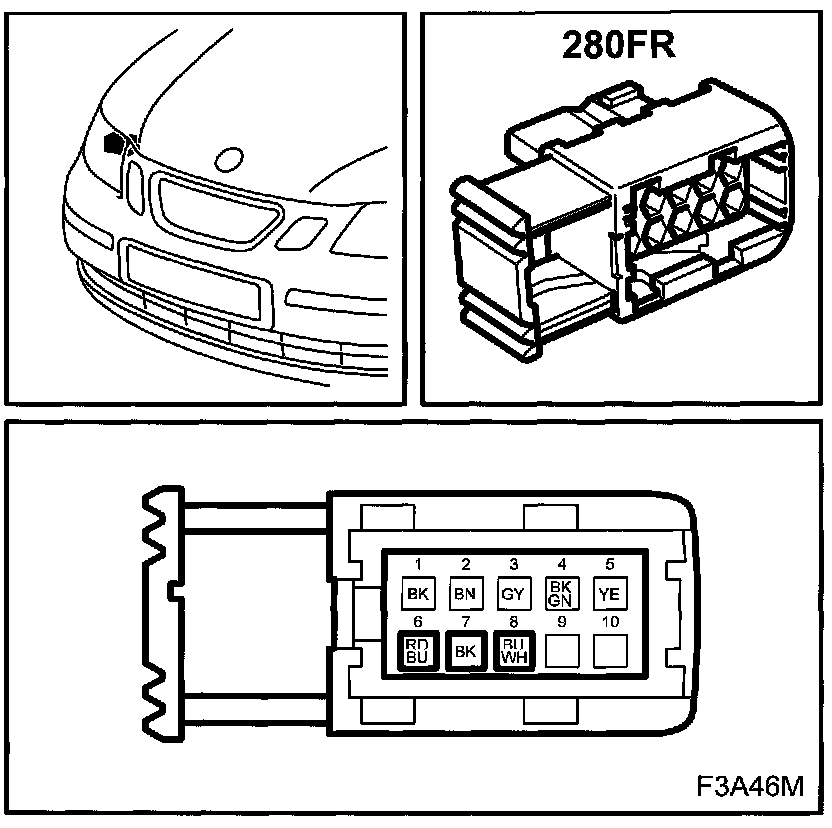

Automatic
Right-hand Headlamp Levelling Motor (280FR):
