Lighting and Horns
>>
Brake Light Switch
Brake Light Switch
Location:
On pedal bracket

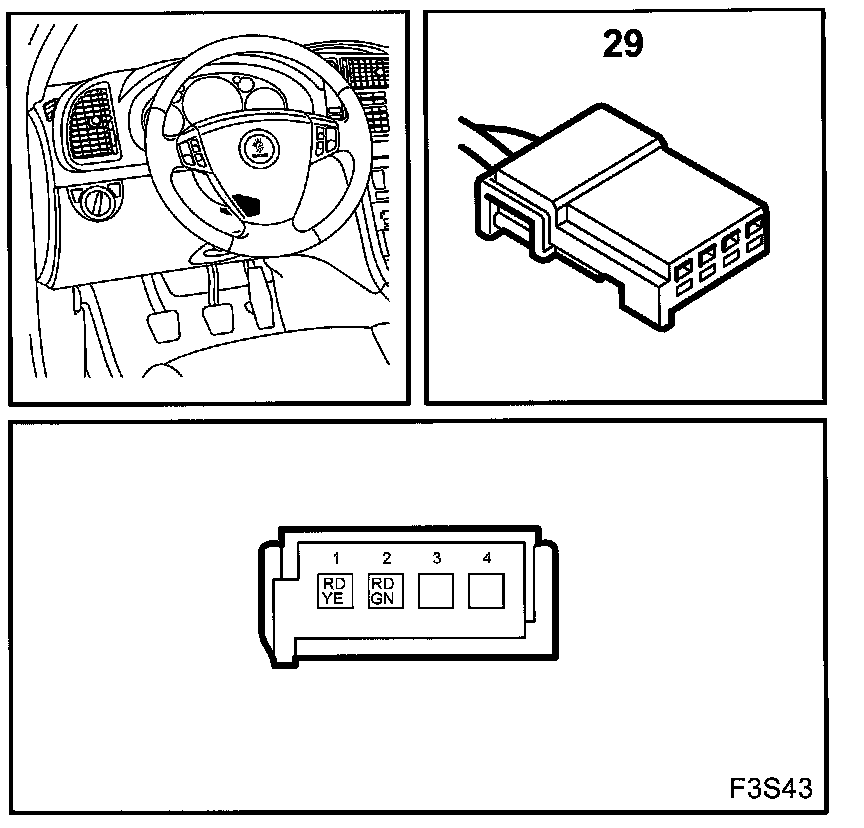

Brake Light Switch (29):
