Saab
>>
2005
>>
9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Leak Detection Solenoid, Evaporative System

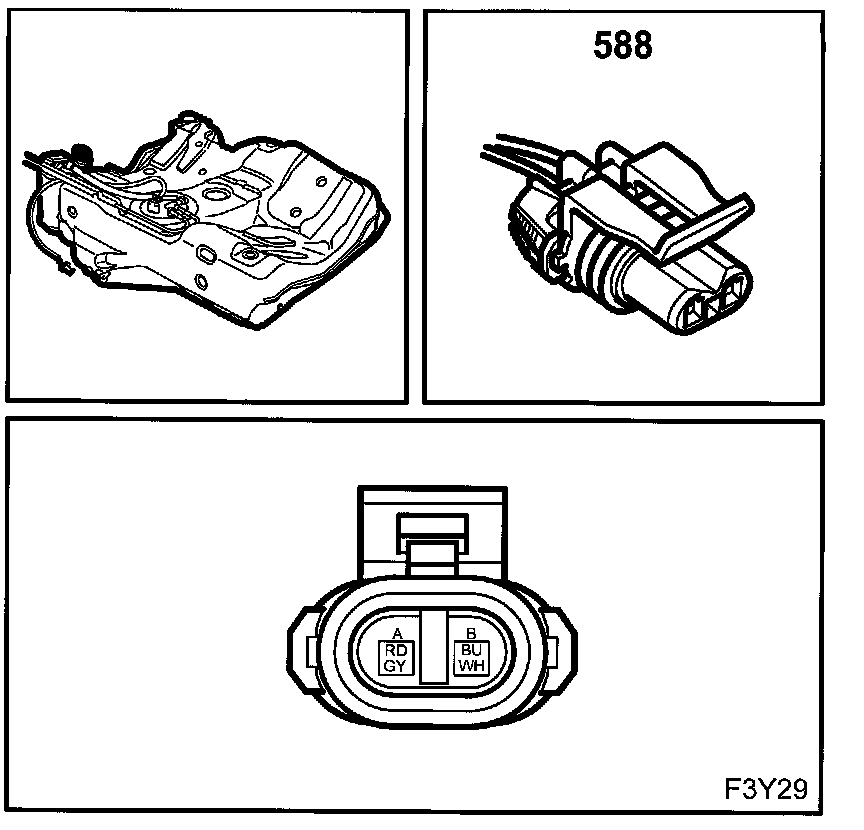

Leak Detection Solenoid, Evaporative System
Location:
on the fuel tank
EVAP Shut-off Solenoid Valve (588):
