Saab
>>
2005
>>
9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>
Impact Sensor, Side
>>

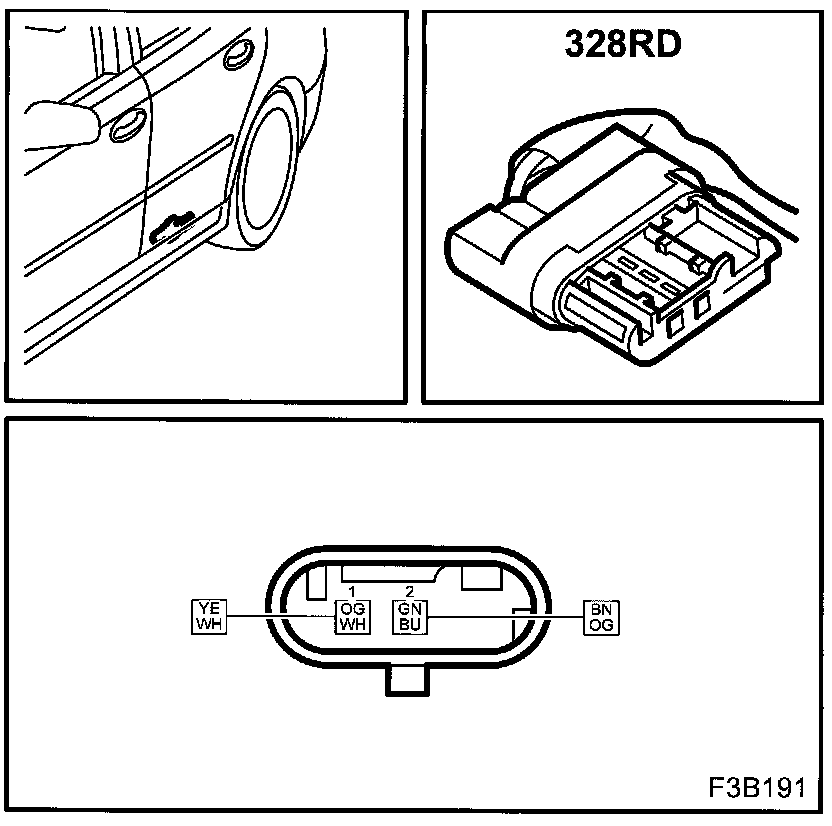

Impact Sensor, Side, Rear, Driver's Side (328RD)
Impact Sensor, Side, Rear, Driver's Side (328RD)
Location:
under the C-pillar near the lower edge of the rear seat
Impact Sensor, Side, Rear, Driver's Side (328RD):
