Home
>>
Saab
>>
2005
>>
9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>
Impact Sensor, Side
>>

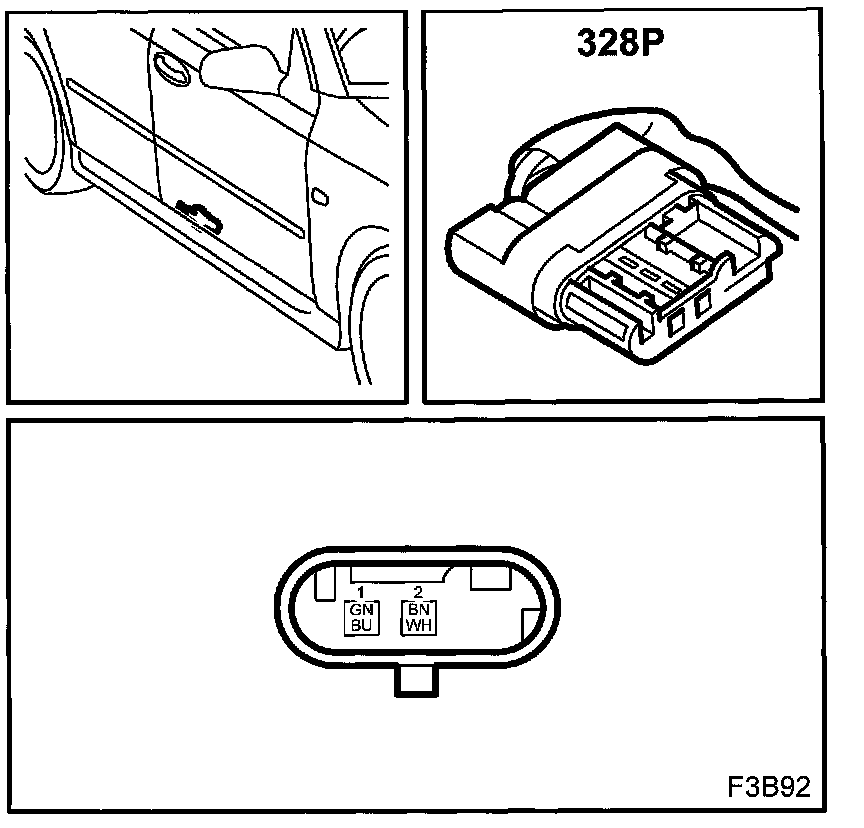

Impact Sensor, Side, Front, Passenger (328P)
Impact Sensor, Side, Front, Passenger (328P)
Location:
on the lower edge of the passenger side B-pillar
Impact Sensor, Side, Front, Passenger (328P):
