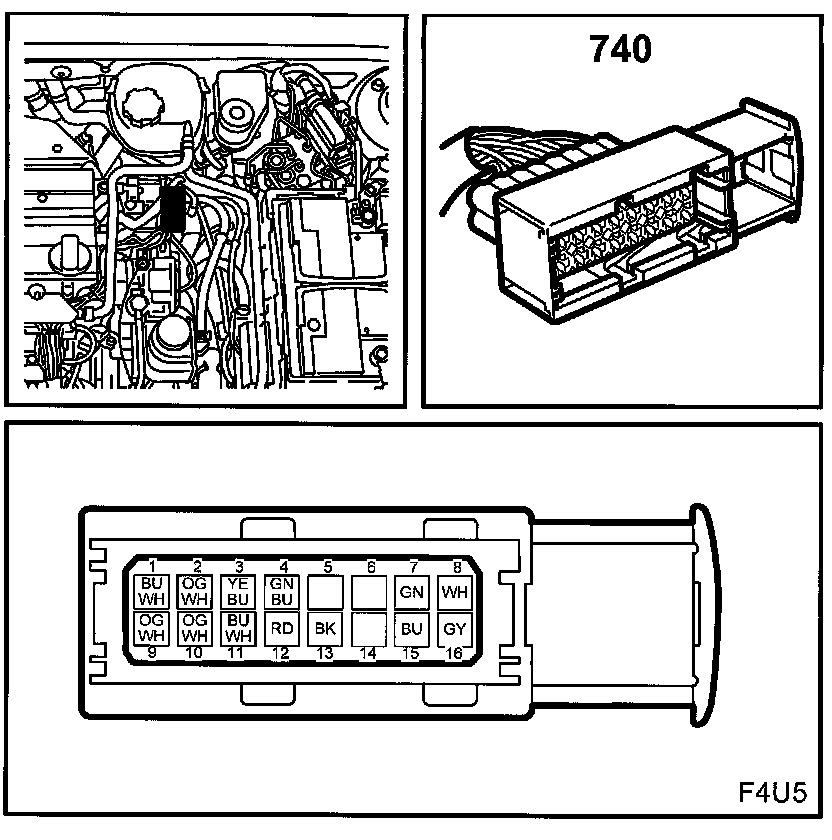

Ignition Control Module



Location: on the engine's short left side by the vacuum pump


Ionization Detection Module (740):
