Motor, Air-Mixing Damper, Left (222LH)
Motor, Air-Mixing Damper, Left (222LH)

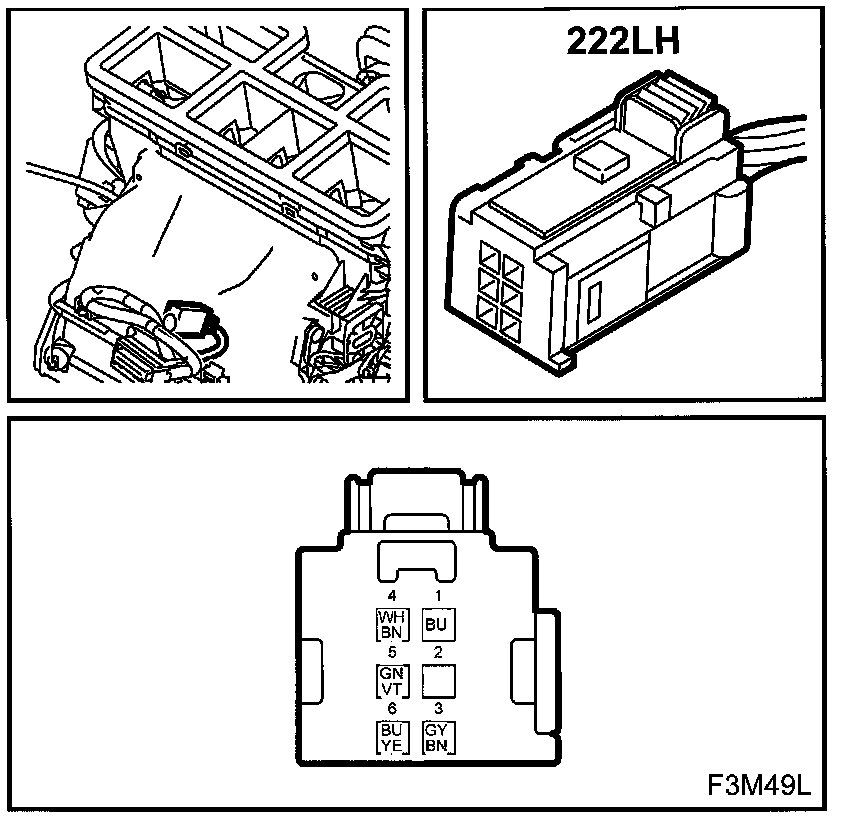

Location:
lower motor on the LH side of the heating and ventilation unit
Motor, Air-mixing Damper, Left (222LH):
