Motor, Air Distribution, Defroster (714)
Location:
centre motor on the LH heating and ventilation unit end plate

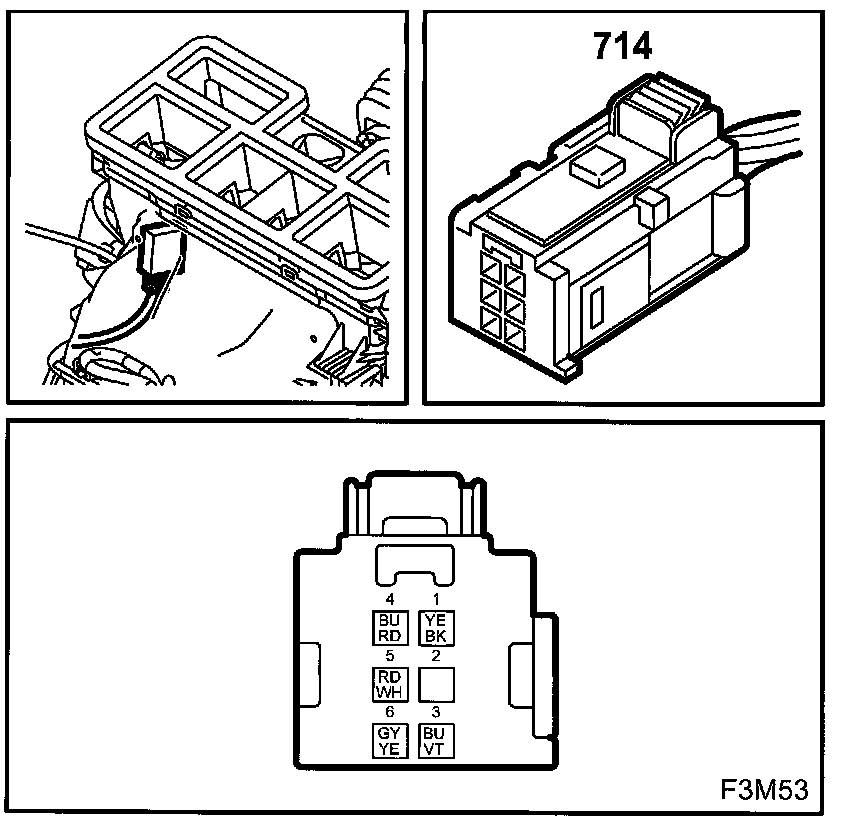

Motor, Air Distribution, Defroster (714):
