Control Module, Door, Front, Left (702FL)




Control Module, Door, Front, Left (702FL)

Location: in the door

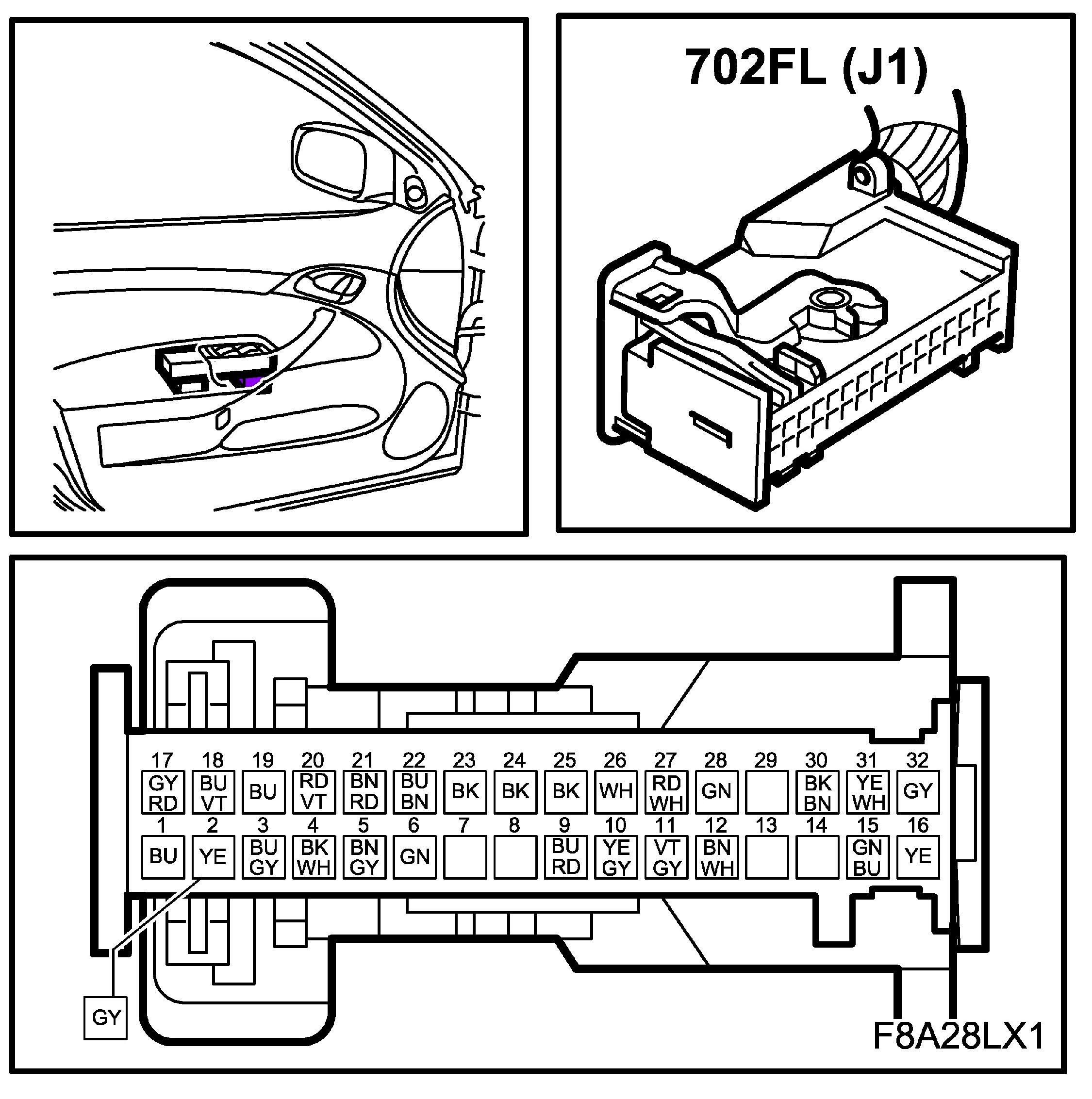

J1

Control Module, Door, Front, Left (702FL), J1:

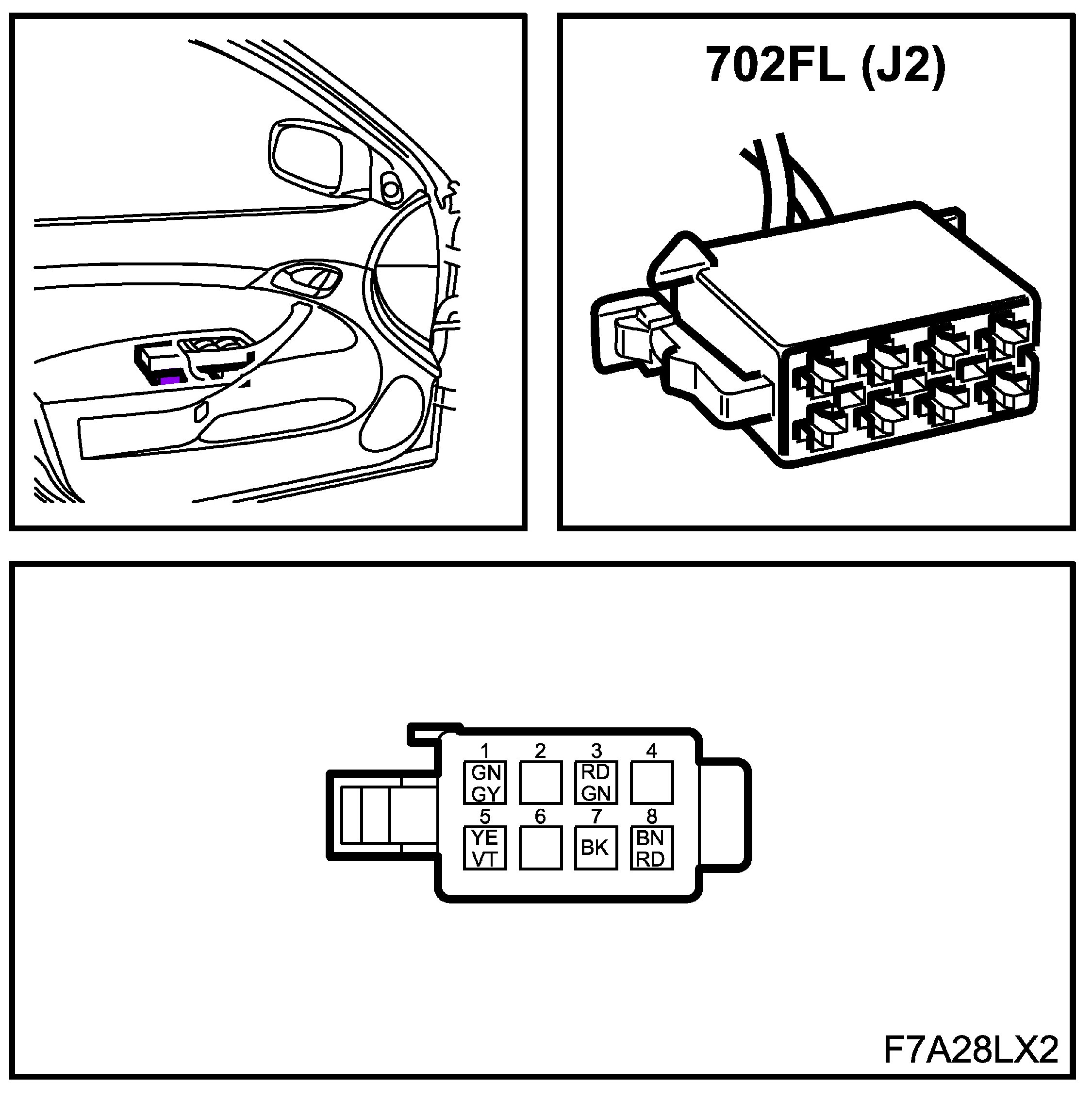

J2

Control Module, Door, Front, Left (702FL), J2:
