Connector Views
>>
Clutch Switch
Clutch Switch

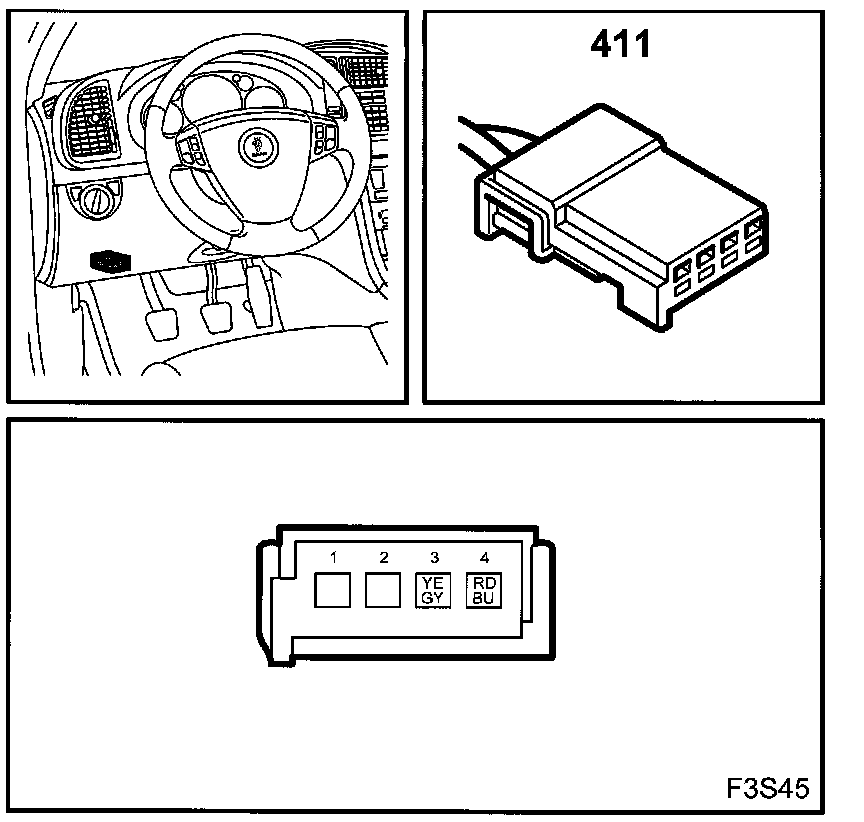

Location:
on bulkhead partition by clutch pedal
Switch, Clutch, Start Immobilizer (411):
