9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cellular Phone
>>
Cellular Phone Microphone
>>
Sedan
Sedan
4D

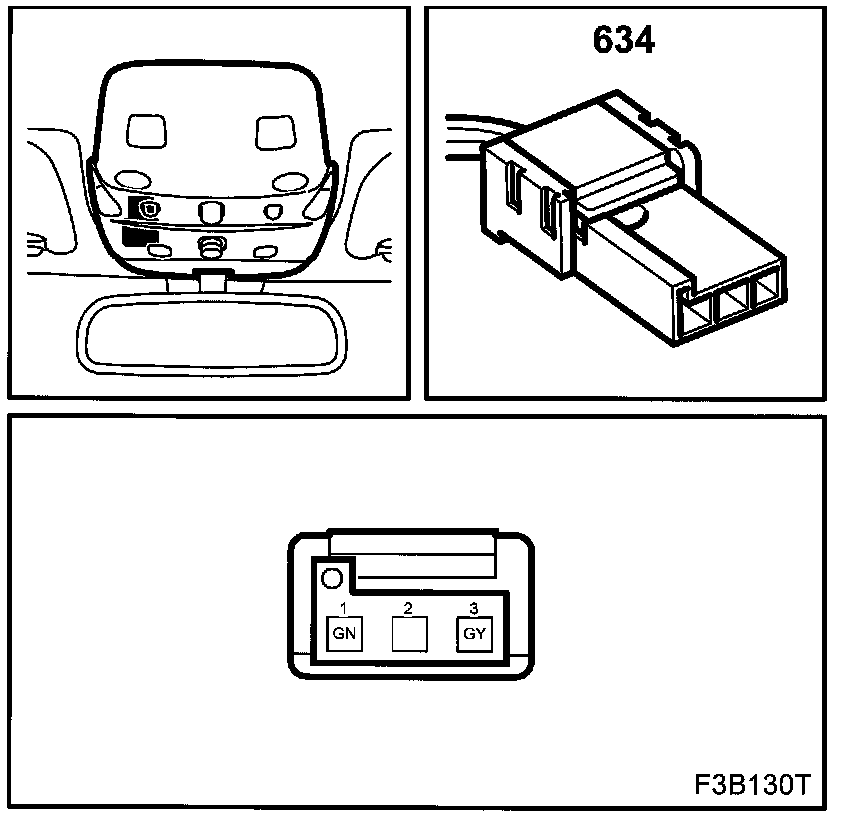

Location:
in front roof console
Provisions for mobile phone
Microphone, Mobile Phone (634):

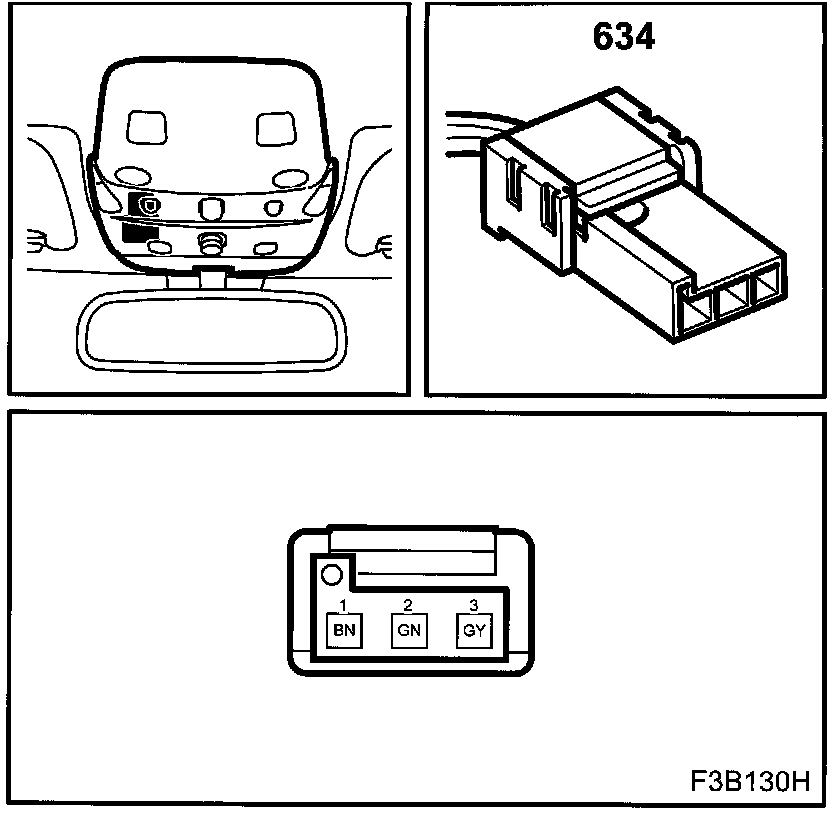

Hands-free
Microphone, Mobile Phone (634):
