Body Control Module
>>
Body Control Module (707)
Body Control Module (707)
Location:
in the dashboard electrical distribution unit

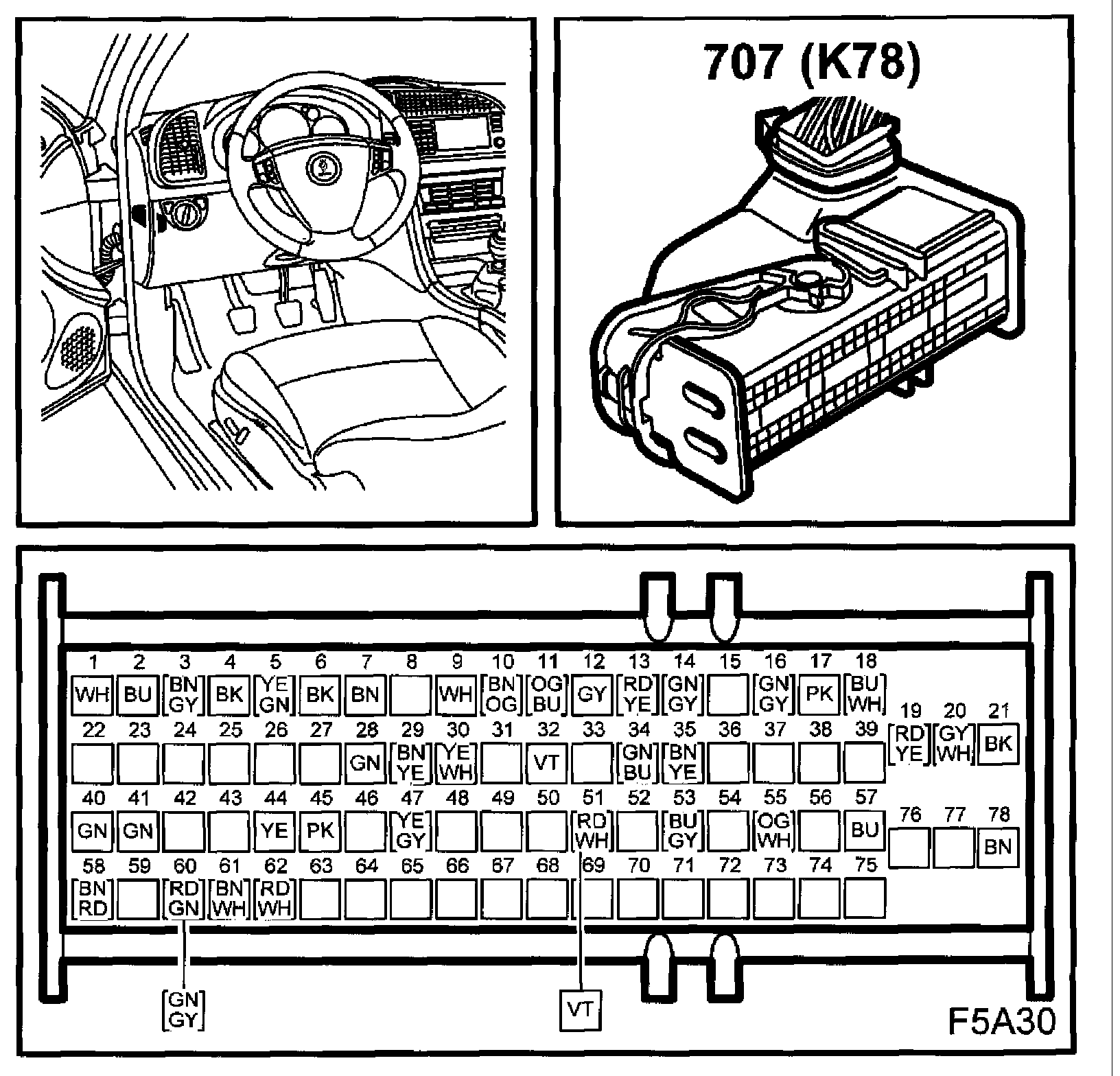

Body Control Module (707):
