Wheel Speed Sensor, Front (298FL, FR)

Wheel Speed Sensor, Front (298FL, FR)

Main use







To send wheel speed to the TCS or ESP unit.

Type







Two Hall sensors which measure wheel speed using a 48-pole magnetic disc, which provides 48 pulses per rotation.

The Hall sensor sends a square pulse with a 50% pulse-rate.

The control module uses the frequency to calculate wheel speed; by measuring variation in current consumption, the frequency can be measured. The frequency increases with a corresponding increased wheel speed from 0 to 2000 Hz.


Connection

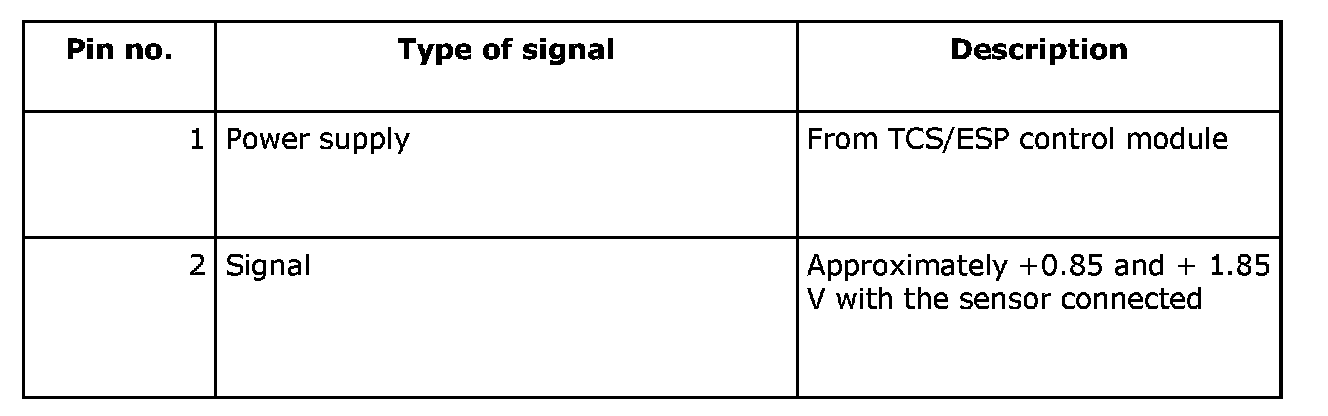

Pin No. 1 - 2:

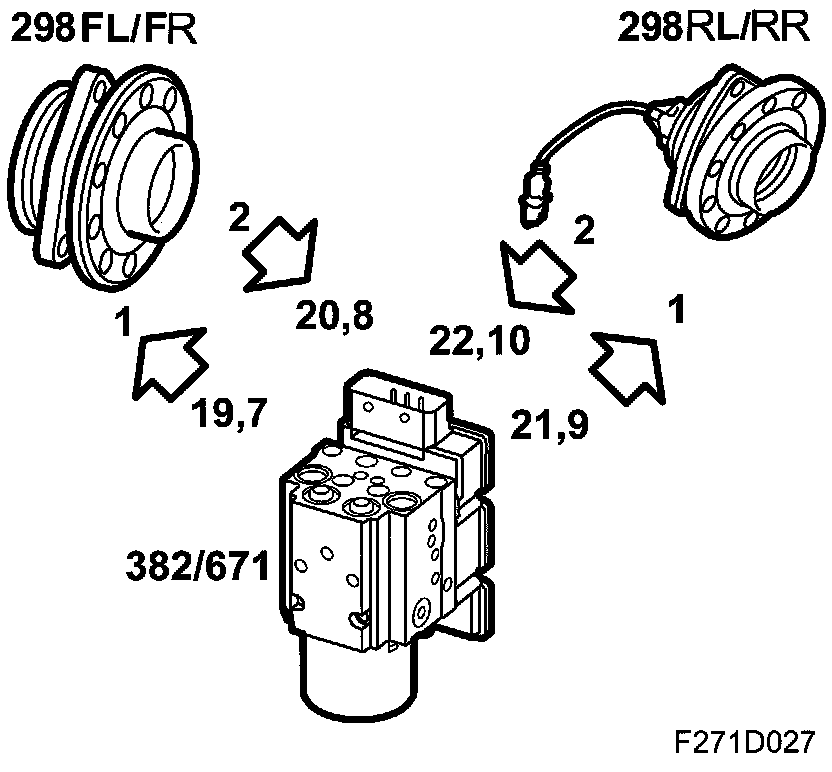

- Overview

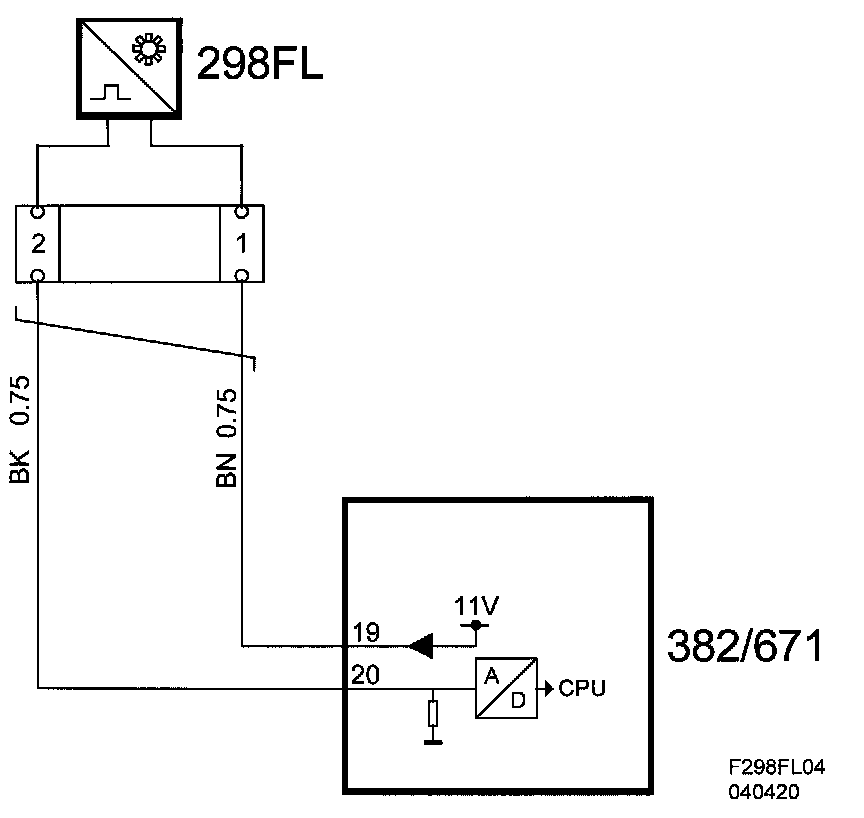

- 298 FL

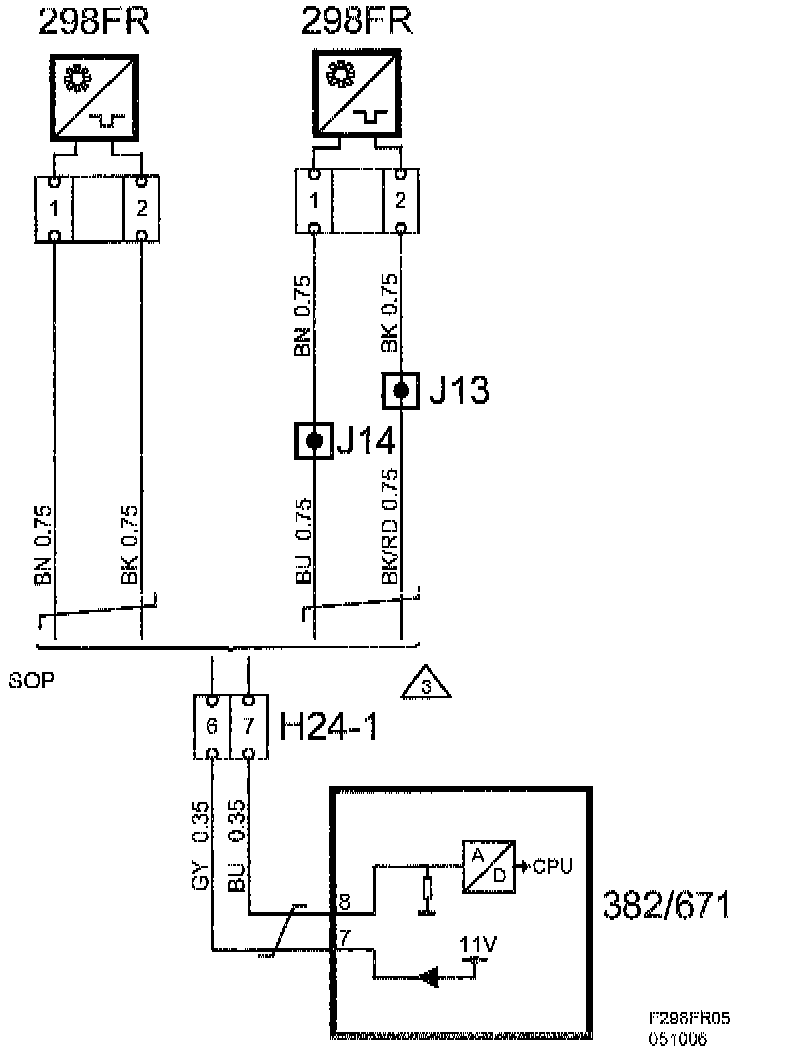

- 298 FR
