Hood Weatherstrip: Service and Repair

Bonnet Seal

To remove

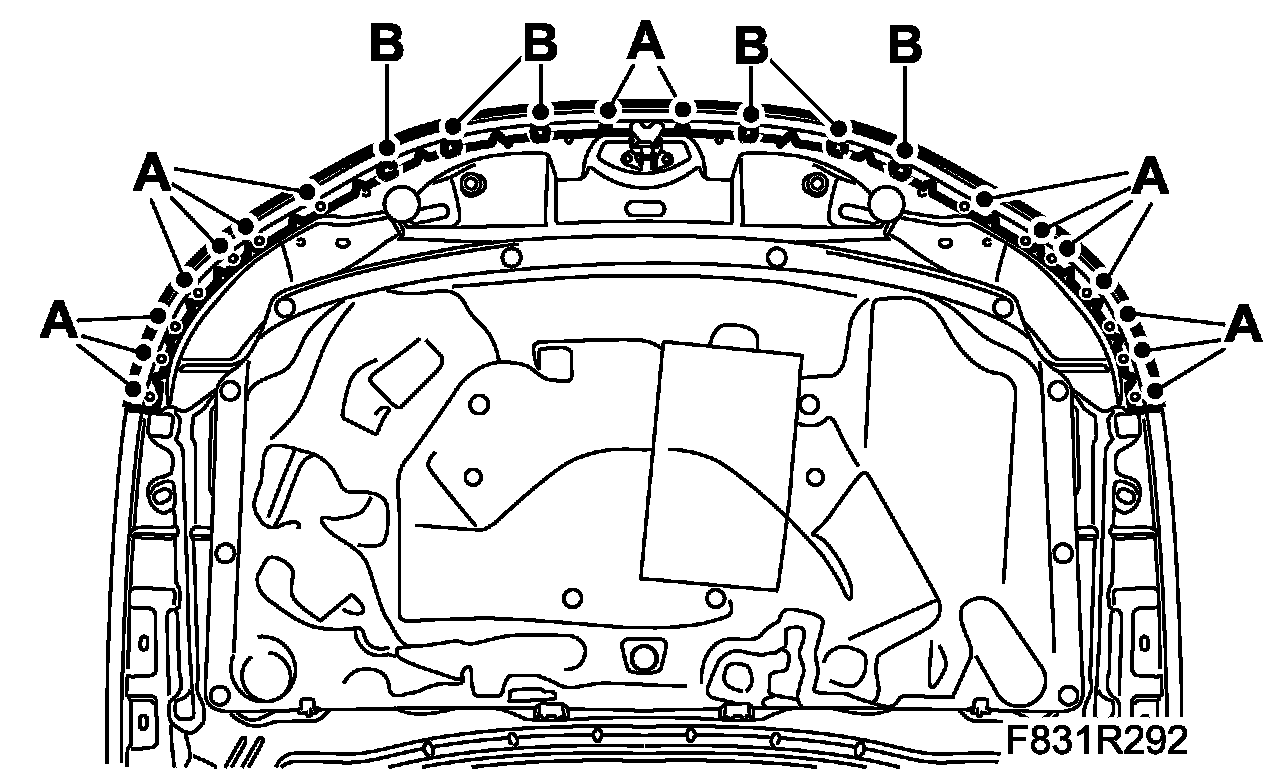

1. Remove the weatherstrip.
^ Use removal tool 84 71 179 to remove the clips (A).





^ Remove the other 6 anchorage points (B).

To fit

1. Fit the weatherstrip.
^ Fit the 6 anchorage points (B).
^ Fit the clips (A).
