Weatherstrip, Front Door

Weatherstrip, Front Door

To remove

1. Remove the A-pillar trim.
2. Remove the B-pillar trim.
3. Remove the lower panel from the A-pillar

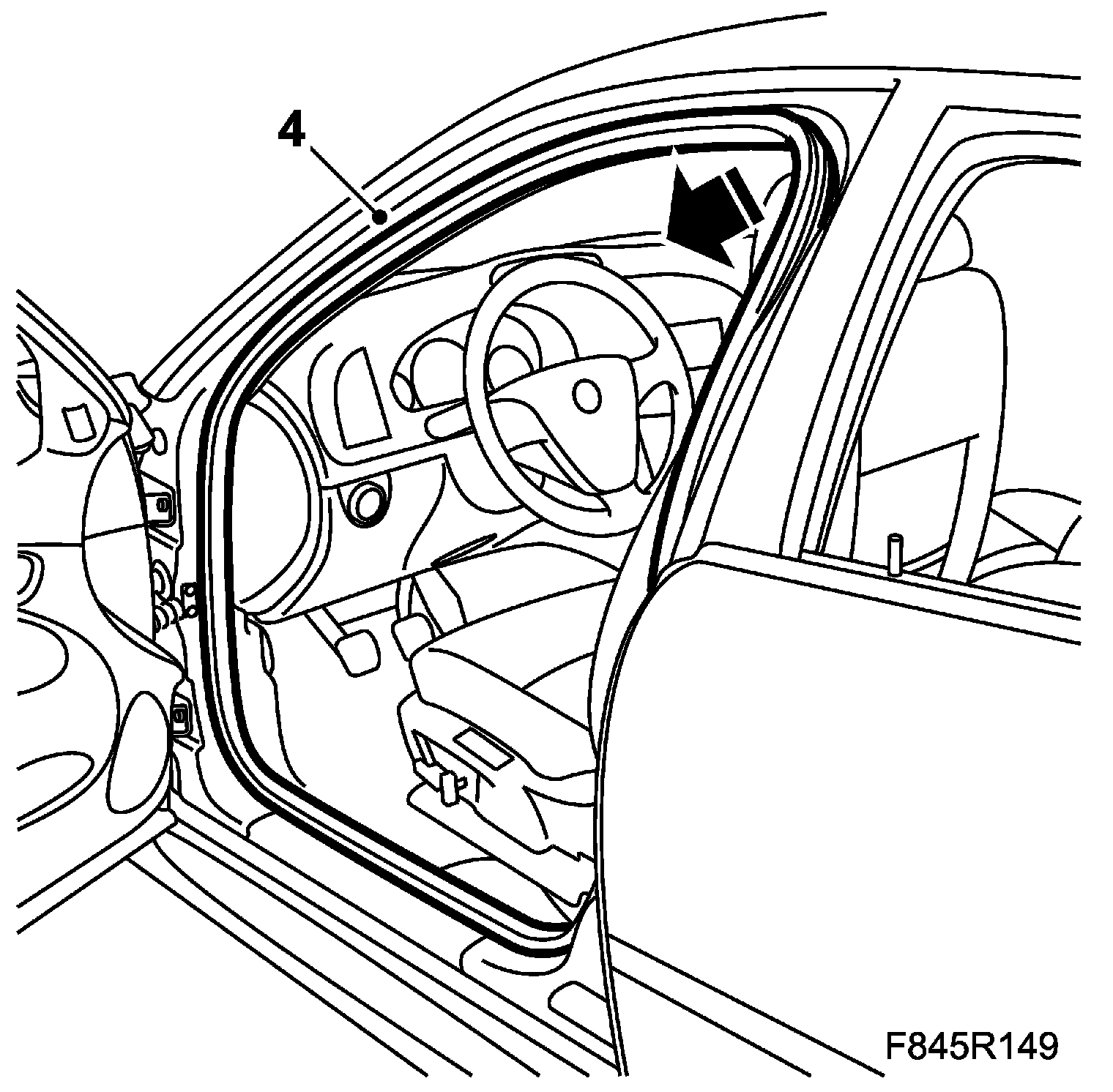

4. Remove the [1][2]front door weatherstrip by carefully pulling it straight off the metal flange.





To fit

1. Fit the [1][2]front door weatherstrip. Use a rubber hammer so that the weatherstrip is properly located.

NOTE: If replacing the weatherstrip, the installation strap must be removed once all components have been installed.





2. Fit the lower A-pillar panel.
3. Fit the B-pillar trim.
4. Fit the A-pillar trim.
5. When fitting a new weatherstrip, remove the installation strap to be able to position the inner tab of the weatherstrip.
