Body/Frame - MIG Brazing

Bulletin Number: 03-07-801

Date: July 2003

Market: All

MIG brazing, EU

Cars affected
Saab 9-3 (9440) CV M04-

Background

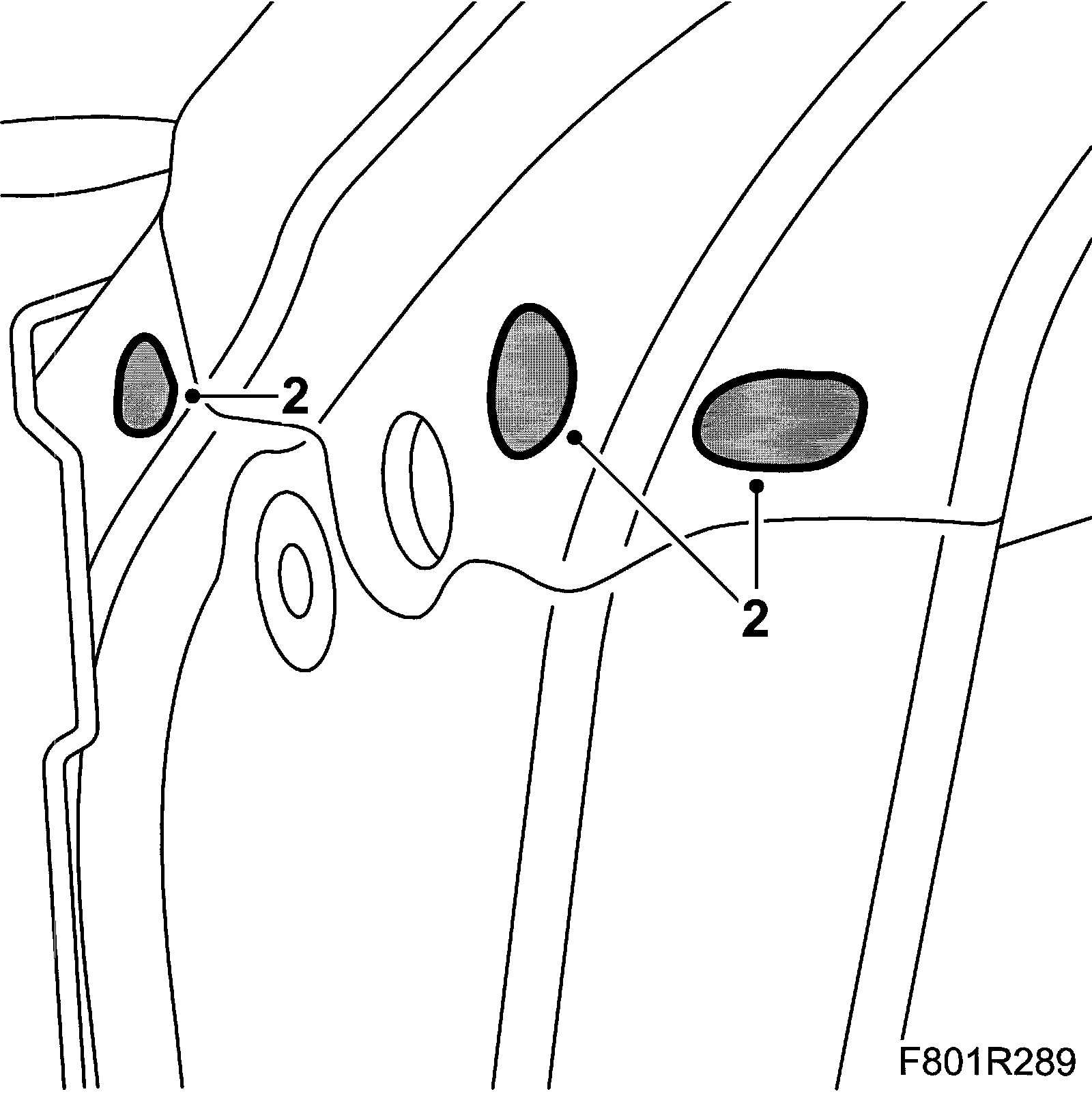

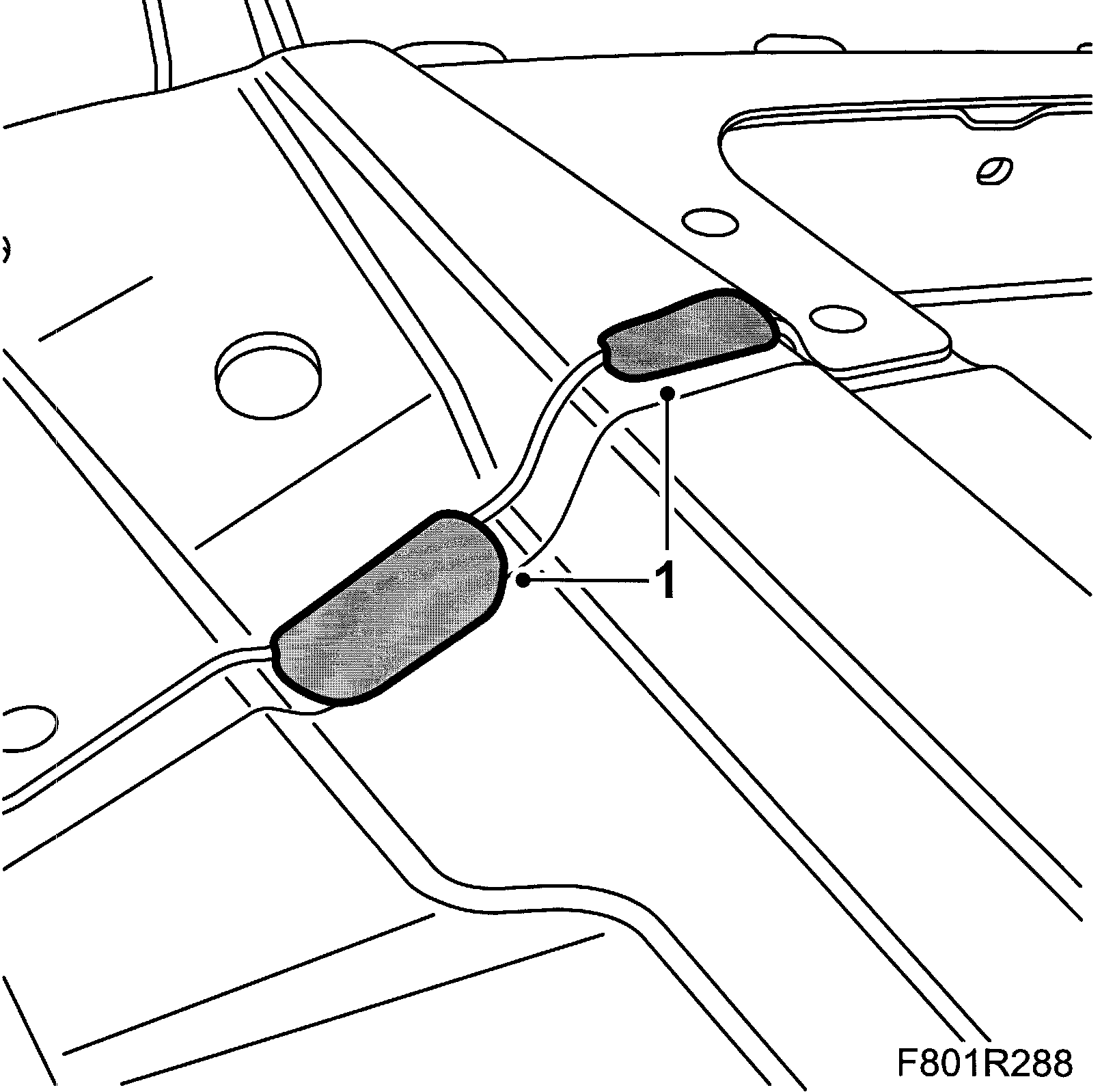

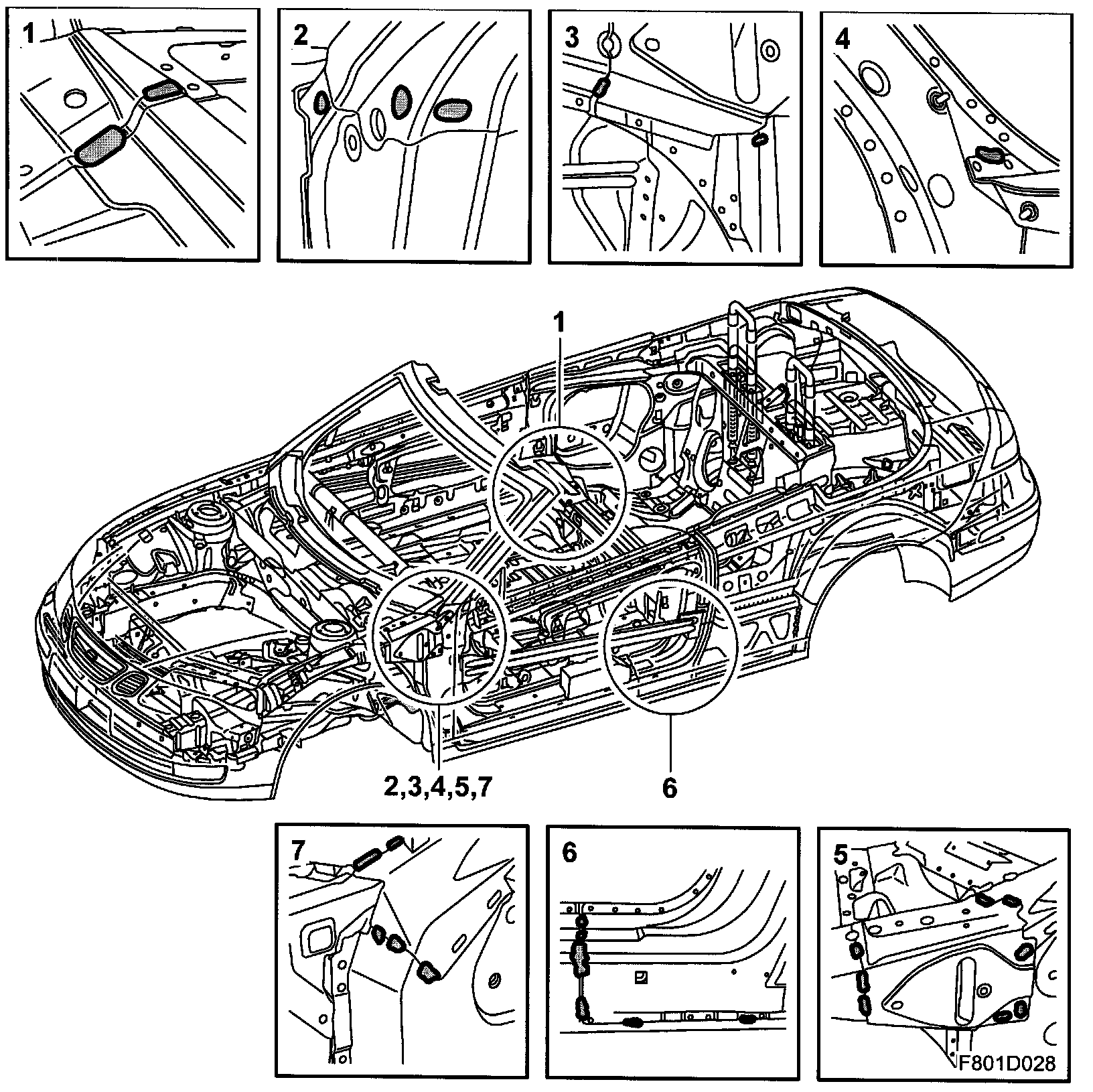

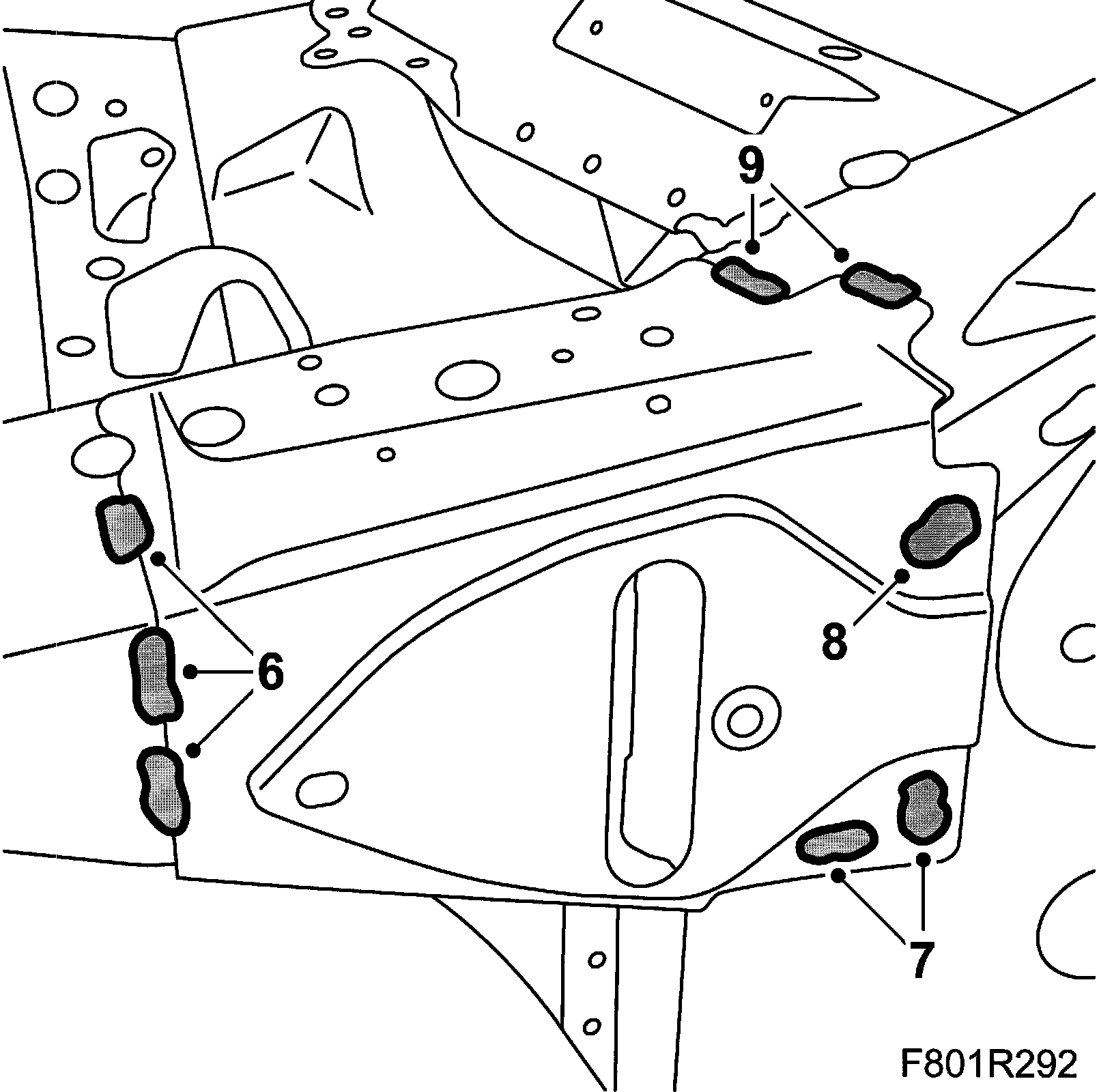

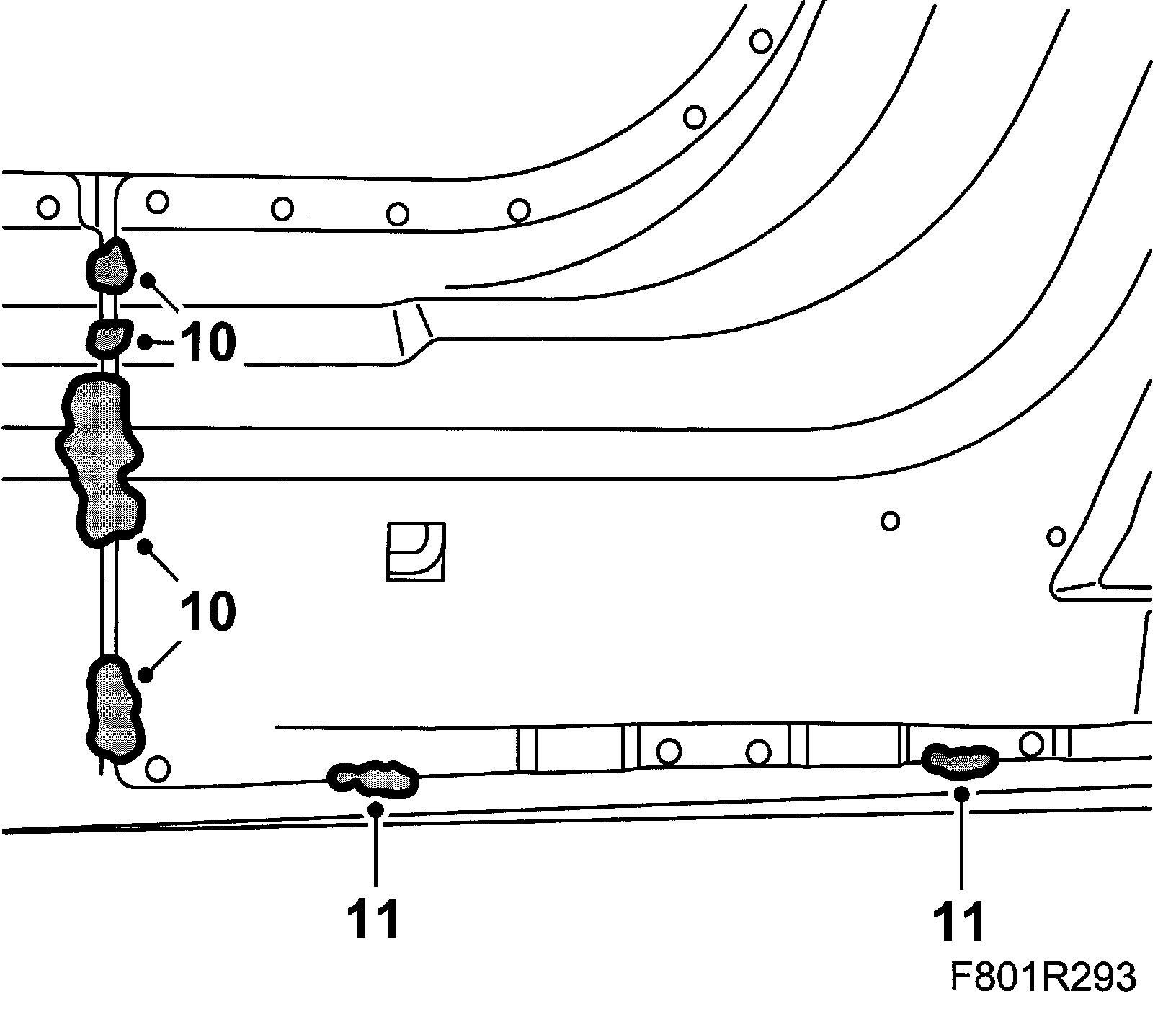

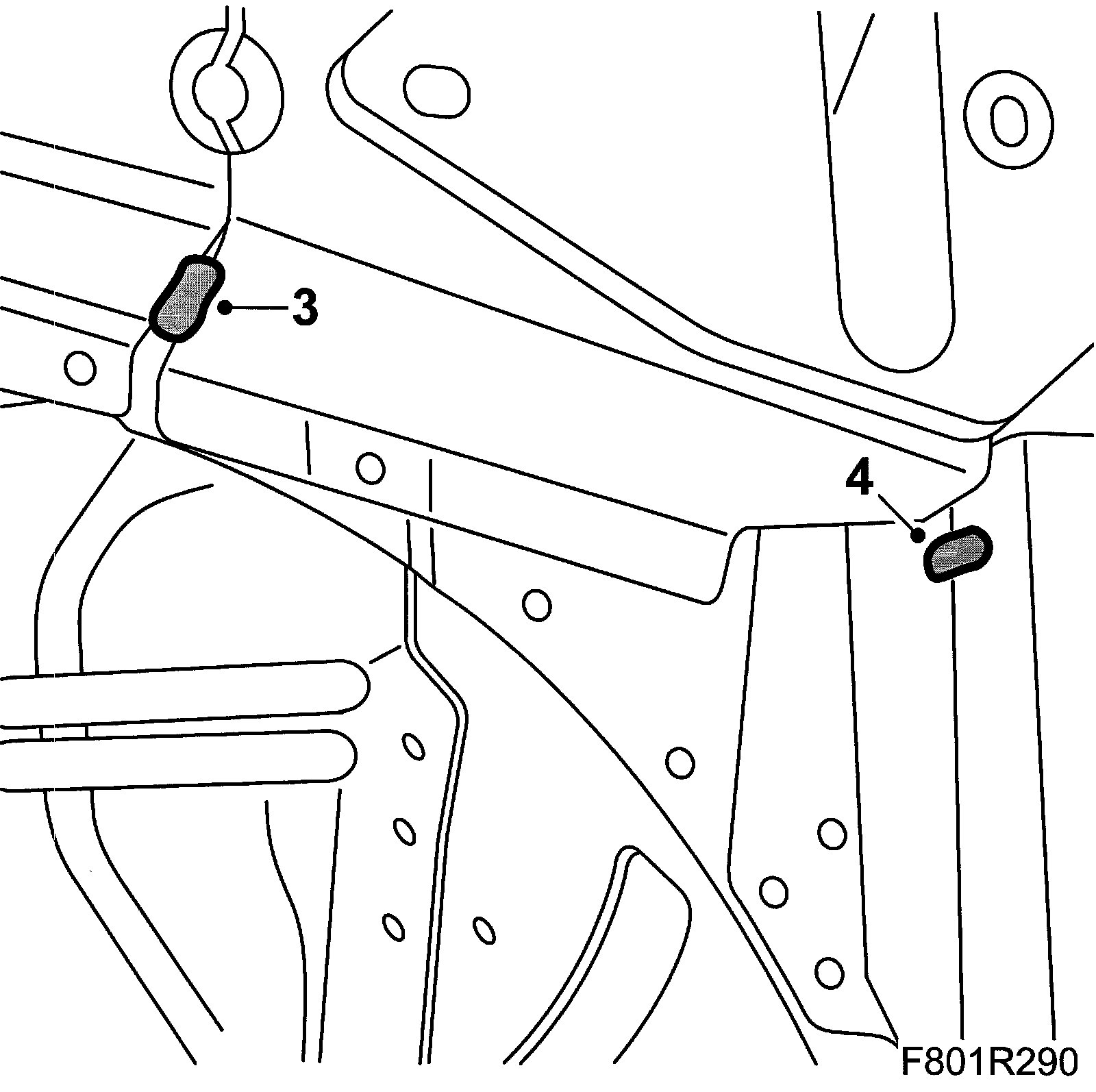

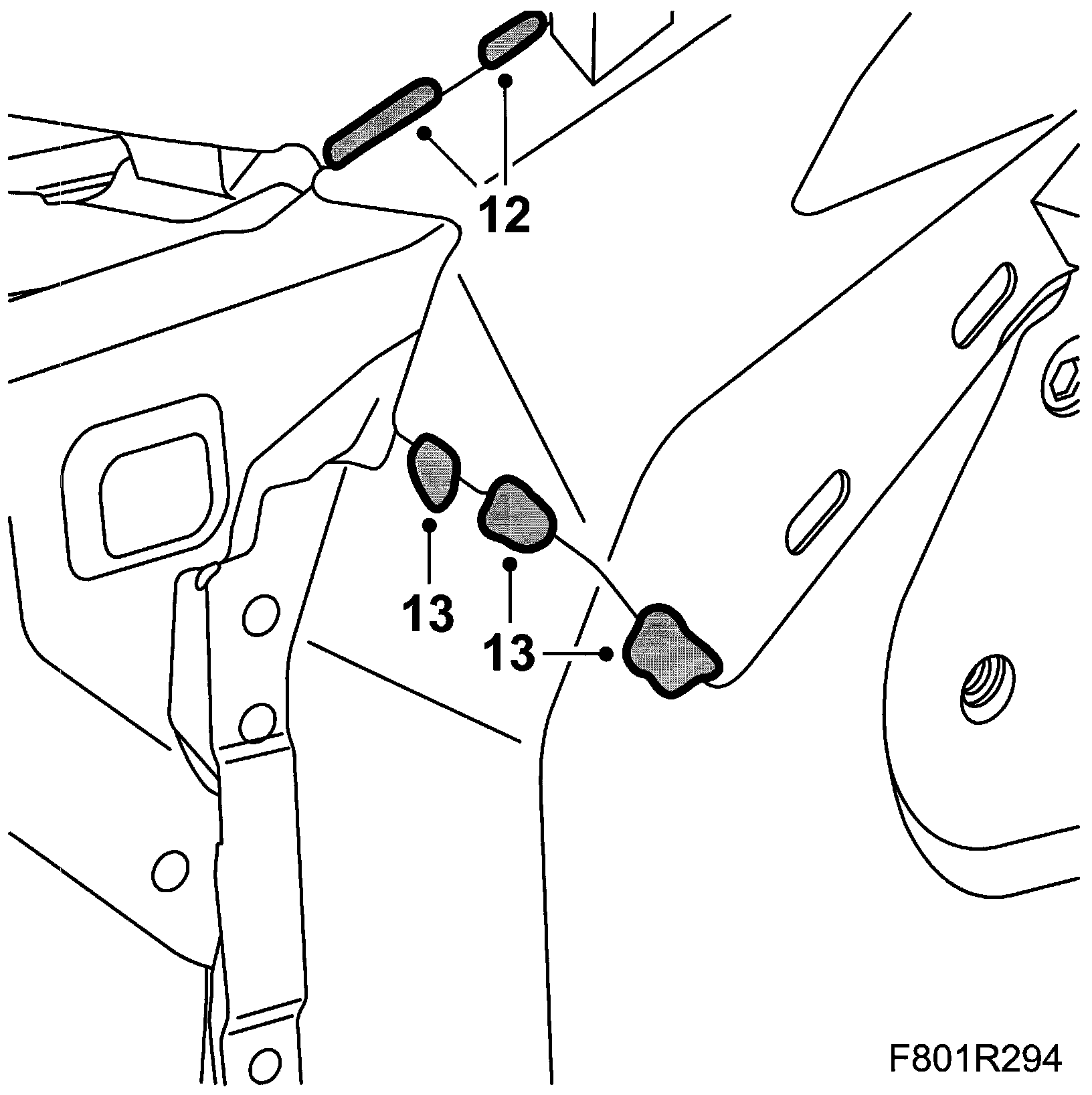

Some weld joints on the car have been replaced by a new type of weld joint using bronze rod, "MIG brazing". The areas affected are at the sill, the windscreen frame and the A-pillar. The distinctive feature of MIG brazing is that it is gold in colour.

For plate-metal damage where there is MIG brazing there is a new procedure and a new type of equipment is required. Before the Saab workshops have been trained and procured new equipment, damaged cars having MIG brazing must be taken to the nearest Opel workshop which has MIG brazing equipment. There is an "Opel Dealer MIG Brazing equipment" list in our IRIS database under Service Information - Technical News - Group 8 Body- MIG-Brazing. The list will be updated regularly and will appear under "What's New?" in IRIS. Should the occasion arise that an Opel authorized workshop does not have suitable equipment, contact one of the six approved suppliers for support. The list of "MIG-Brazing equipment suppliers" is in our IRIS database under Service Information - Technical News - Group 8 Body-MIG-Brazing.

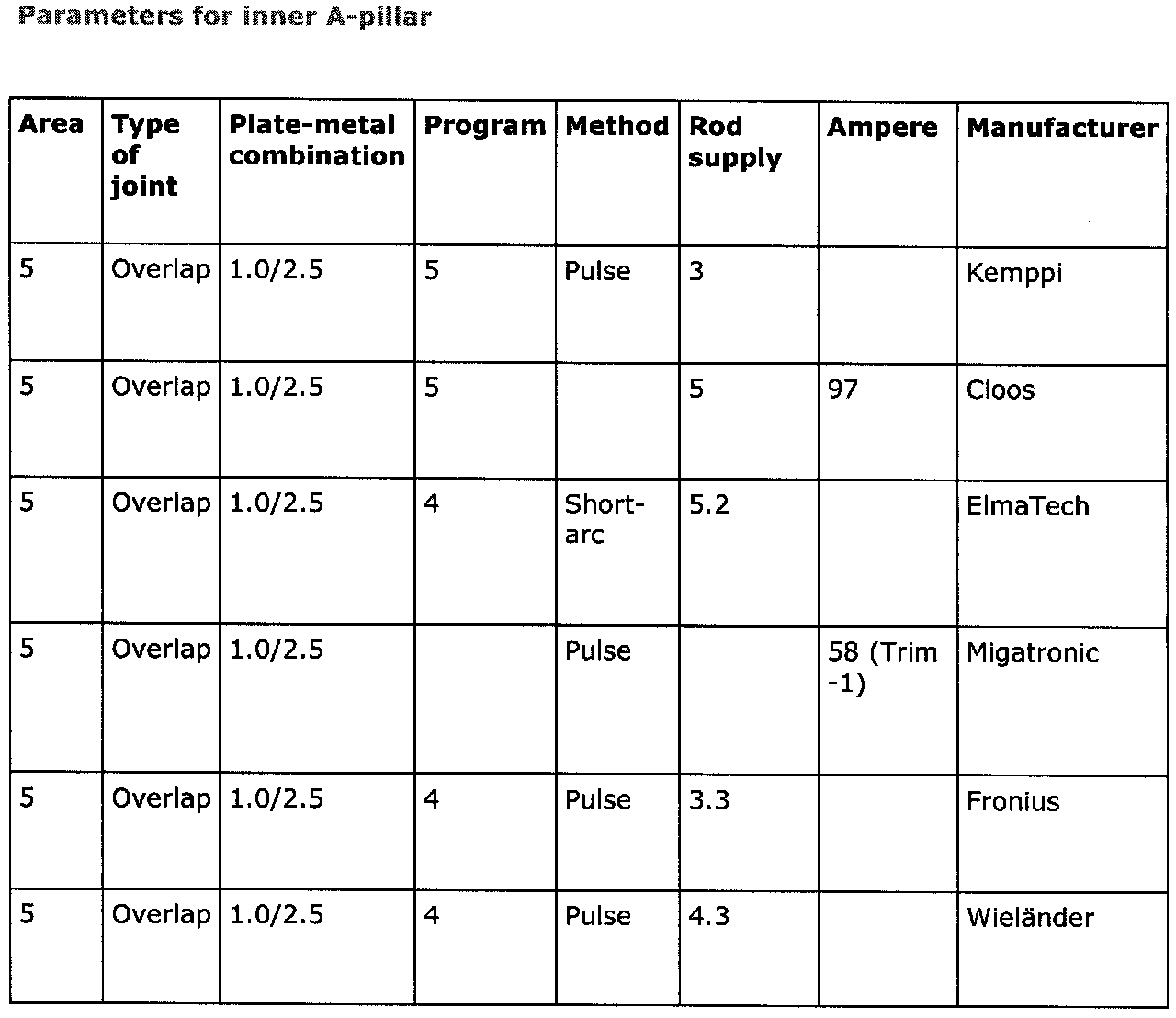

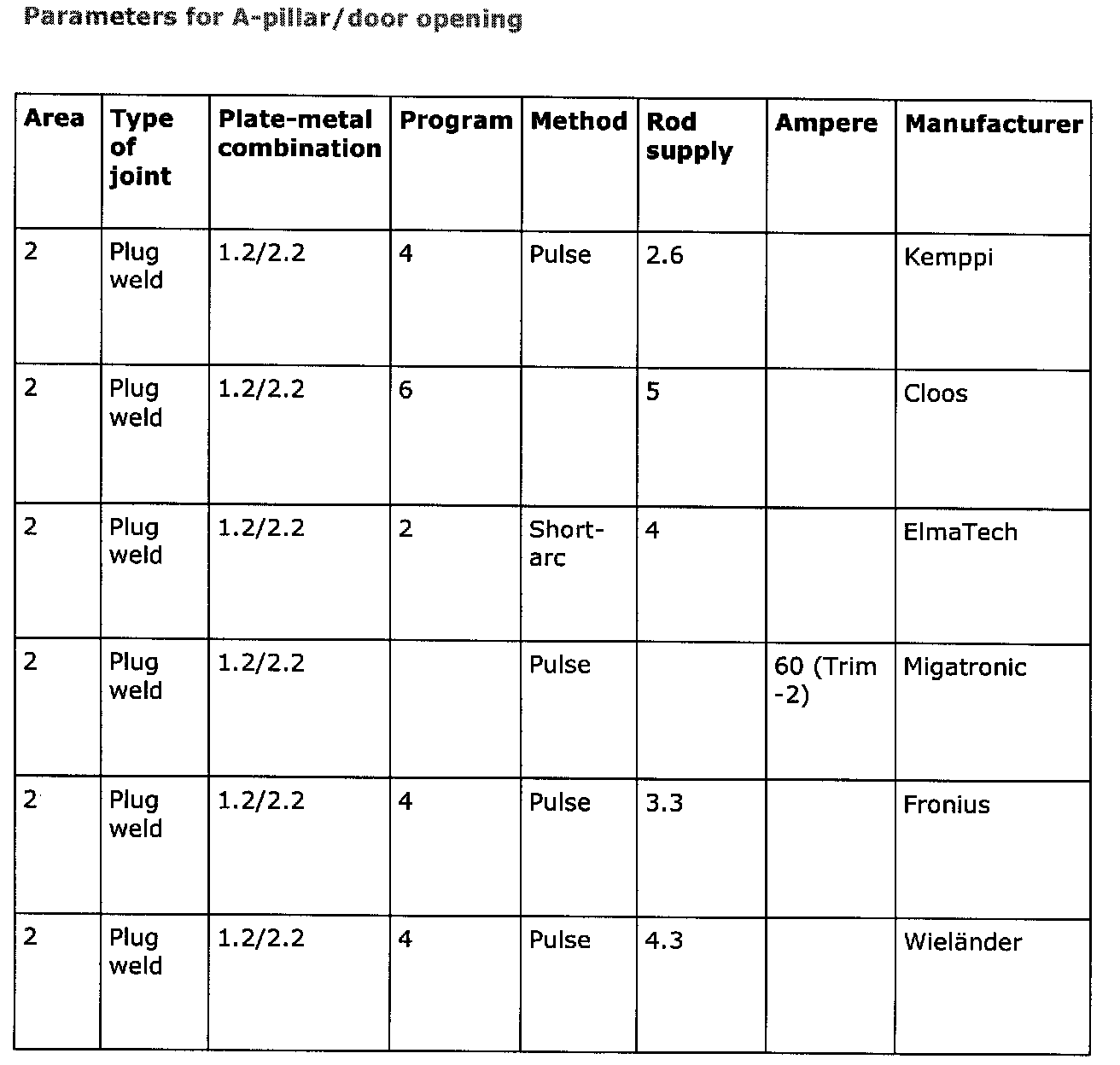

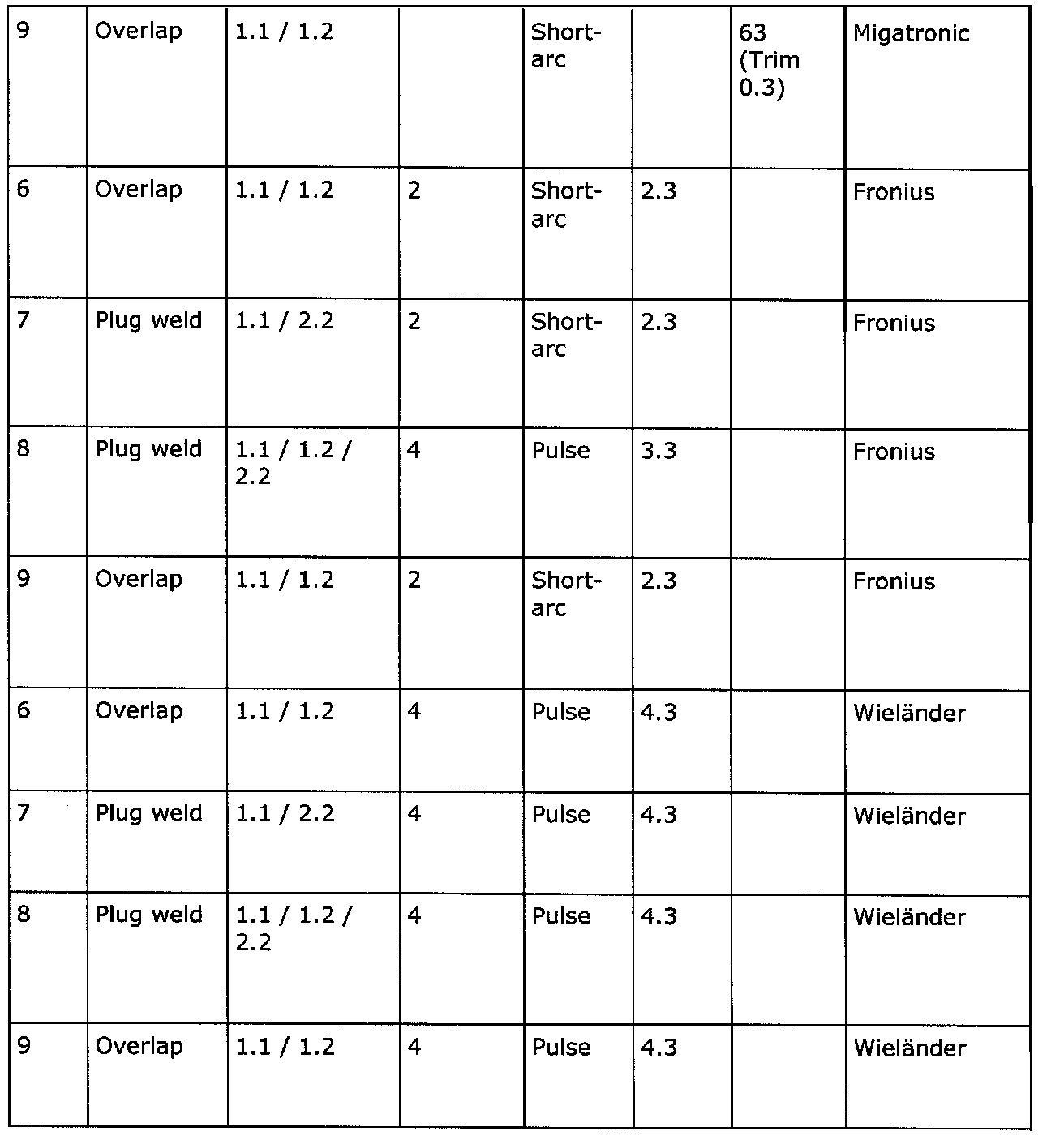

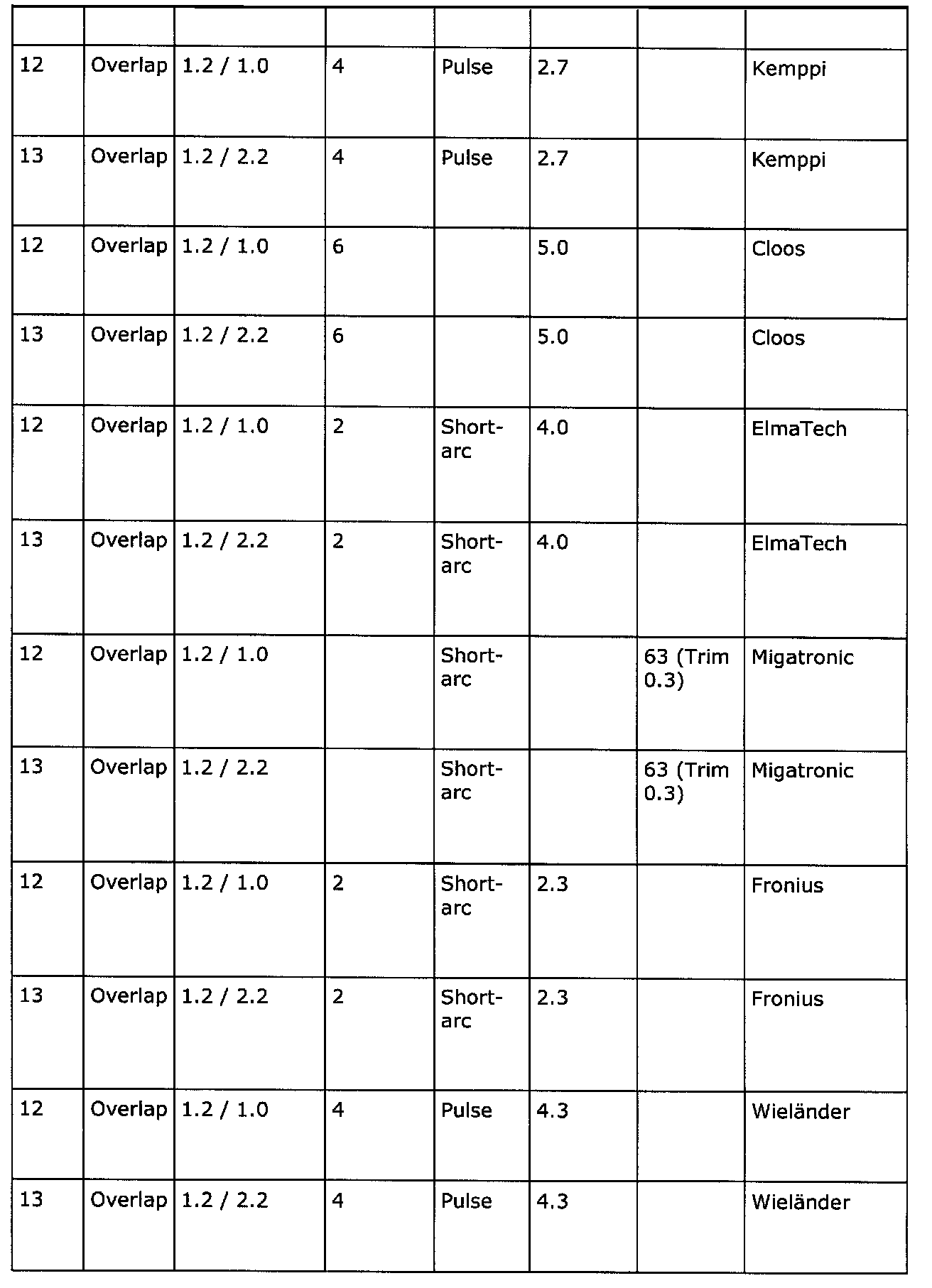

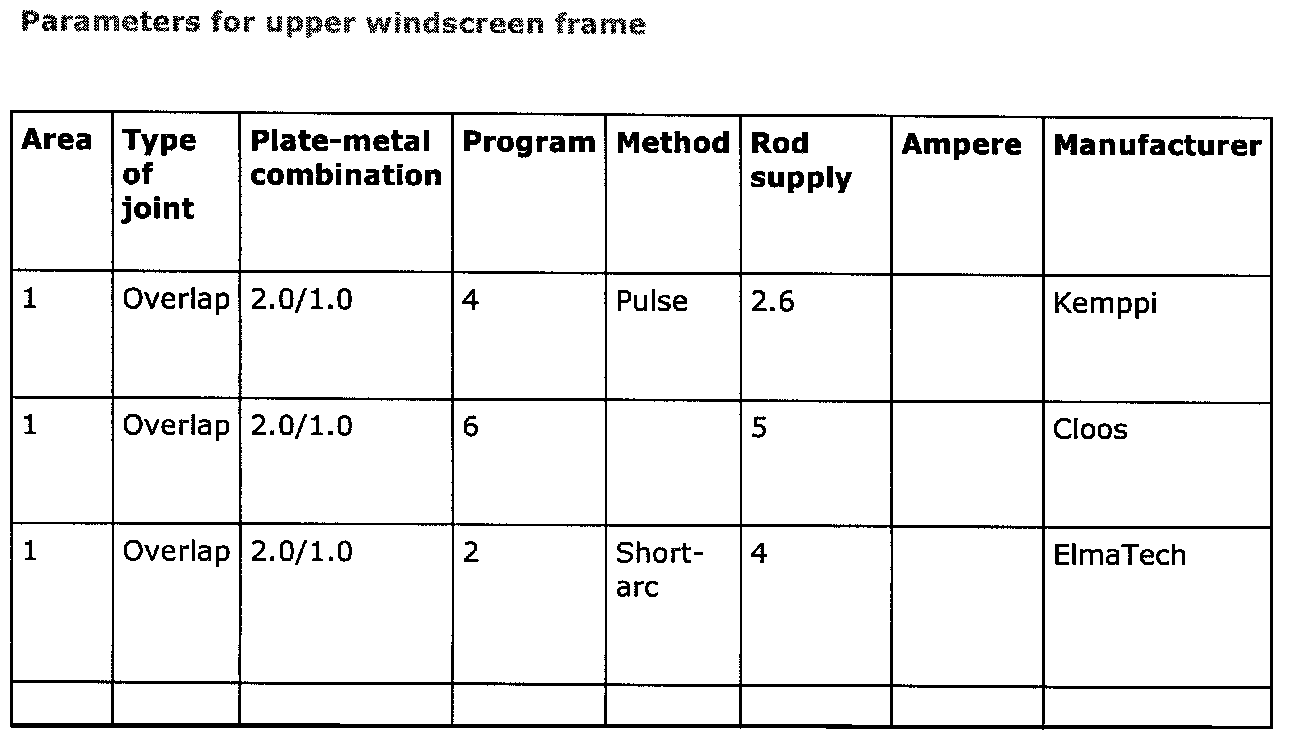

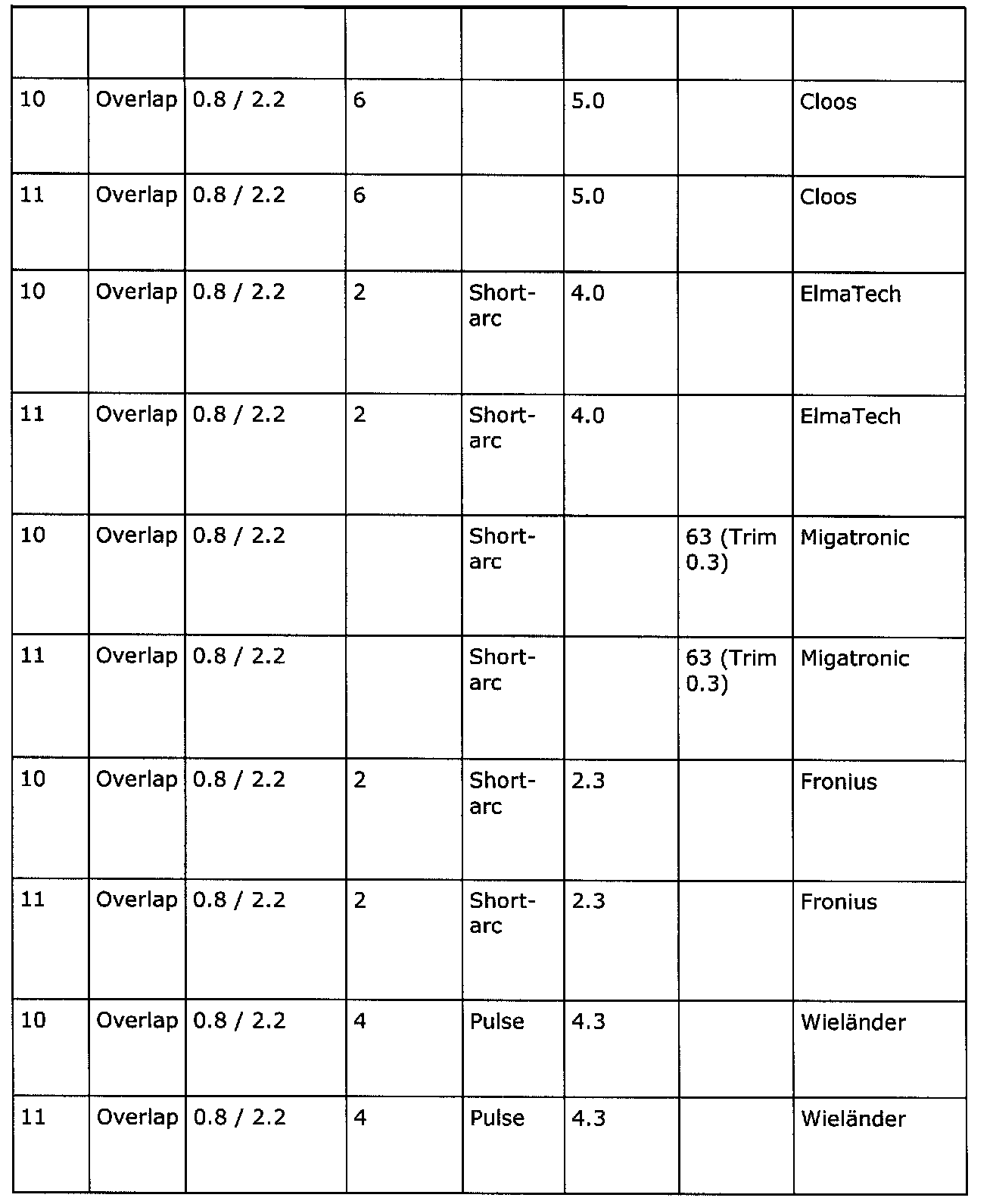

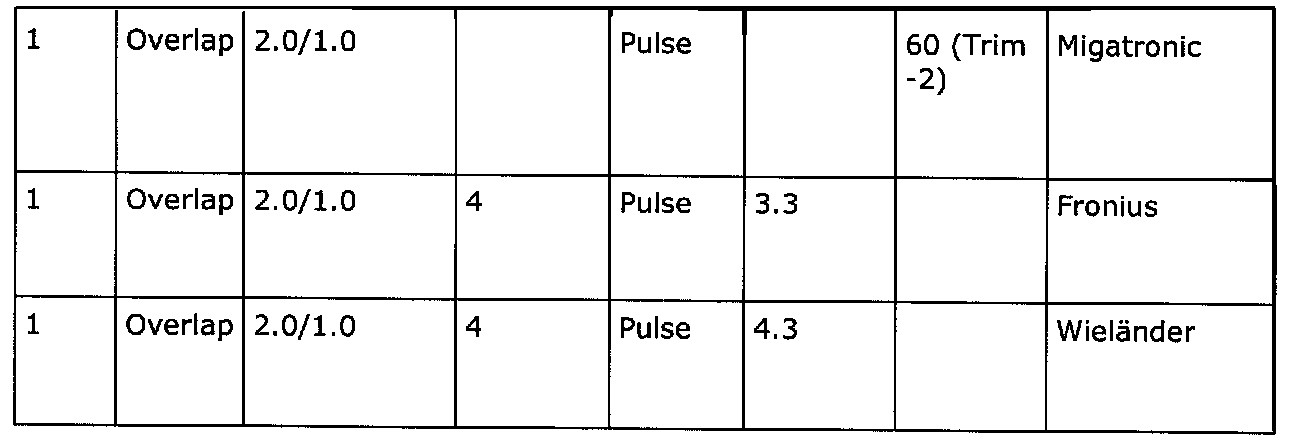

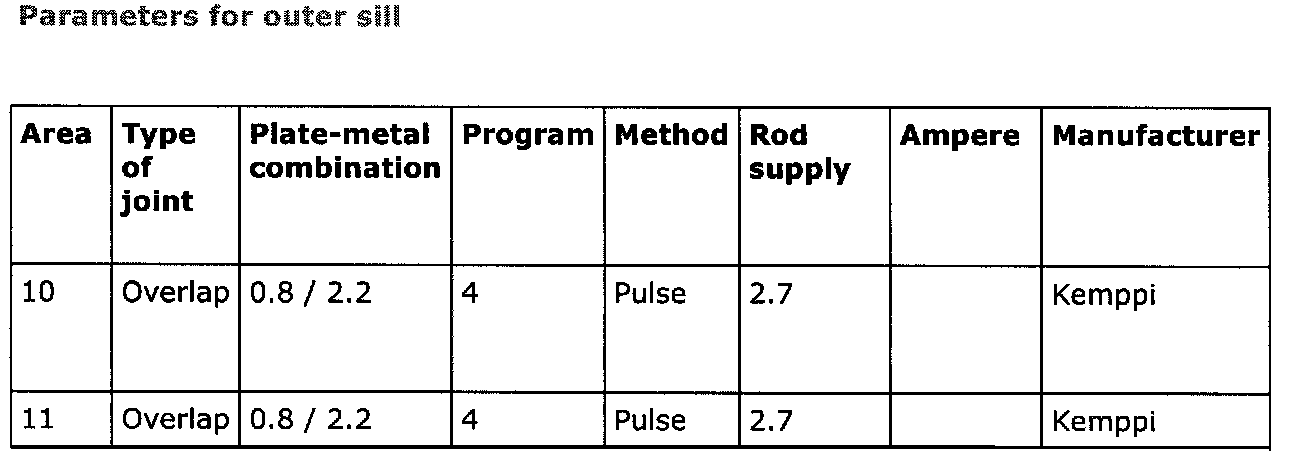

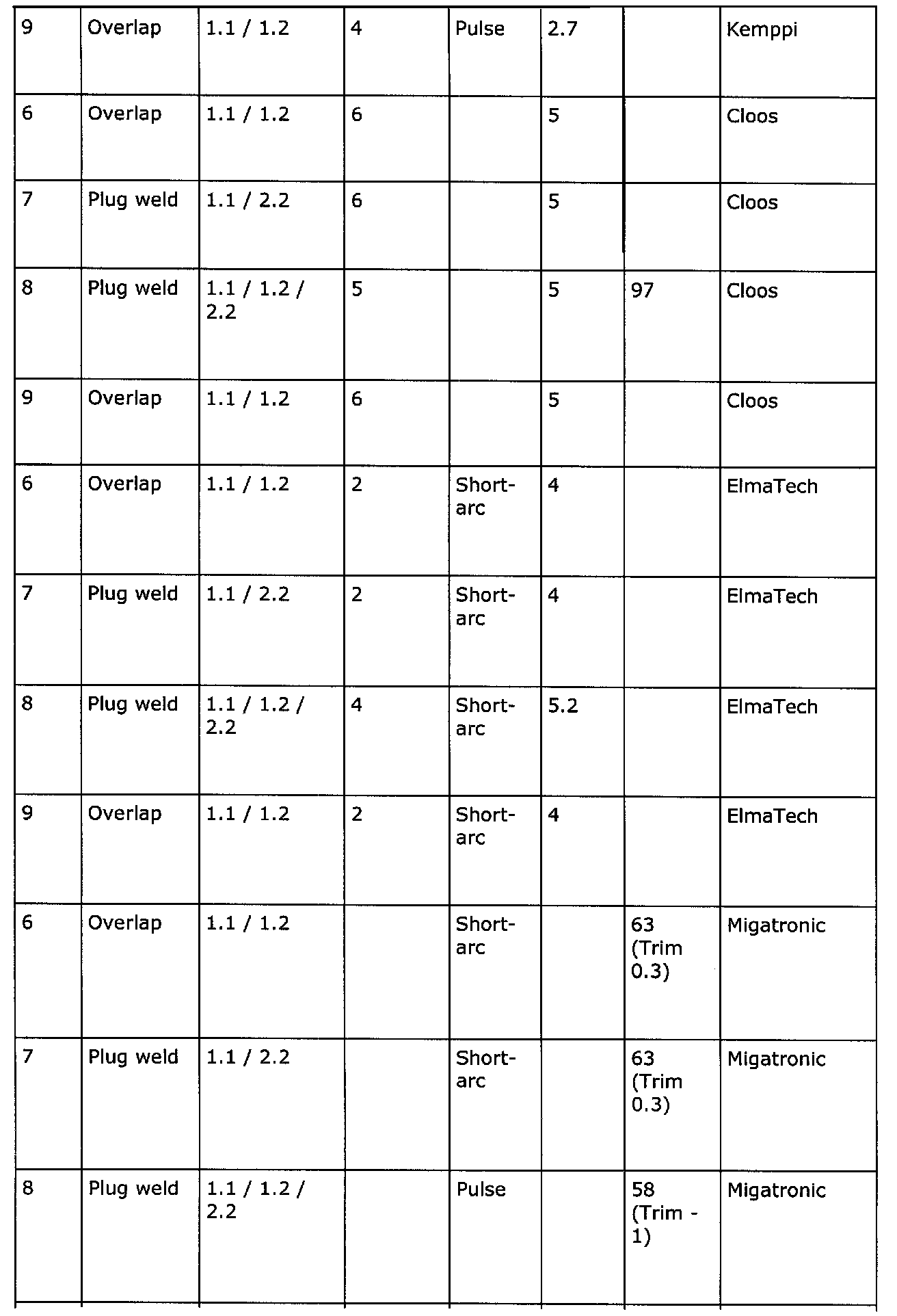

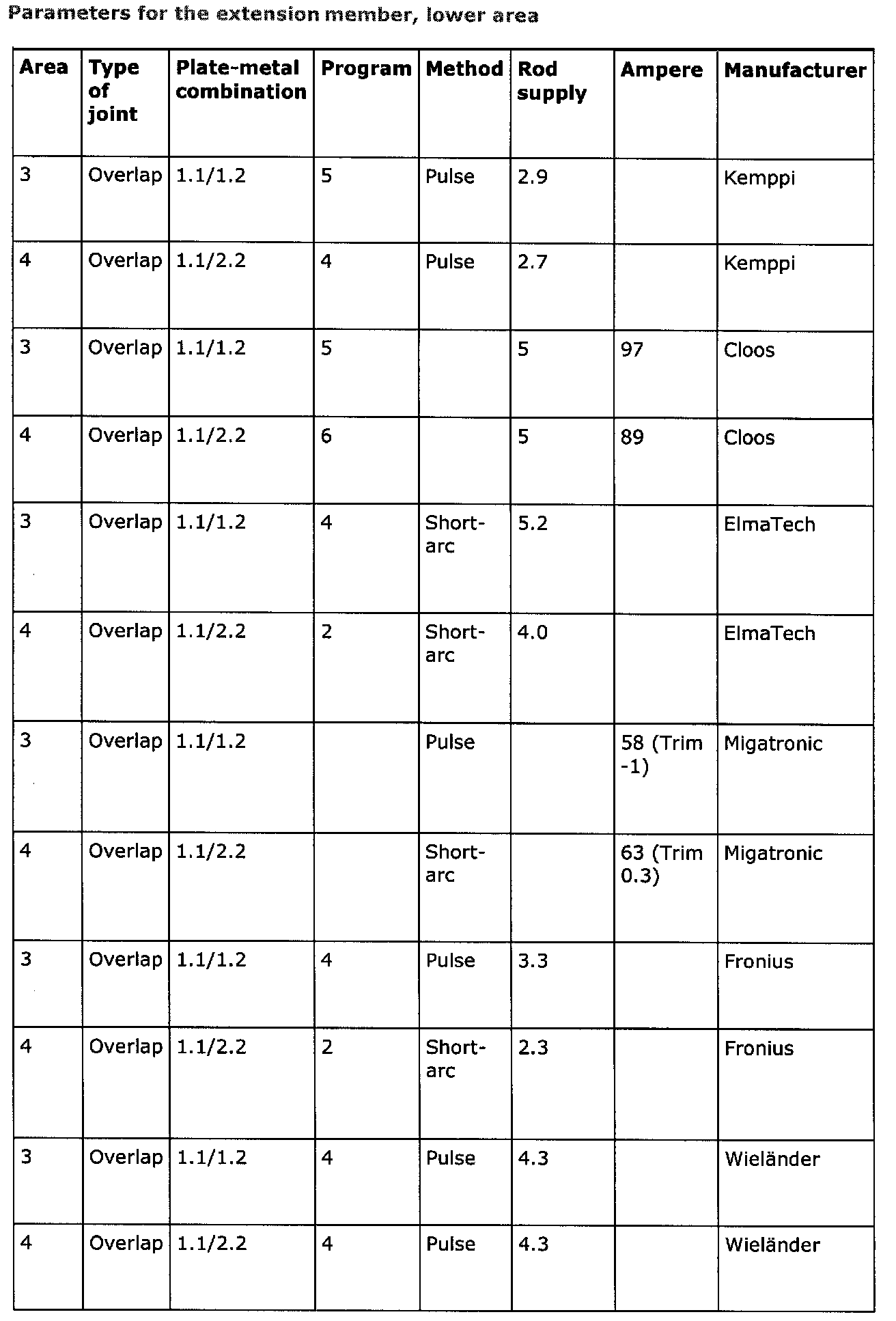

Depending on equipment and plate-metal gauge, different types of settings are required for the welding machine, "welding parameters". This TN contains parameters for six pieces of approved equipment. Make sure that Opel authorized workshops and independent workshops engaged have parameters for the localized areas as well as the method concerned from WIS. In all cases pure argon gas must be used and the welding rod must be 1 mm.
