Switch For Bootlid Opening

Switch For Bootlid Opening

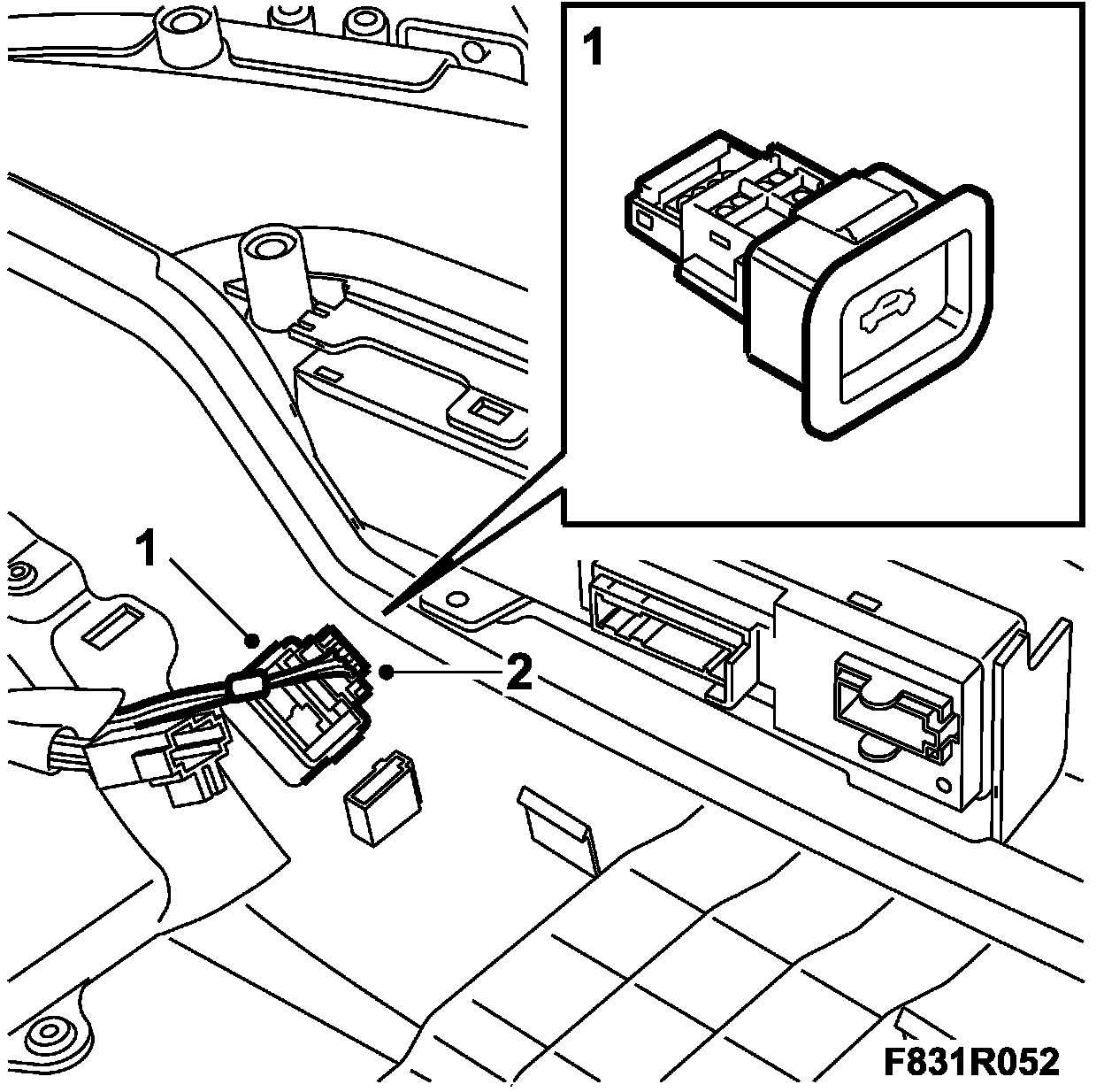

Removing

1. Remove the Front door trim.
2. Remove the switch's connector.





3. Push in the switch's snap-in holder and remove the switch.

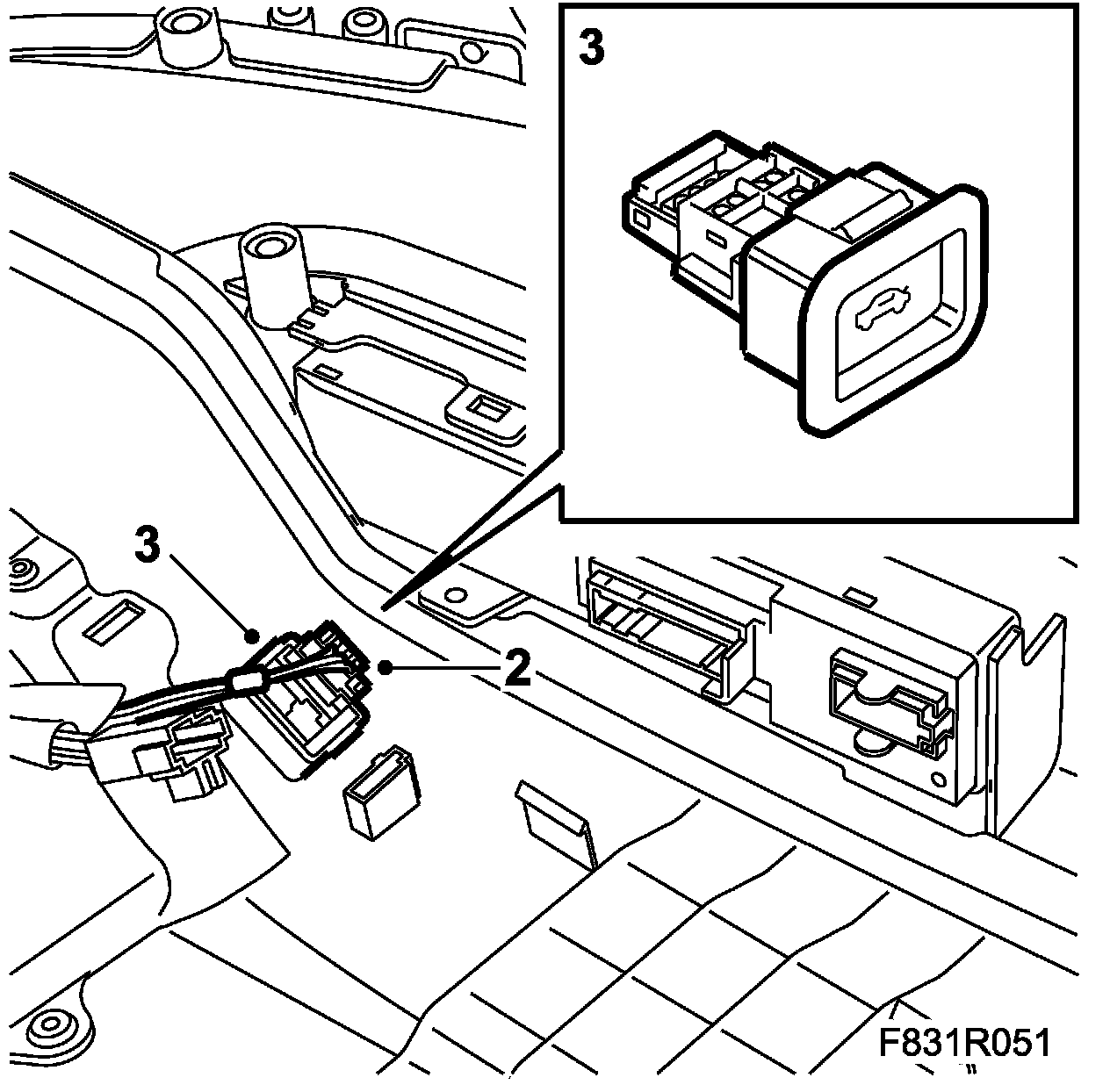

Fitting

1. Push in the switch and ensure the clips are secured.





2. Fit the switch connector.
3. Fit the door trim.
4. Cars with pinch protection: Perform Programming of the pinch protection.
