Switch, Electrically Adjustable Driver's Seat With Memory (357D)

Switch, Electrically Adjustable Driver's Seat With Memory (357D)

Location







Main task

To enable operation of the seat motors that move the seat lengthways, change the seat height and angle plus backrest reclining angle.

Type

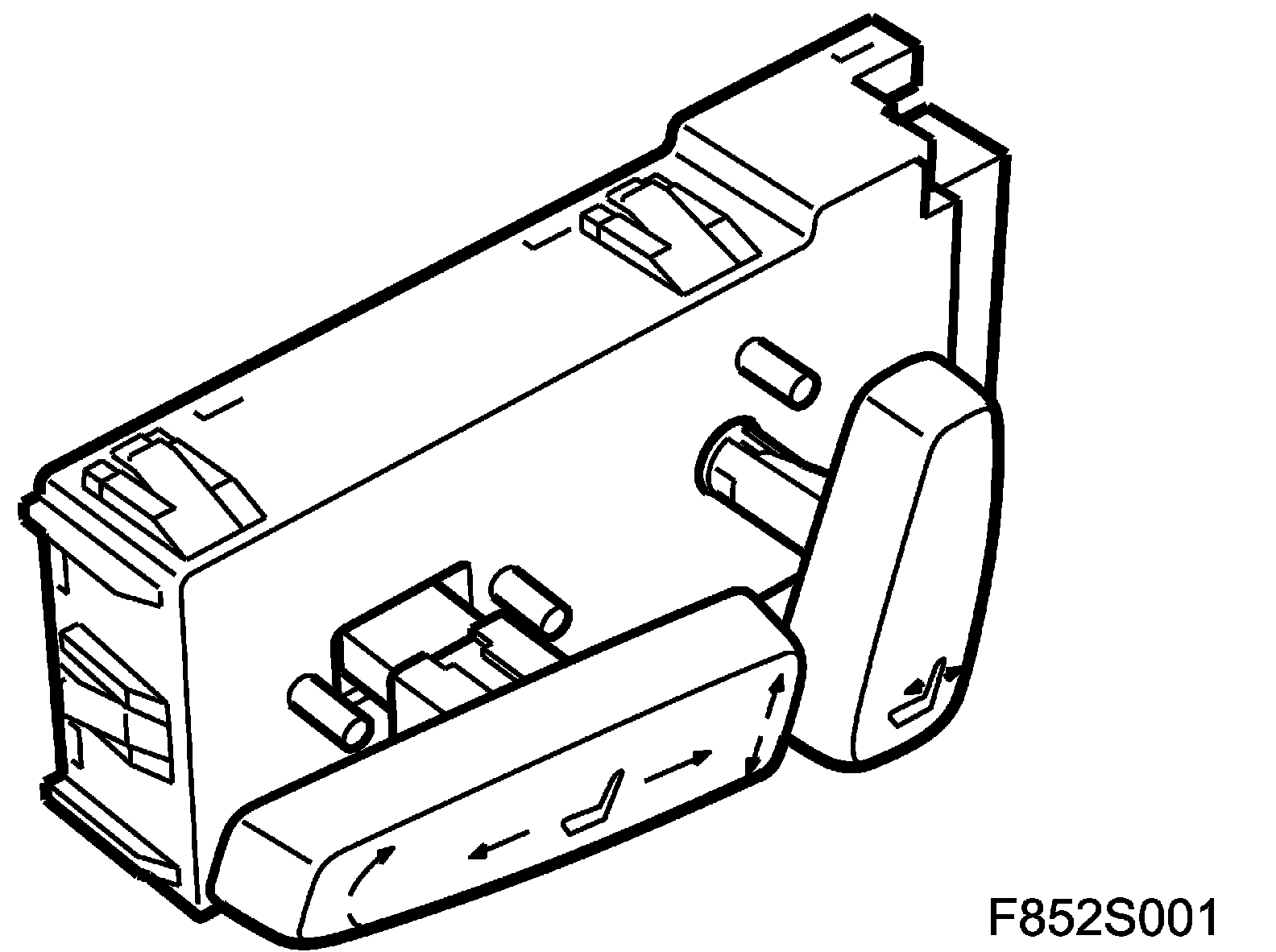

The switch unit comprises a number of switches.

Connect

The switch unit is powered with B+ from the seat control module (357Dk) pin 28. When a switch closes, B+ is fed back to the corresponding switch input on the control module. The voltage then changes from 0 V to B+.

The switch is connected to the control module and affects the following motors:
^ electric motor (357a) moves the seat backwards and forwards
^ electric motor (357b) changes seat cushion angle
^ electric motor (357c) raises and lowers the seat
^ electric motor (357d) changes the backrest rake

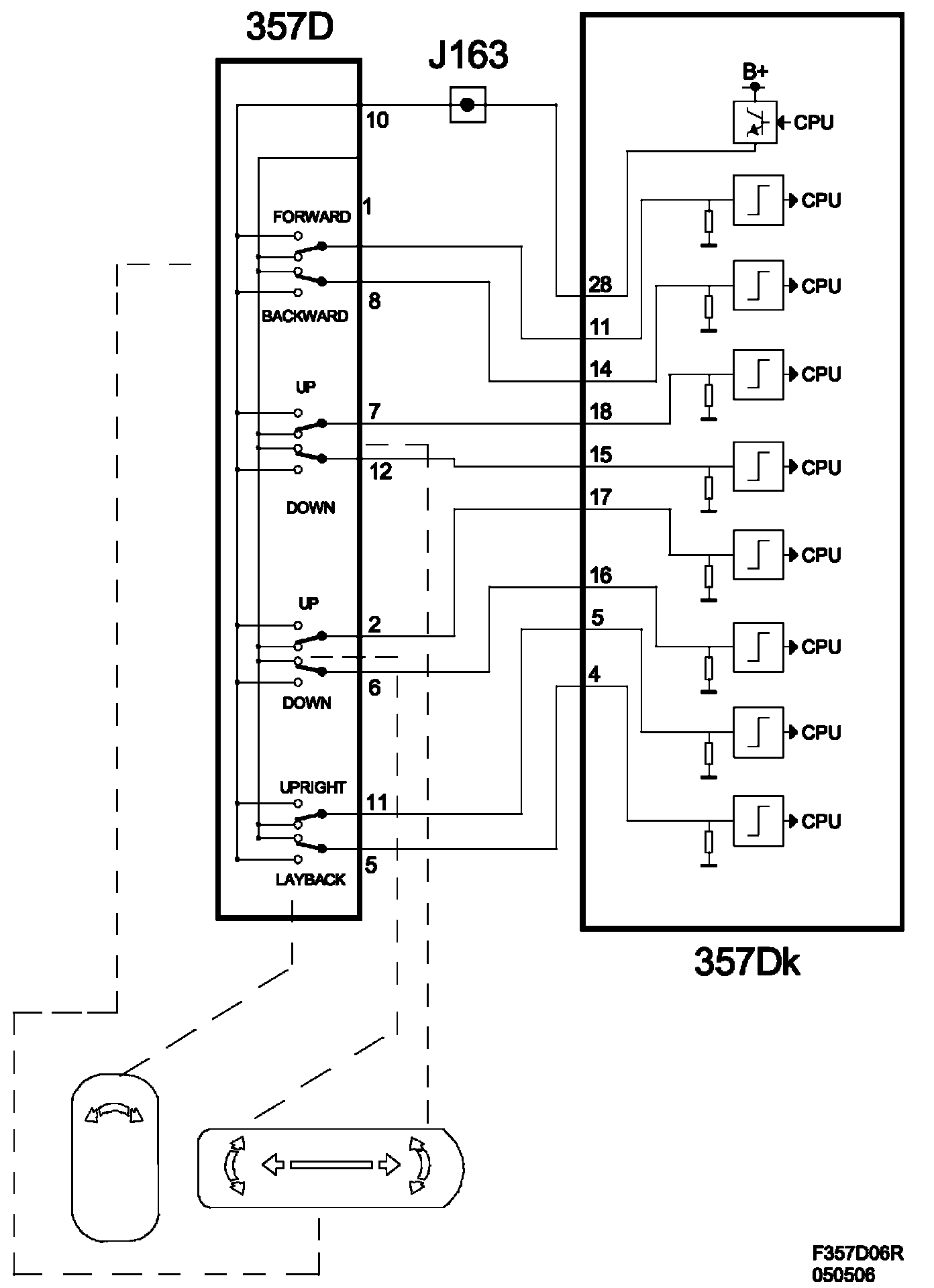

Diagram LHD







Diagram RHD
