Memory Switch, Electrically Operated Driver's Seat With Memory (357Dj)

Memory Switch, Electrically Operated Driver's Seat With Memory (357Dj)

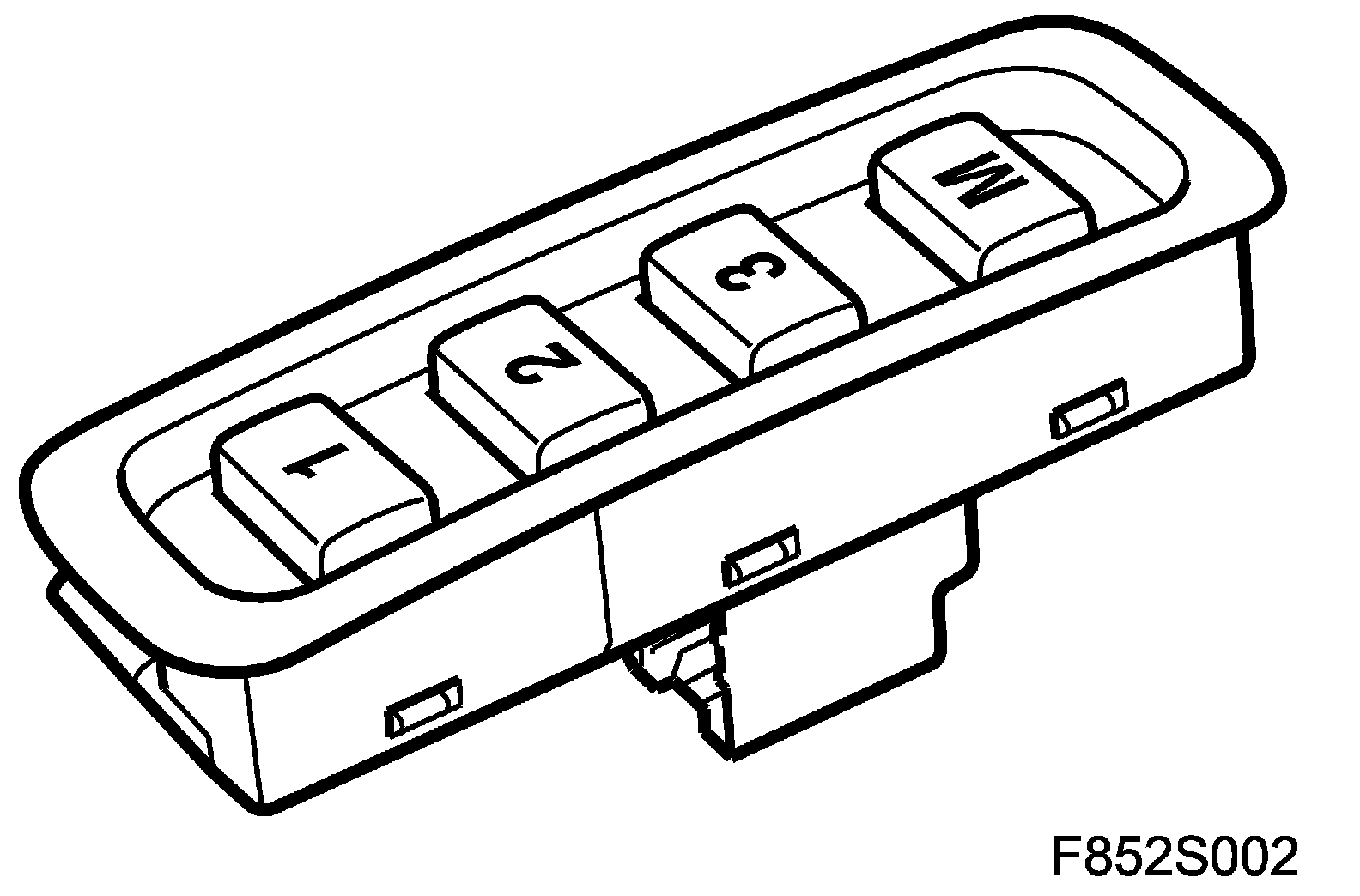

Location







Main task

Allows the driver to use the memory functions for the seat and door mirrors.

Type

The switch unit comprises four single-pole switches.

Connect

The switch unit is powered with B+ from the seat control module (357Dk) pin 28. When a switch closes, B+ is fed back to the corresponding switch input on the control module. The voltage then changes from 0 V to B+.

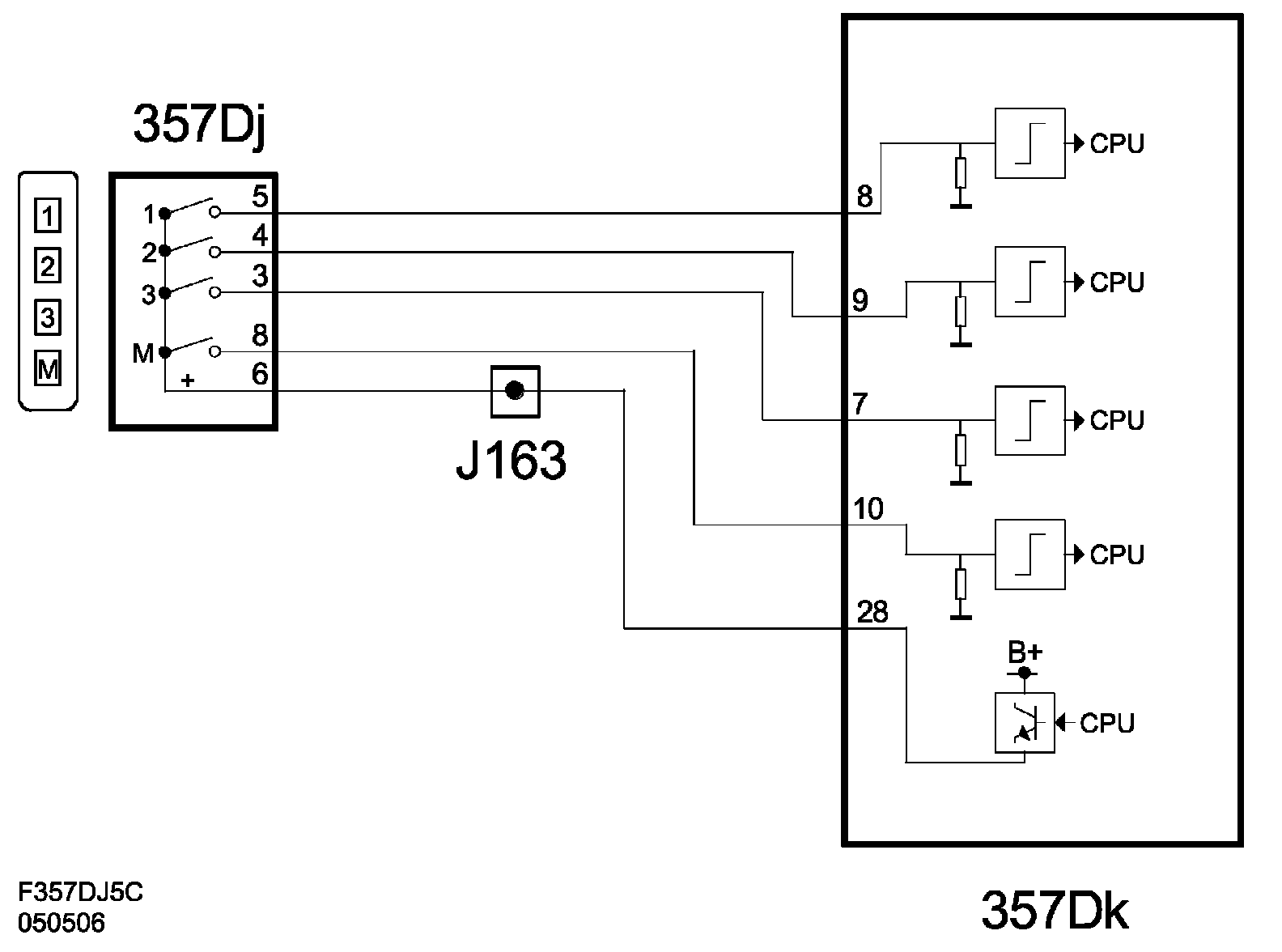

Diagram 4D/5D

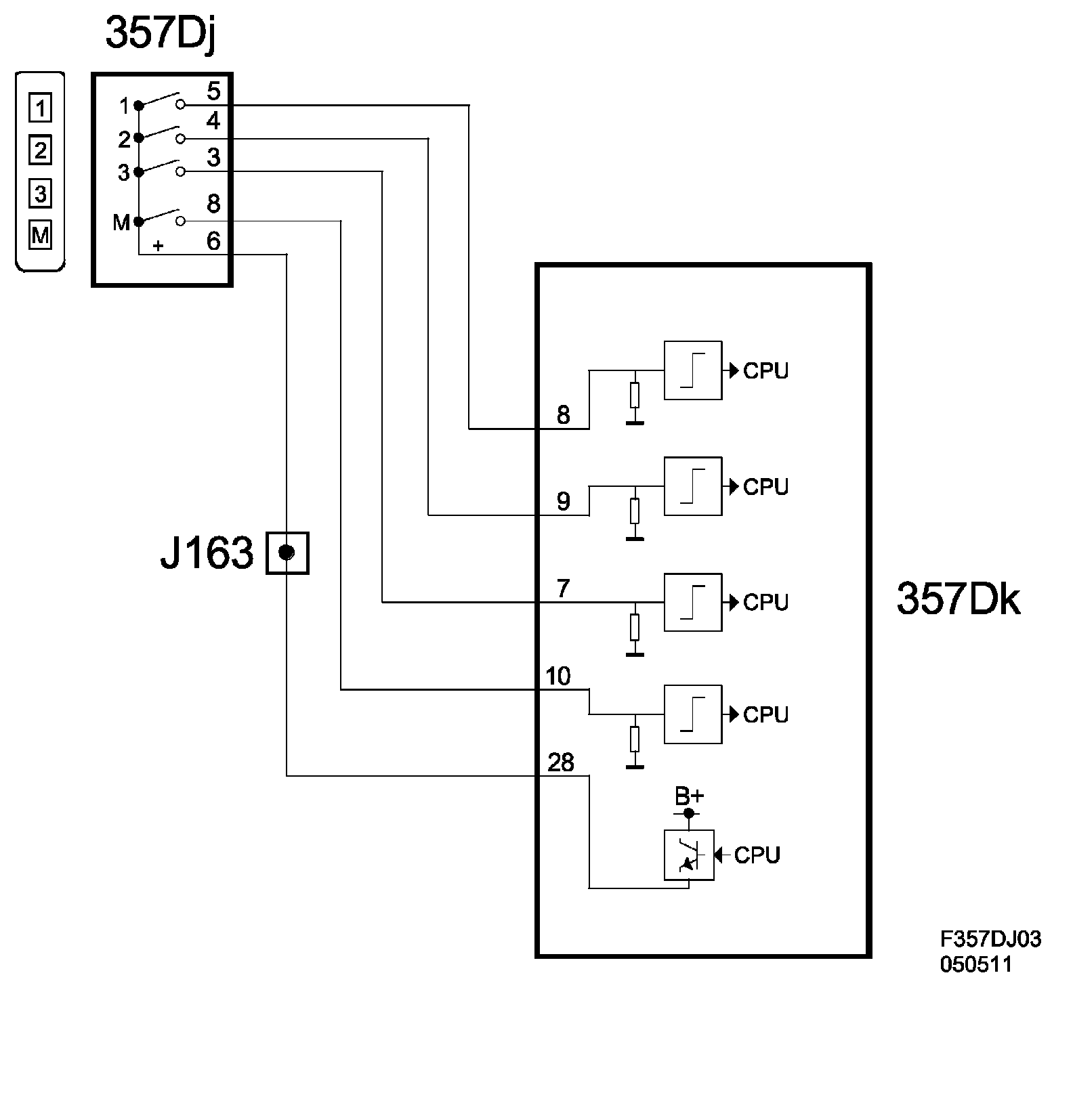

Diagram CV
