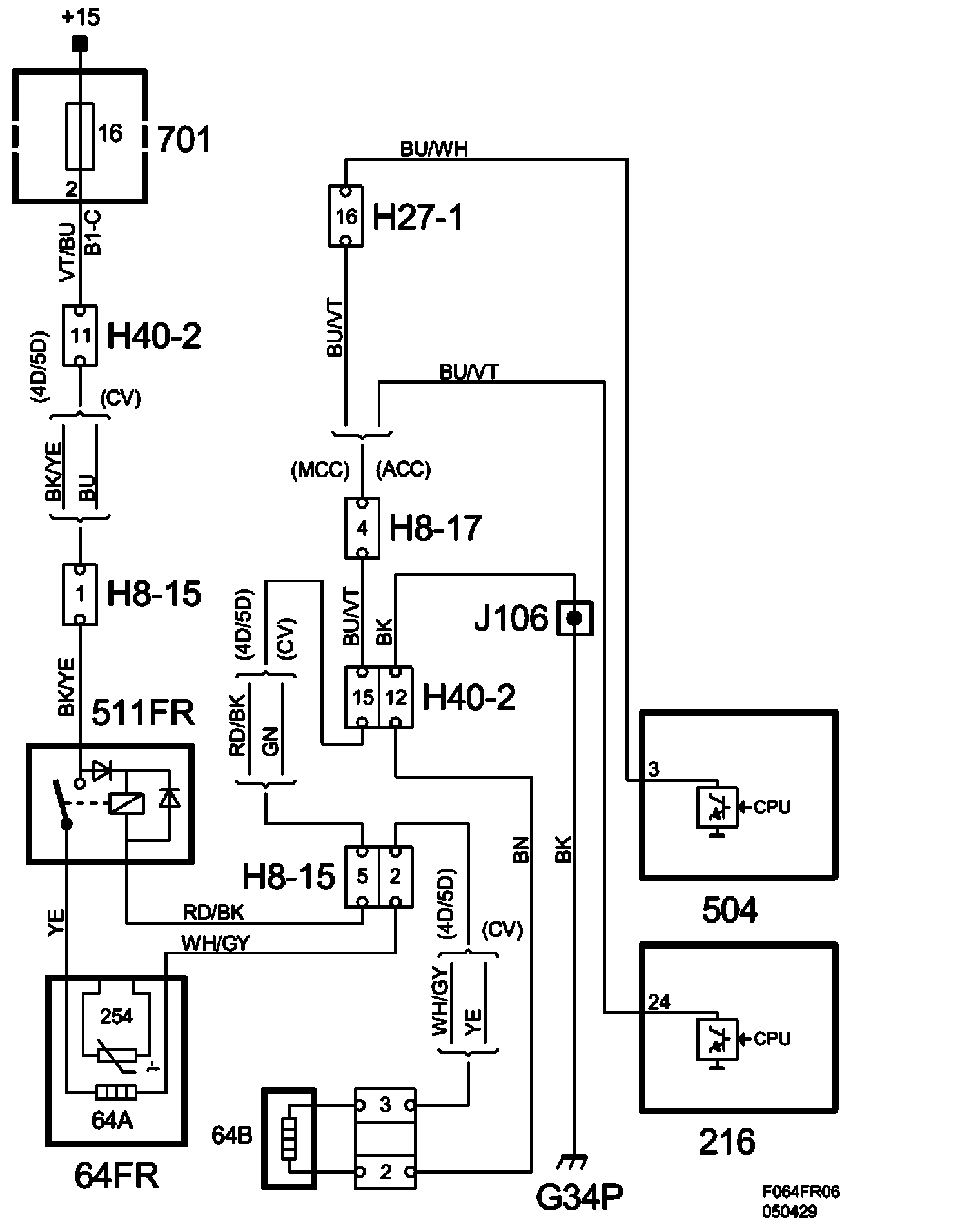

Heated Seat, Right-Hand Front, Inoperative



Heated Seat, Right-hand Front, Inoperative







Fault symptom

Heated seat, right-hand front, inoperative.

Conditions

Seat heating activated.
^ ACC

No DTCs stored with the fault symptom in question.
Seat heating lower than 20 degrees C.
Outside temperature lower than 15 degrees C.

Diagnostic help

Test value:
Seat Temperature Right
Seat Temperature Sensor Right
Ambient Temperature, Filtered
Seat Heating Right

Activate:
Seat Heating Right
(See also description of readings/activations in diagnostic tool)
