Cover, Belt Strap Guide, Front Seat, CV (Belt With Thin Tab)

Cover, Belt Strap Guide, Front Seat, CV (Belt With Thin Tab)

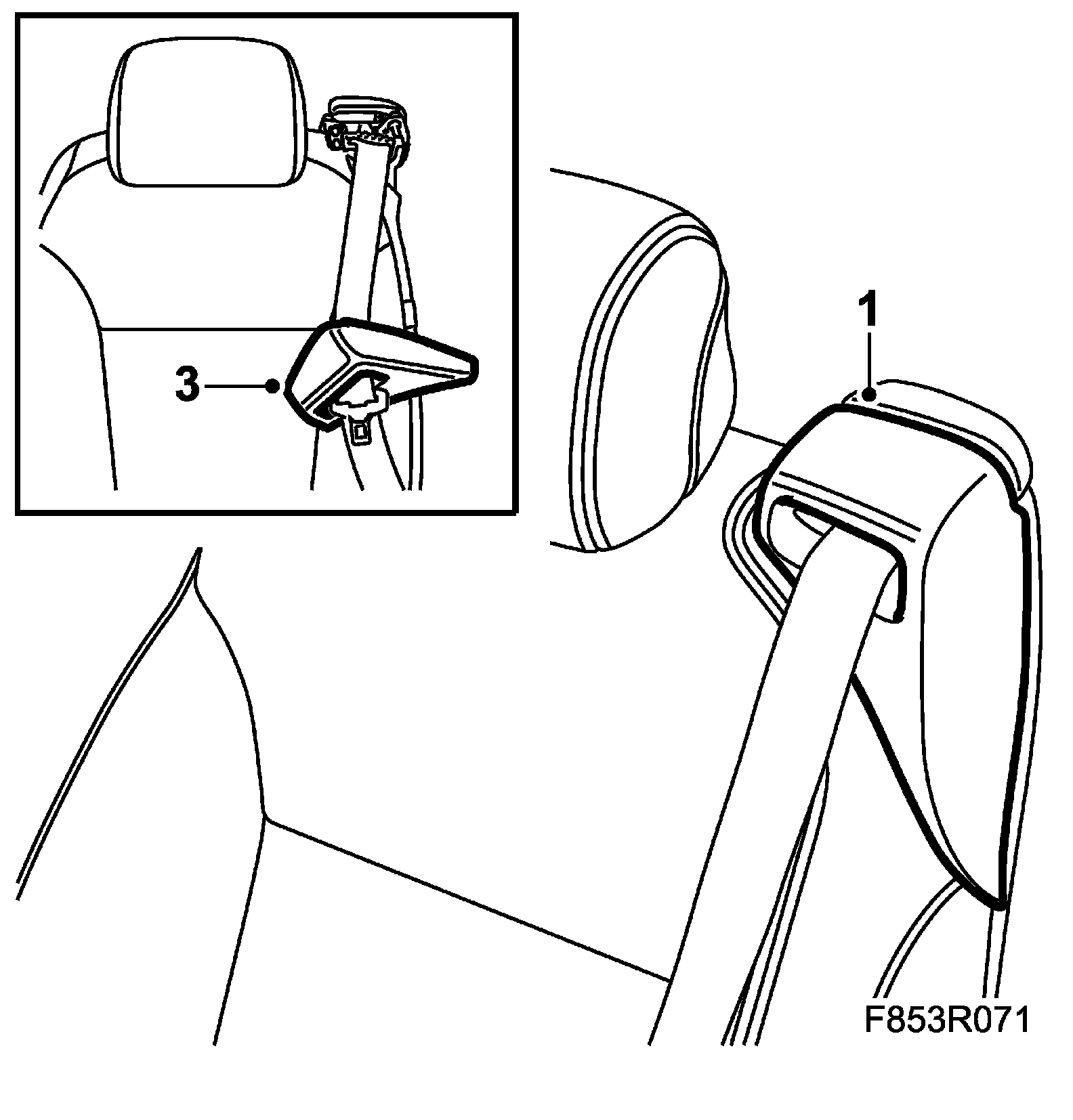

To remove

1. Remove the strap guide cover.







2. Electric seat: Remove rear outer seat cover.
Manual seat: Remove rear outer side cover.

3. Remove the belt fixing from the seat.
4. Pull the belt out of the strap guide cover.

To fit

1. Thread the belt into the strap guide cover.







2. Fit the belt to the seat.

Tightening torque: 47 Nm (35 ft. lbs.)

3. Electric seat: Fit the outer side cover.
Manual seat: Fit the outer side cover.

4. Fit the strap guide cover.
