Motor, Height Adjustment, Electrically Operated Seat (357c), 4D/5D

Motor, Height Adjustment, Electrically Operated Seat (357c), 4D/5D

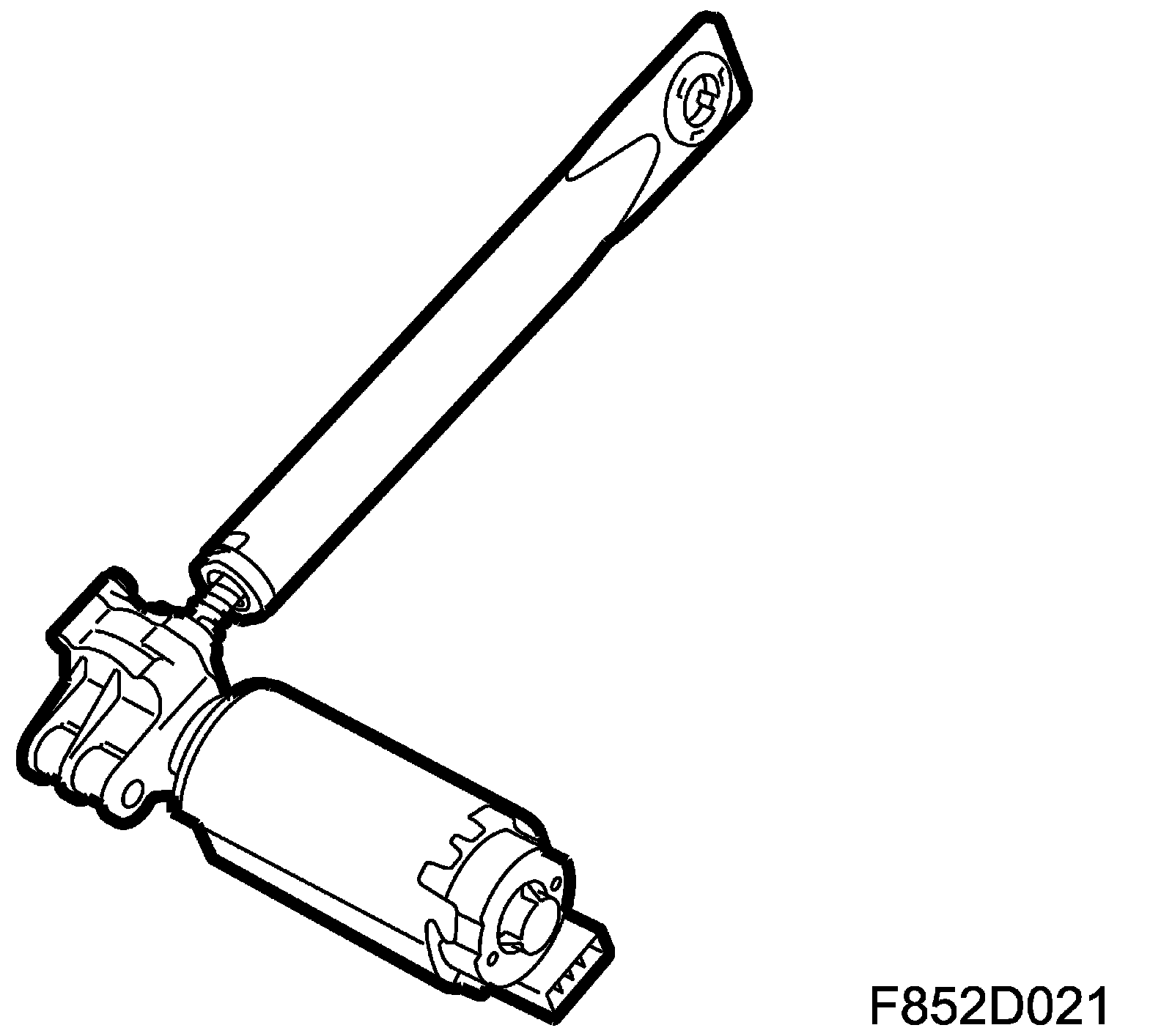

Location







Main task

To raise or lower the seat.

Type

DC motor that via a gear drives the mechanism that raises and lowers the seat frame.

Connect

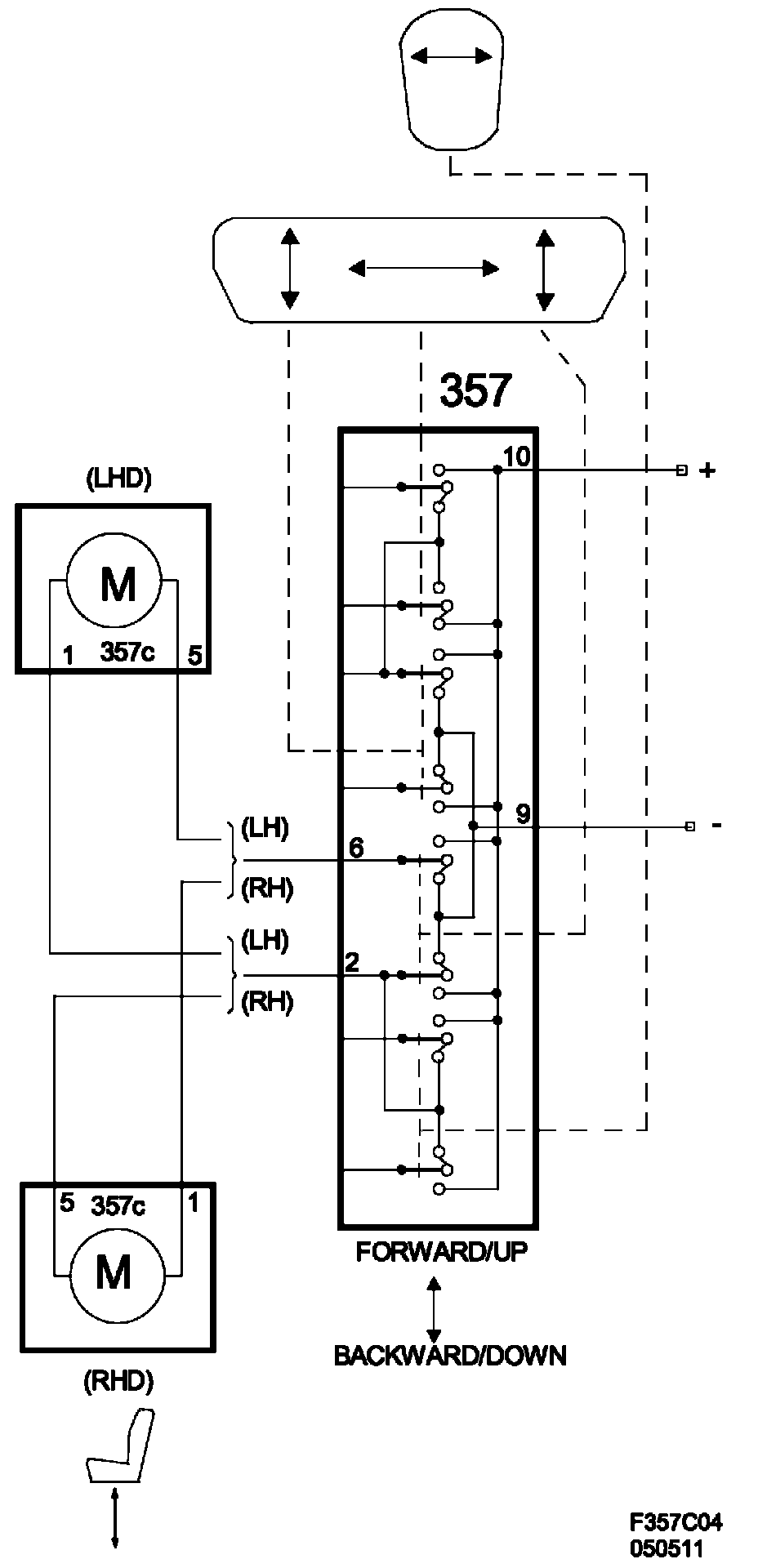

The motor is connected to the switch unit pins 6 and 2. Depending on the switch's position, the motor is voltage fed and ground via the switch unit. The polarity of the outputs are reversed to change the motor's direction of rotation.
