Motor, Height Adjustment, Electrically Operated Driver's Seat With Memory (357Dc)

Motor, Height Adjustment, Electrically Operated Driver's Seat With Memory (357Dc)

Location

4D/5D







CV







Main task

To raise or lower the seat.

Type

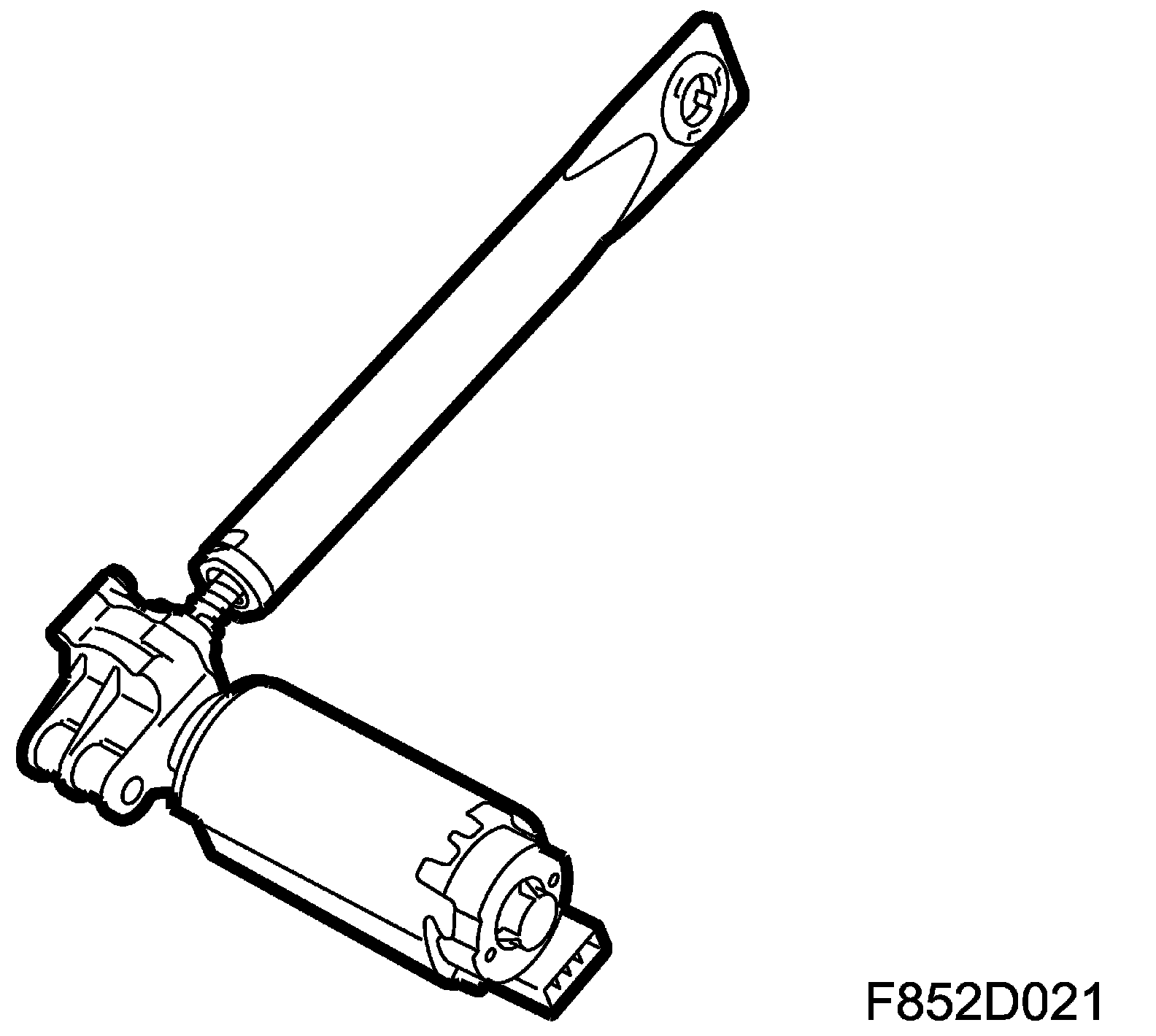

DC motor that via a gear drives the mechanism that raises and lowers the seat frame.

Connect

The motor is connected to the seat control module (357Dk) pin 60 and 62. The information on the required seat height adjustment comes from the switch (357D) to the control module. The control module uses the information from the switch to supply power to and ground the motor. The outputs are pole-reversed to change the direction of rotation of the motor.

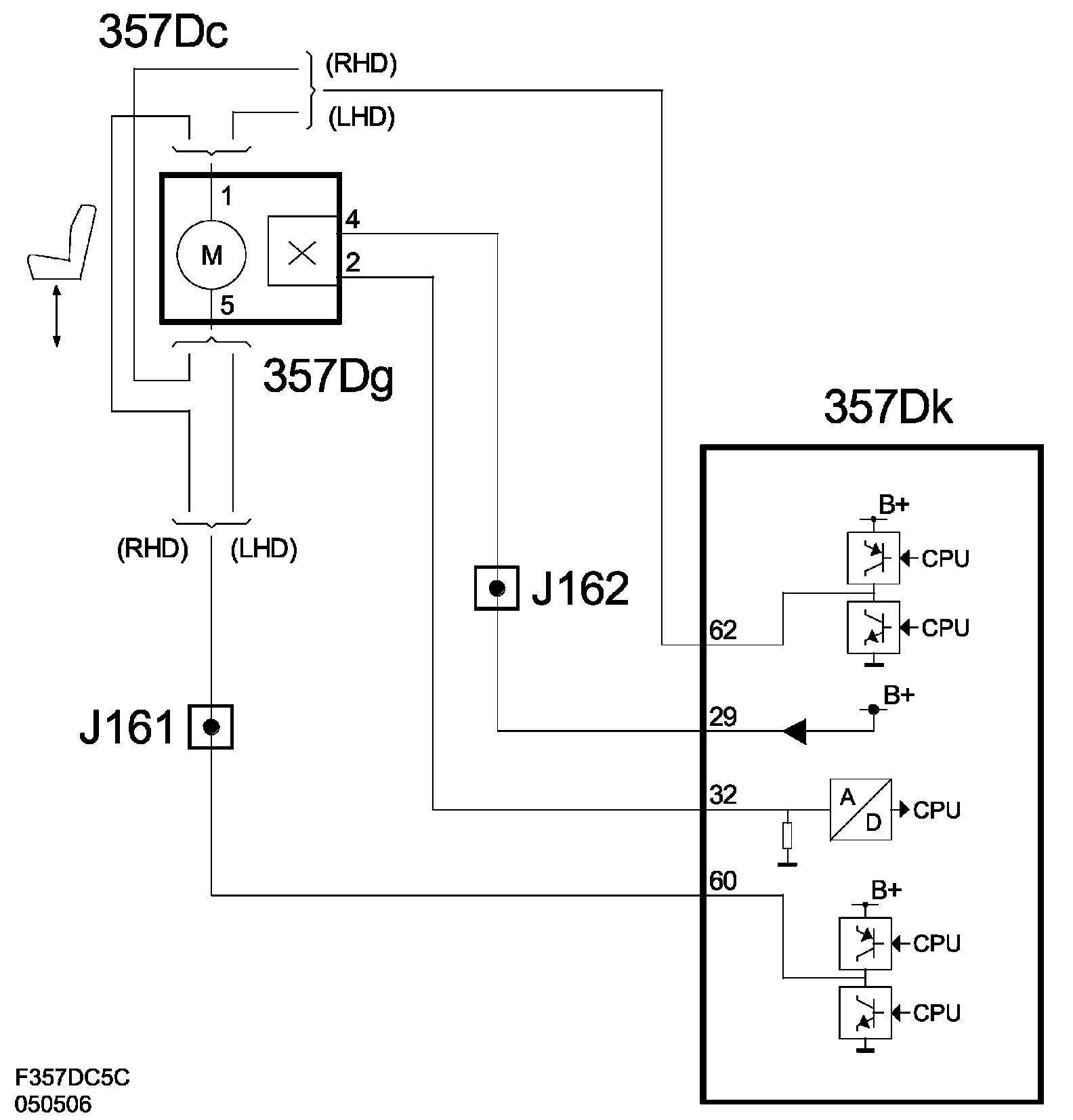

Diagram 4D/5D







Diagram CV
