Pinout Values and Diagnostic Parameters

Measurement Value, Control Module Connections, Seat Control Module (357k/Dk)

The following pages contain instructions and readings for testing the control module.

Remember:
^ Observe the test criteria. Use common sense when assessing the test results.
^ The specified test readings are with the ignition ON, unless otherwise stated.
^ Check these points:
^ First check that the control module is supplied with current and is grounded.
^ Then check all sensor inputs and signals from other systems.
^ Finally, check the control module outputs. Remember that the test readings do not indicate whether the actuator is working.

^ If any reading is not OK, consult the wiring diagram to trace the leads, connectors or components which should be checked more thoroughly.
^ The test readings given apply to a calibrated Fluke 88/97.
^ The test readings show the signal pulse condition or pulse length. A test instrument with pulse rate or width measurement must be used.

NOTE: All units on the I and P-buses send signals.

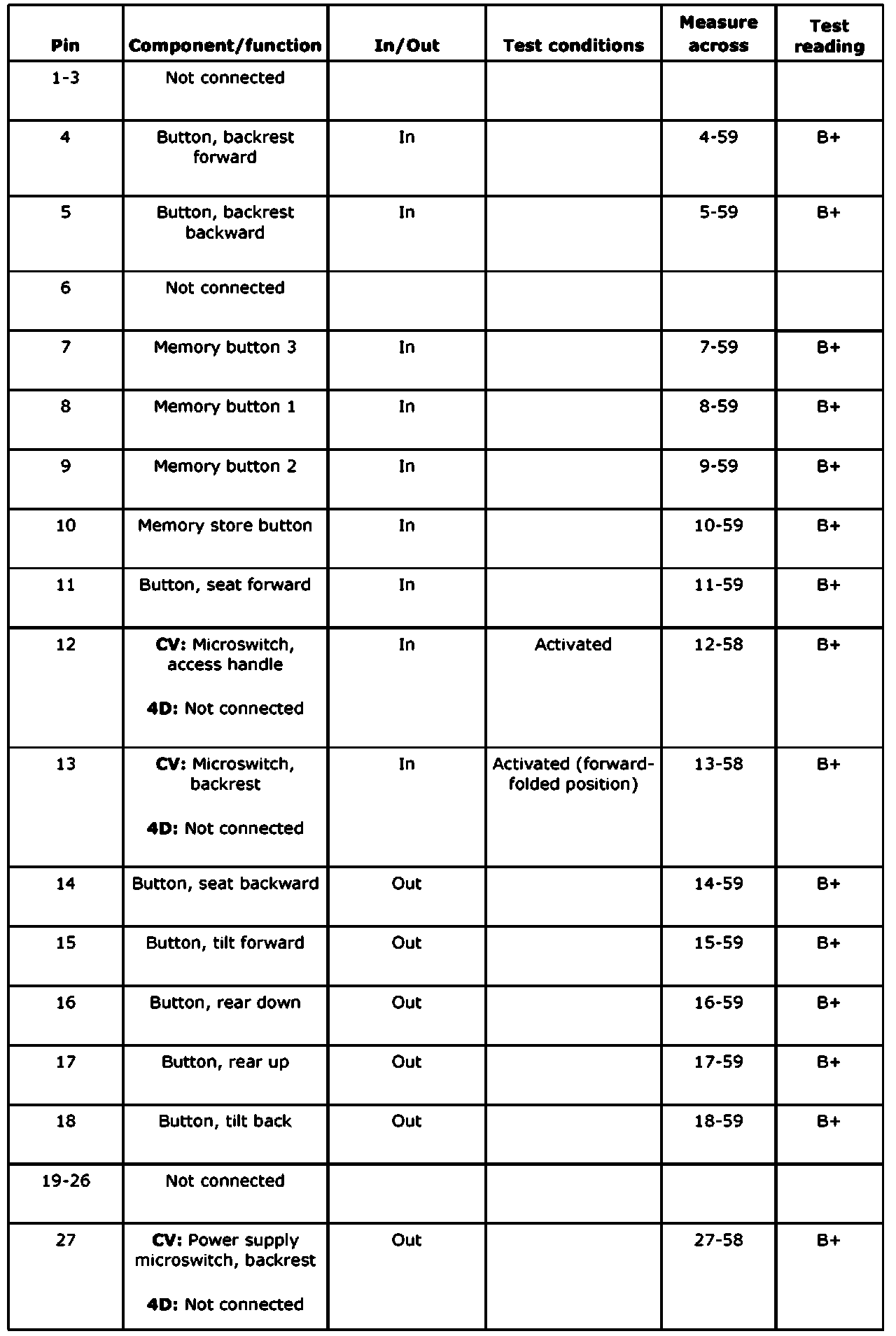

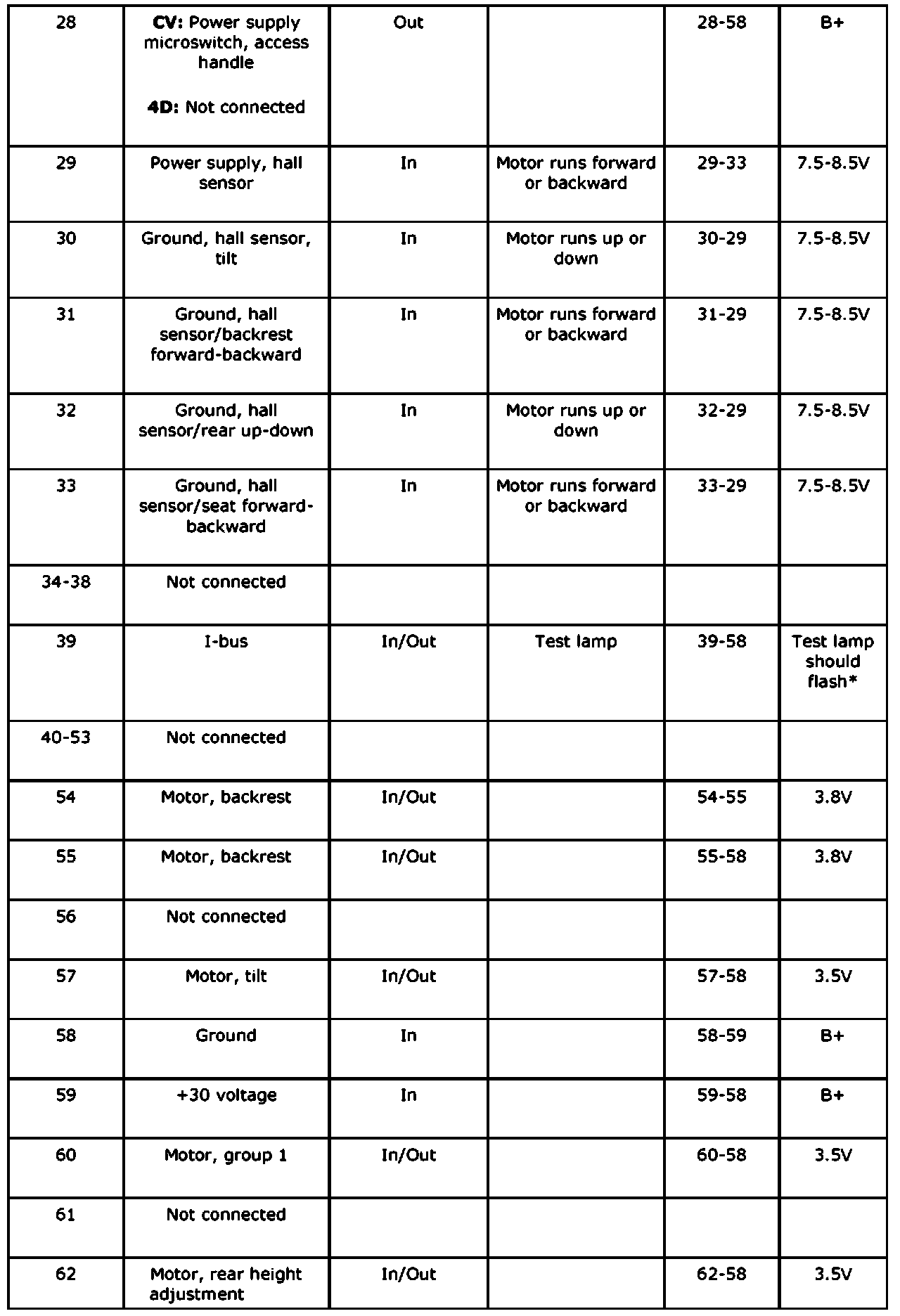

64-pin connector

Number of connector pins 64
