Description and Operation
>>
Bus Messages, Seats (DSM)
Bus Messages, Seats (DSM)
Bus Messages, Seats (DSM)
For a detailed description of the car's bus system, read bus and diagnostics communication, detailed description.

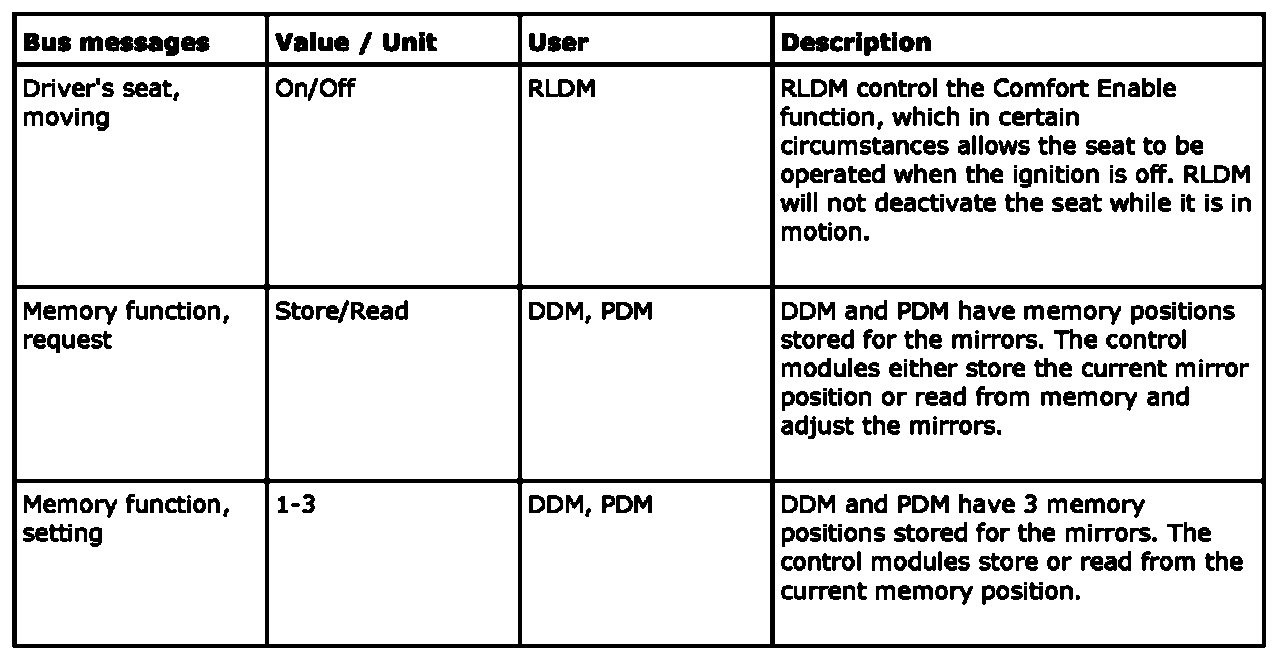

DSM uses the following information

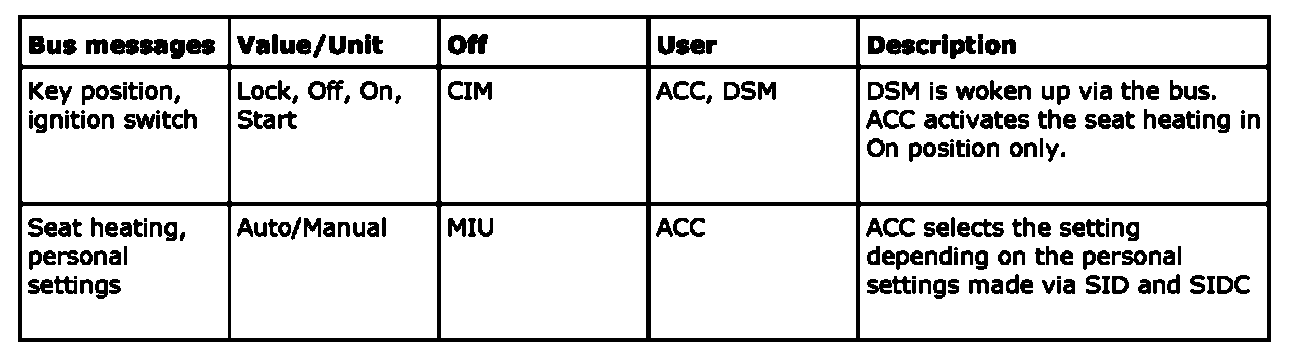

DSM sends the following information
