Crimp J162, Seat Harness



Location: Approx. 65 mm from branching point motor 375b towards seat switch

Electrically adjustable seat with memory CV

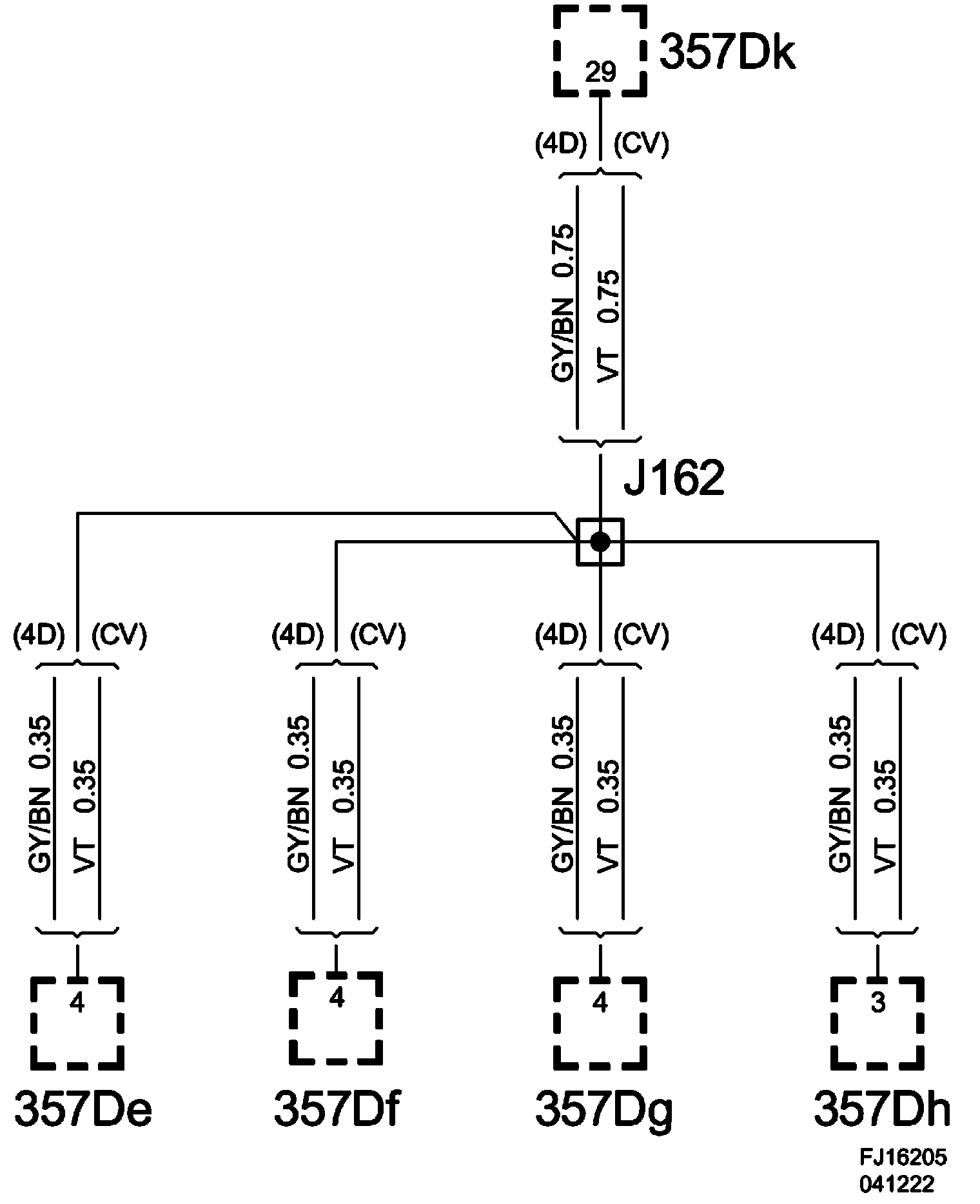

Crimp J162, Seat Harness - Electrically Adjustable Seat With Memory Function CV:

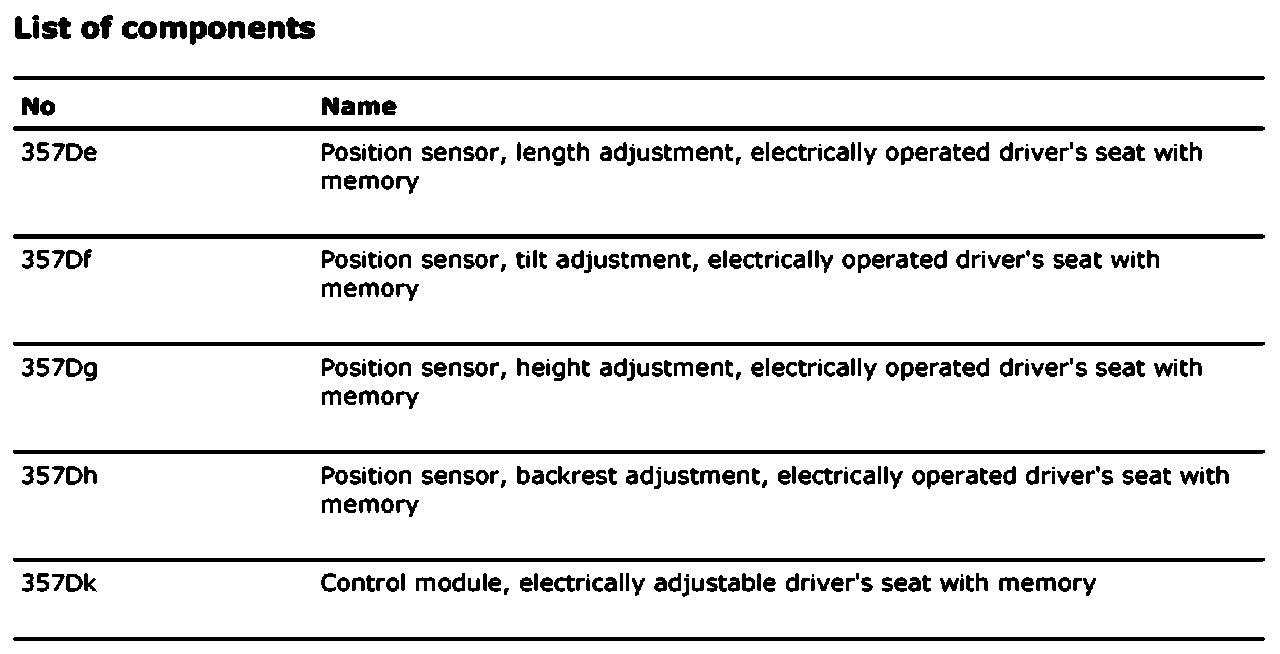

List Of Components:
