Crimp J141, Main Wiring Harness 4D



Location: Approx. 330 mm from branching point connector H10-6 towards the luggage compartment electrical centre

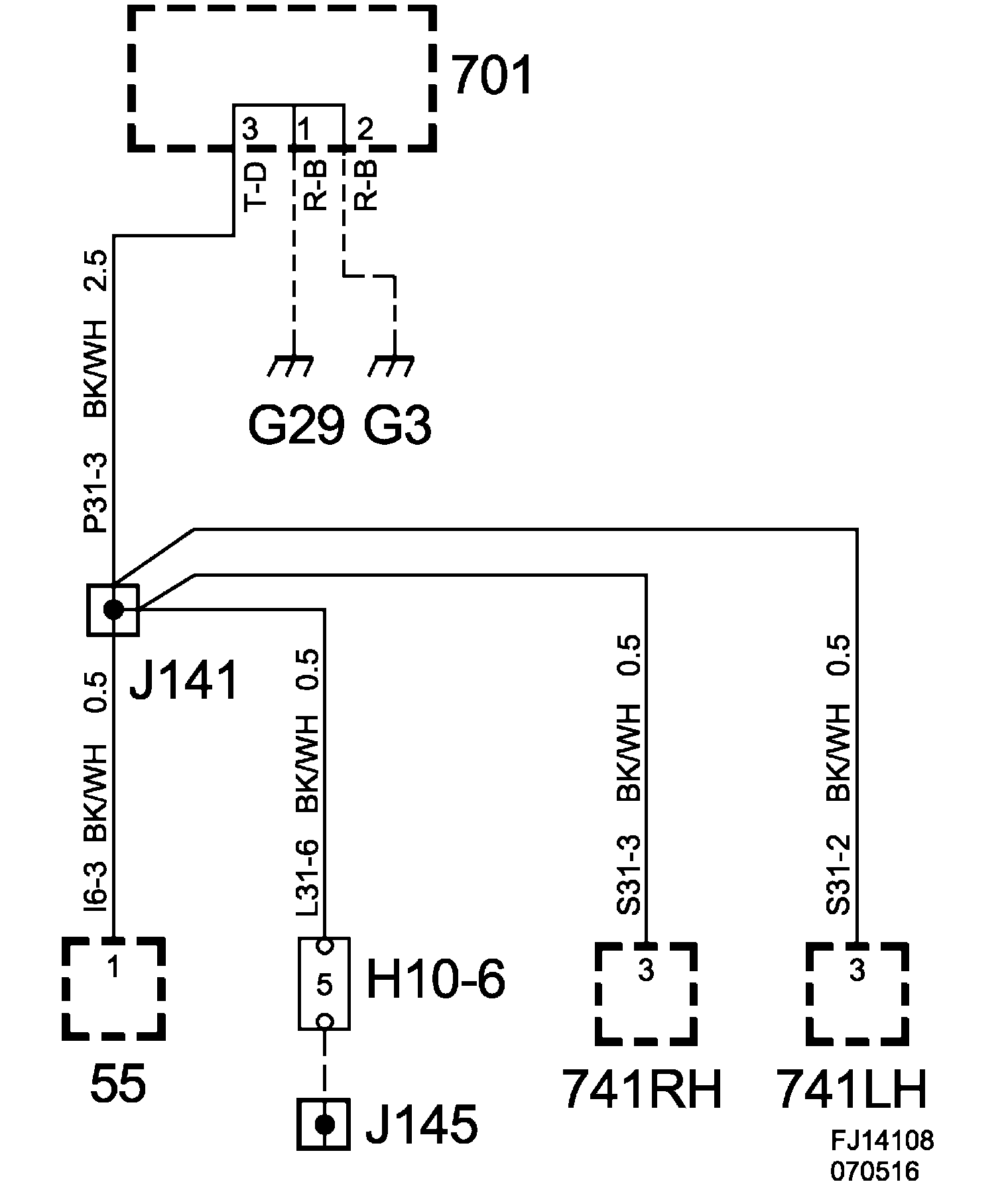

Crimp J141, Main Wiring Harness 4D:

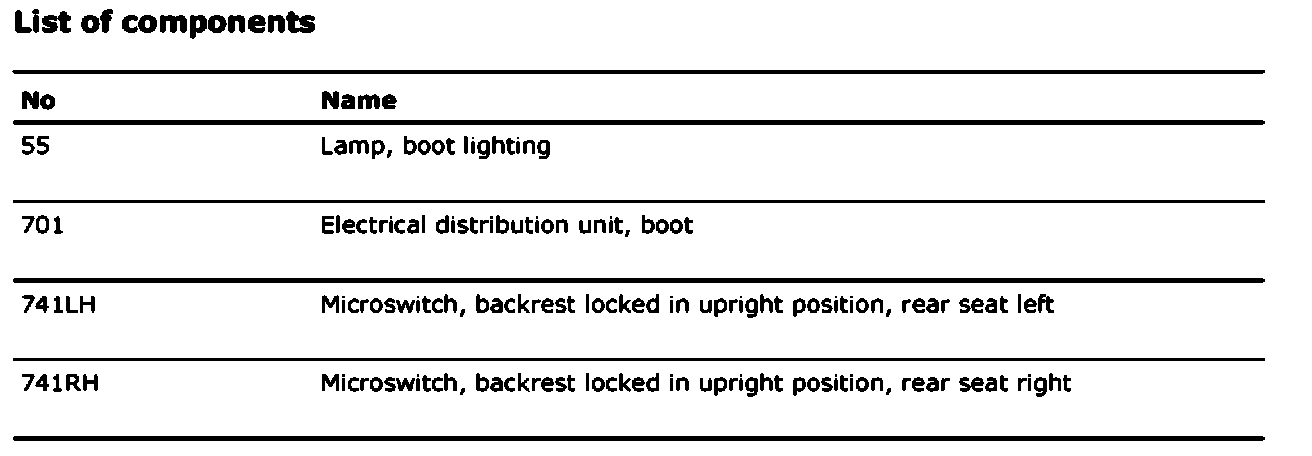

List Of Components:
